W25N01GWZEIG

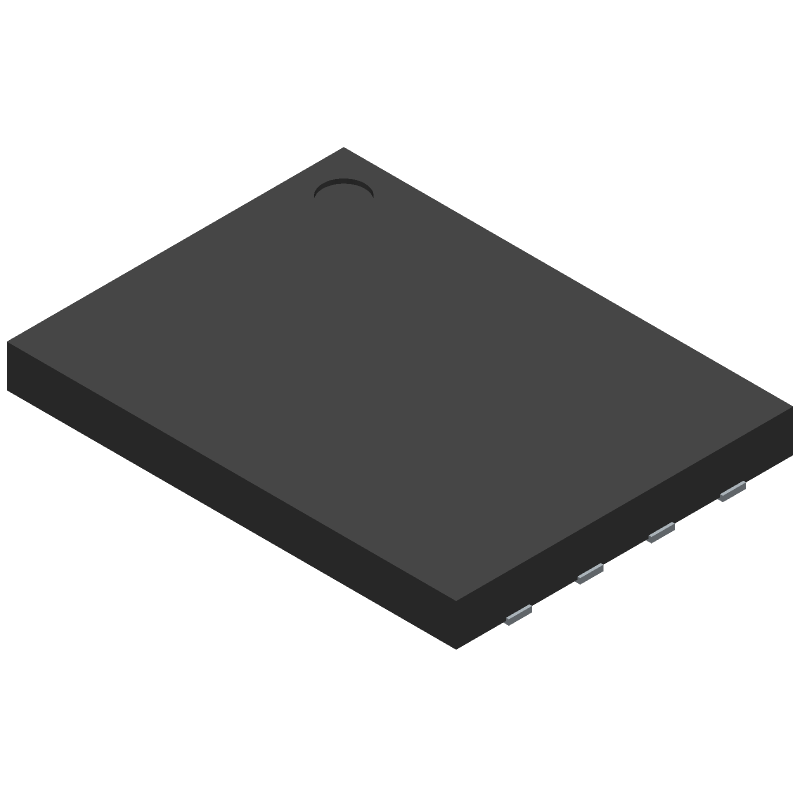

Flash, 128MX8, PDSO8, WSON-8
Similar Components
W25Q32JVSSIQ
3.3V Serial Flash Memory IC, 4M x 8 bits (32M-bit) capacity, operating at up to 133MHz. Features an industrial temperature range of -40°C to 85°C and is housed in an 8-terminal SOIC package (PDSO8, S-PDSO-G8) with a body width and length of 5.28mm. Ideal for embedded systems requiring reliable, high-speed non-volatile storage.
W25Q64JVSSIQ
64Mb Serial Flash memory IC, operating at up to 133MHz. Features a 2.7V to 3.6V supply voltage range with a nominal 3V. Housed in an 8-terminal SOIC package with a JEDEC S-PDSO-G8 code. Designed for industrial temperature ranges from -40°C to 85°C.
W25Q80EWZPIG
Flash, 8MX1, PDSO8, WSON-8
W25Q64JVZPIQ TR
The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. The W25Q64JV supports the standard Serial Peripheral Interface (SPI), and high performance Dual/Quad output SPI using SPI pins: Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 133MHz are supported allowing equivalent clock rates of 266MHz for Dual I/O and 532MHz for Quad I/O.
W25Q256JVEIQ
High-performance serial flash memory IC, 32M x 8 configuration, operating at a maximum clock frequency of 133 MHz. Features industrial temperature grade (-40°C to 85°C) and a supply voltage range of 2.7V to 3.6V. Housed in a compact 8-terminal PDSO8 package (JEDEC R-PDSO-N8) with dual terminal positioning.
W25Q64
The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. The W25Q64JV supports the standard Serial Peripheral Interface (SPI), and high performance Dual/Quad output SPI using SPI pins: Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 133MHz are supported allowing equivalent clock rates of 266MHz for Dual I/O and 532MHz for Quad I/O.
About W25N01GWZEIG
The Winbond W25N01GWZEIG Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Flash, 128MX8, PDSO8, WSON-8. Key parameters include Clock Frequency-Max (fCLK): 104, JEDEC Package Code: R-PDSO-N8, Length: 8, Max Operating Temperature: 85, and Memory IC Type: FLASH. W25N01GWZEIG is manufactured by Winbond as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Winbond
- Category
- Semiconductors
Ask AI Assistant
Ask questions about W25N01GWZEIG specifications
Click to ask a quick question:
Parameters
| Clock Frequency-Max (fCLK) | 104 |
| JEDEC Package Code | R-PDSO-N8 |
| Length | 8 |
| Max Operating Temperature | 85 |
| Memory IC Type | FLASH |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Number of Words | 134217728 |
| Number of Words Code | 128000000 |
| Parallel/Serial | SERIAL |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 1.95 |
| Supply Voltage-Min (Vsup) | 1.7 |
| Supply Voltage-Nom (Vsup) | 1.8 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Width | 6 |
