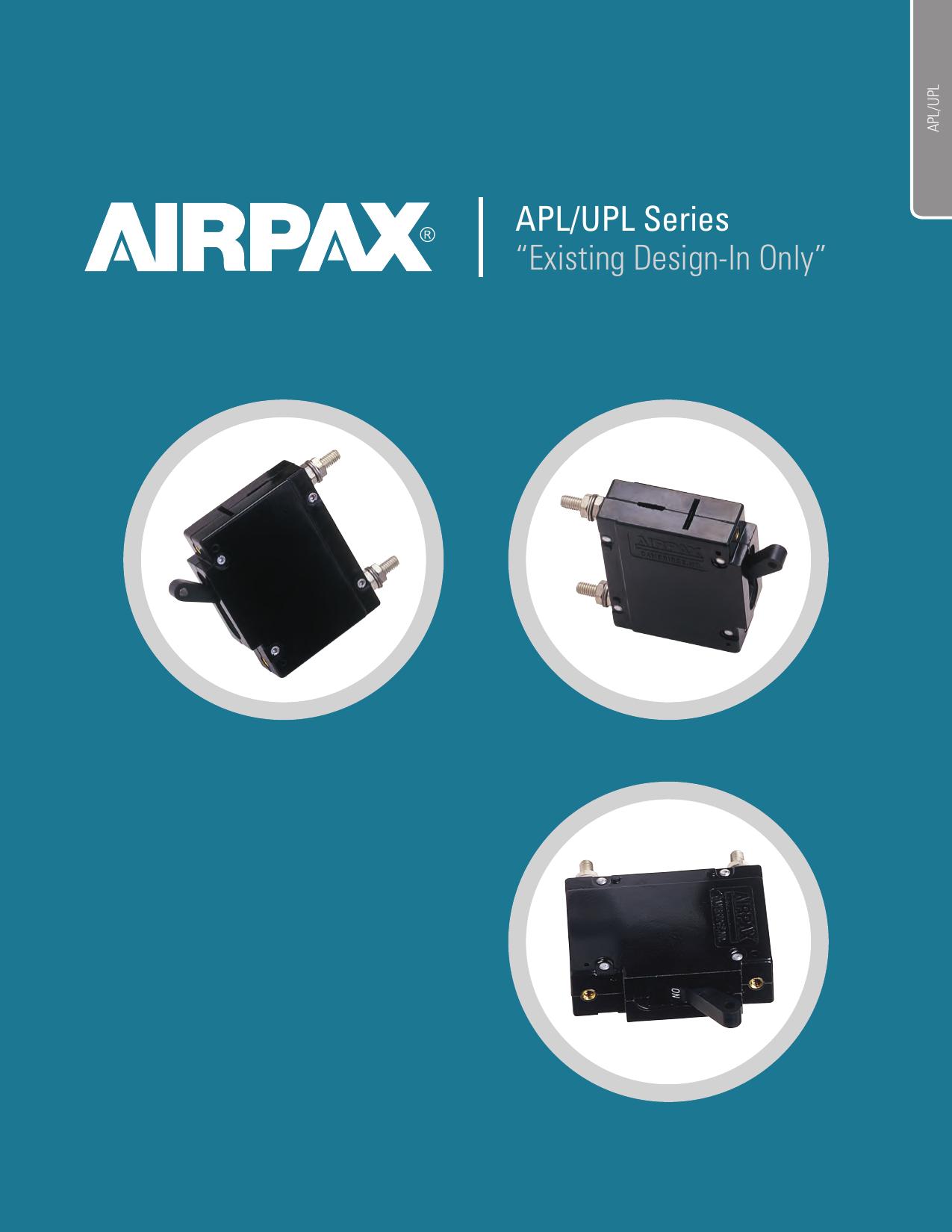

UPL11-3-53-153
2-Pole Hydraulic Magnetic Switch, 15A, 10s-100s Trip Time, -40°C to 85°C
Similar Components
AP1-1-51-202
Hydraulic Magnetic Switch, 240VAC, 2A, 0.06s to 0.6s Trip Time, Panel Mount
7854-37-25-I
Circuit Breaker Thermal 25A 120VAC
209-2-1REC4-52-2-8-50
Circuit Breaker Hydraulic Magnetic 2Pole 50A 125VDC
JTMP-6-1REC4-52-1-F1-1200
Circuit Breaker Magnetic 6Pole 1200A 65VDC
APG1-1-62-802-01
Circuit Breaker Magnetic 1Pole 8A
R10-S-SW-B187EV
Circuit Breaker Magnetic 1Pole
About UPL11-3-53-153
The Sensata UPL11-3-53-153 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2-Pole Hydraulic Magnetic Switch, 15A, 10s-100s Trip Time, -40°C to 85°C. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 15. UPL11-3-53-153 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPL11-3-53-153 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 15 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Trip Time | 10s to 100s |
| Type | Hydraulic Magnetic |
