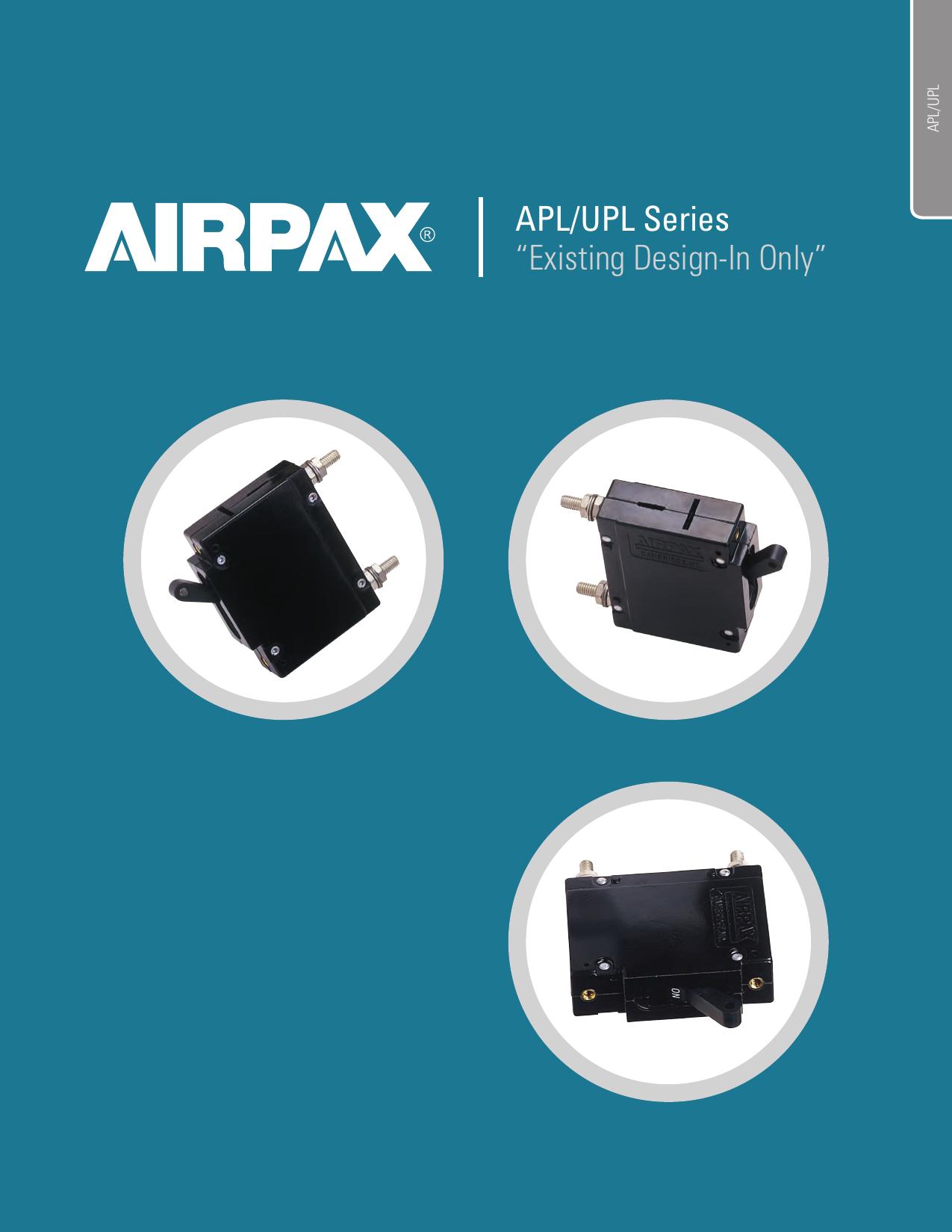

UPL11-1REC4-61-303
Hydraulic Magnetic Relay, 2-Pole, 30A, 0.18s to 1.8s Trip Time, -40 to 85°C
Similar Components
JLE-1-1-52-3-F1-125
Hydraulic Magnetic Relay, 160VDC, 125A, 2s-15s Trip Time, Toggle Actuator
229-4-1-62-5-9-80-H-V
Hydraulic Magnetic Relay 480VAC 80A 4-Pole Panel Mount
UPL11-1-72-703
Circuit Breaker Magnetic 2Pole 70A
AP12-1RC-72F-103
Hydraulic Magnetic Relay, 240VAC, 10A, 0.5s-9s Trip Time, Panel Mount
UPGH666-1-72-503-01
Circuit Breaker Magnetic 3Pole 50A
APL11-1RE-62-752-MA
Circuit Breaker Magnetic 2Pole 7.5A
About UPL11-1REC4-61-303
The Sensata UPL11-1REC4-61-303 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Hydraulic Magnetic Relay, 2-Pole, 30A, 0.18s to 1.8s Trip Time, -40 to 85°C. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 30. UPL11-1REC4-61-303 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPL11-1REC4-61-303 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 30 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Trip Time | 0.18s to 1.8s |
| Type | Hydraulic Magnetic |
