UPL11-1REC4-42-503
2-Pole Hydraulic Magnetic Relay, 50A, 2s-22s Trip Time, Panel Mount
Similar Components
AP1-1-69-302
Circuit Breaker Hydraulic Magnetic 1Pole 3A 240VAC
AP117-1R-72F-103
Circuit Breaker Hydraulic Magnetic 3Pole 10A 120VAC/50VDC
205-111-1REC4-62-5-501-AM
Circuit Breaker Magnetic 3Pole 0.5A 277VAC/480VAC
PSA-15
Circuit Breaker Thermal 15A 30VDC
219-3-1-66-4-7-60
Hydraulic Magnetic Circuit Breaker, 240VAC, 60A, 20s to 200s Trip Time, Panel Mount
205-11-1-52-1-302-A
Circuit Breaker Magnetic 2Pole 32VDC
About UPL11-1REC4-42-503

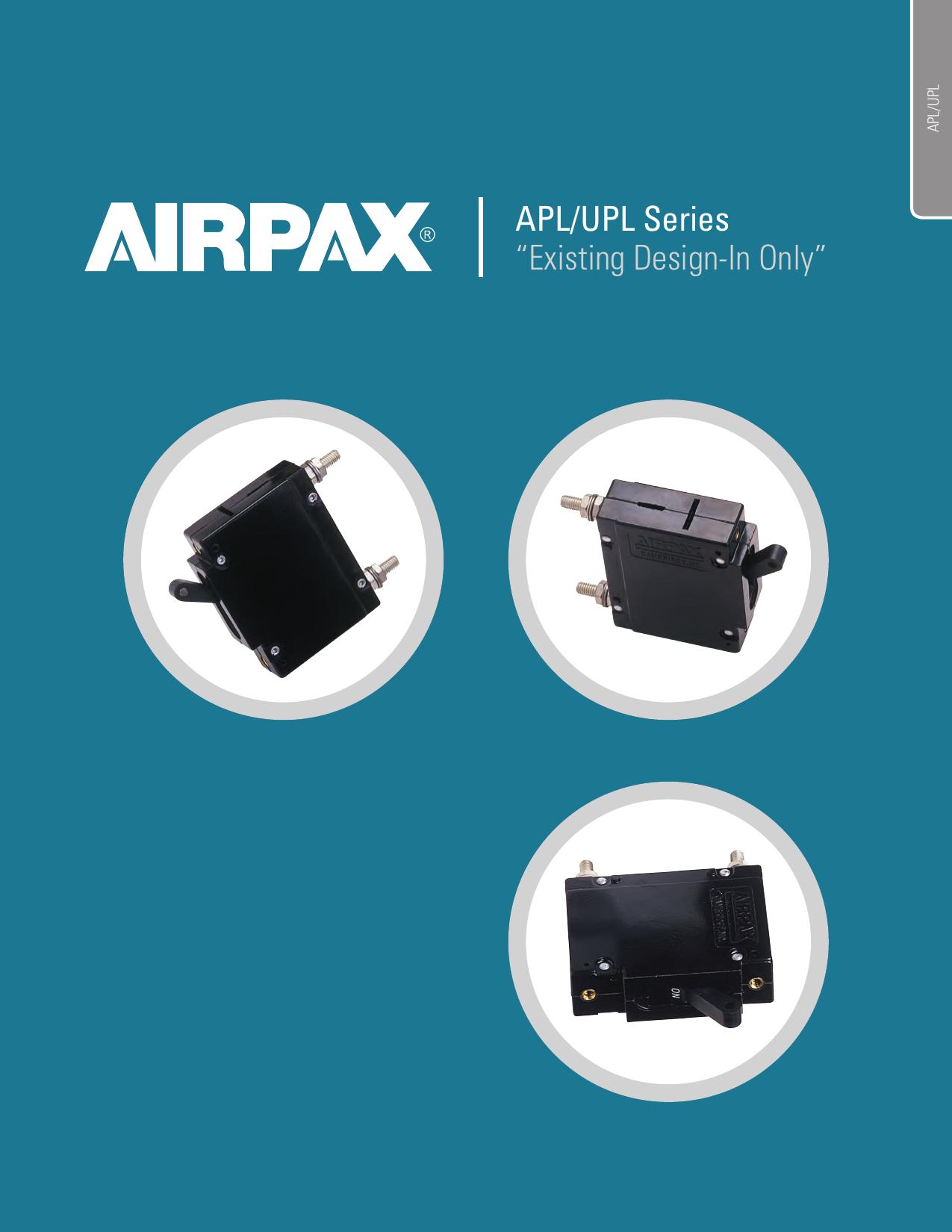

The Sensata UPL11-1REC4-42-503 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2-Pole Hydraulic Magnetic Relay, 50A, 2s-22s Trip Time, Panel Mount. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 50. UPL11-1REC4-42-503 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPL11-1REC4-42-503 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 50 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Trip Time | 2s to 22s |
| Type | Hydraulic Magnetic |
