UPL11-1-42-203
Hydraulic Magnetic Switch 2-Pole 20A Panel Mount -40 to 85°C
Similar Components
7851-26-30
Circuit Breaker Thermal 30A 120VAC
AP112-1RC-60-601
240VAC 0.6A Hydraulic Magnetic Switch, 3-Pole, Handle Actuator
209-3-1REC4-41-4-8-50
Circuit Breaker Magnetic 3Pole 50A 240VAC
JTEP-6-1REC4-53-1-F1-1200
Hydraulic Magnetic Relay, 6-Pole, 65VDC, 1200A, Panel Mount
219-2-1-64-5-8-15
Hydraulic Magnetic Circuit Breaker, 2-Pole, 480VAC, 15A, Panel Mount
JAE-2-1-62-5-F1-125
Circuit Breaker Magnetic 2Pole 125A 240VAC
About UPL11-1-42-203

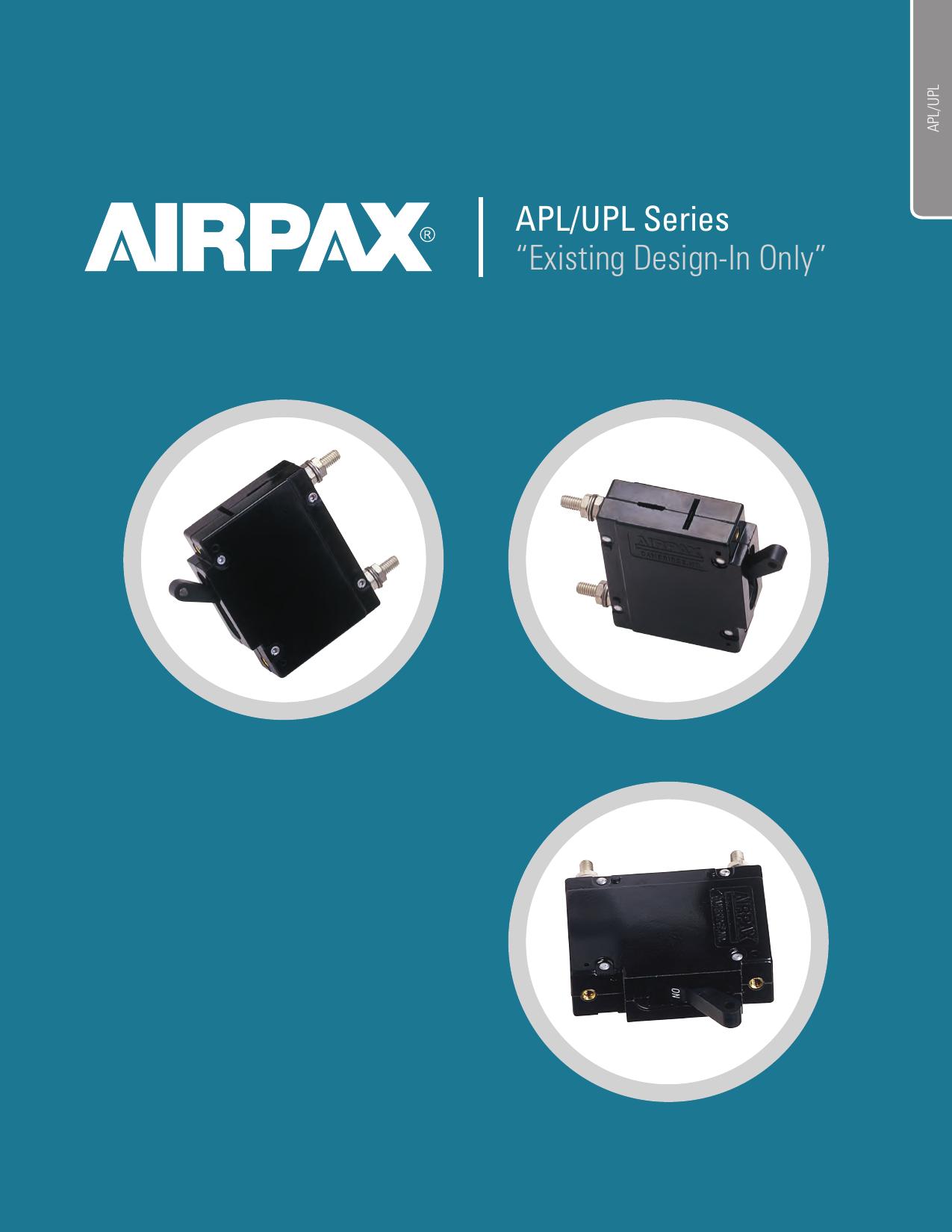

The Sensata UPL11-1-42-203 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Hydraulic Magnetic Switch 2-Pole 20A Panel Mount -40 to 85°C. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 20. UPL11-1-42-203 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPL11-1-42-203 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 20 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Trip Time | 2s to 22s |
| Type | Hydraulic Magnetic |
