UPGN66-1-53-253-M
Circuit Breaker Magnetic 2Pole 25A
Similar Components
219-3-1REC5-65-5-7-60-AH-V
Hydraulic Magnetic Circuit Breaker 480VAC 60A 2-18s Trip Time Panel Mount
6766-19-135
Circuit Breaker Thermal 135A 30VDC
219-3-1-66F-5-2-50-V
Circuit Breaker Magnetic 3Pole 50A 480VAC
7854-15-40-I
Circuit Breaker Thermal 40A 120VAC
205-111-1REC4-41-4A-253M
Circuit Breaker Magnetic 3Pole 250VAC
209-2-1-63-3-8-20
Circuit Breaker Hydraulic Magnetic 2Pole 20A 120VAC/240VAC
About UPGN66-1-53-253-M

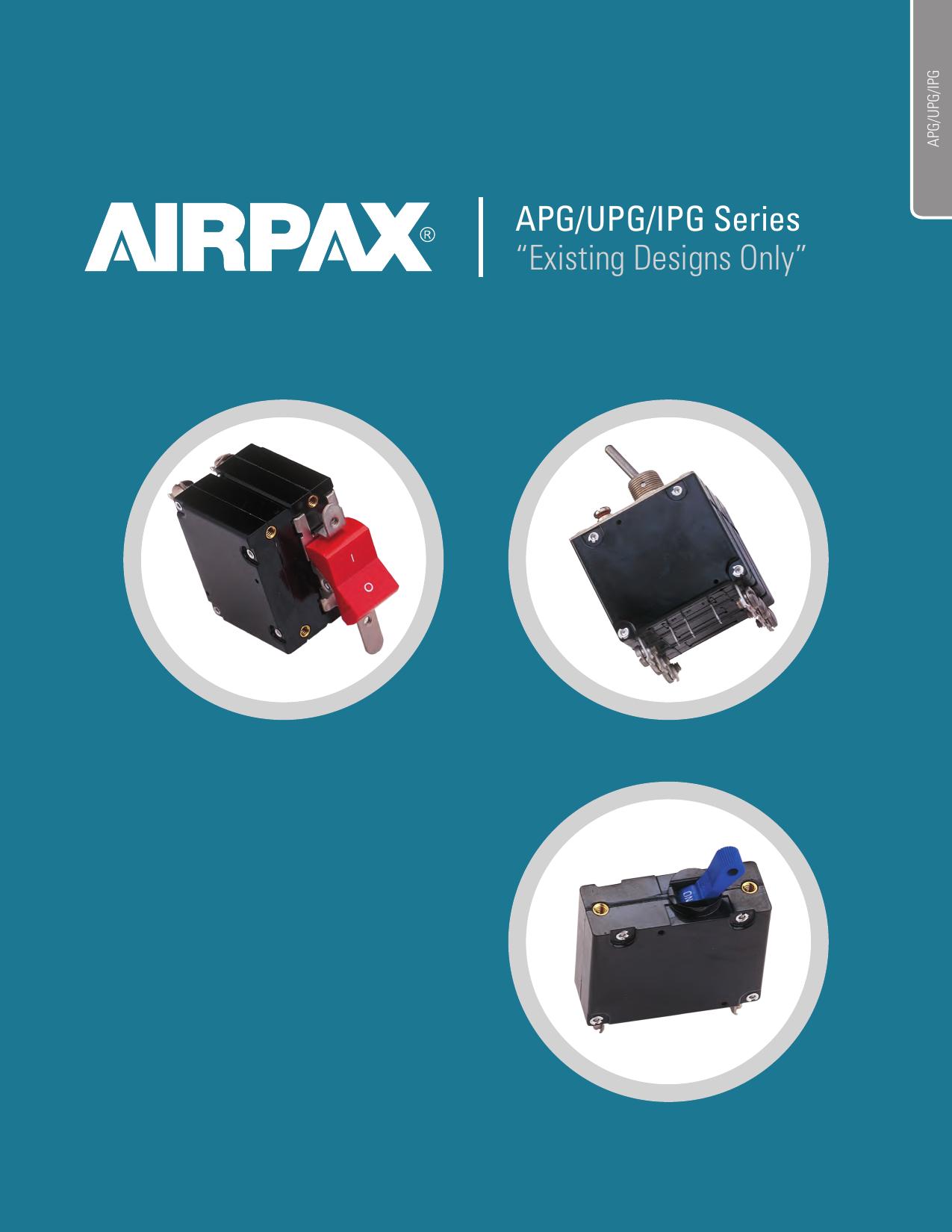

The Sensata UPGN66-1-53-253-M Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Magnetic 2Pole 25A. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 25. UPGN66-1-53-253-M is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPGN66-1-53-253-M specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 25 |
| ECCN | EAR99 |
| EU RoHS | Yes with Exemption |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Terminal Design | Screw |
| Trip Time | 15s to 150s |
| Type | Magnetic |
