UPGH666-1-66F-163-A-01
Circuit Breaker Magnetic 3Pole 16A
Similar Components
UPL1-5-69-302-M
Circuit Breaker Magnetic 1Pole
7851-13-25
Circuit Breaker Thermal 25A 120VAC
UPL1-1-51-302
Circuit Breaker Magnetic 1Pole
AP12-1-65F-152
Hydraulic Magnetic Circuit Breaker, 240VAC, 1.5A, 4-Terminal Panel Mount
AP1-1R-72-102
240VAC Hydraulic Magnetic Switch, 1 Pole, 1A, 0.5-9s Trip Time, -40 to 100°C
UPL1-1REC4-52-602
Circuit Breaker Magnetic 1Pole
About UPGH666-1-66F-163-A-01

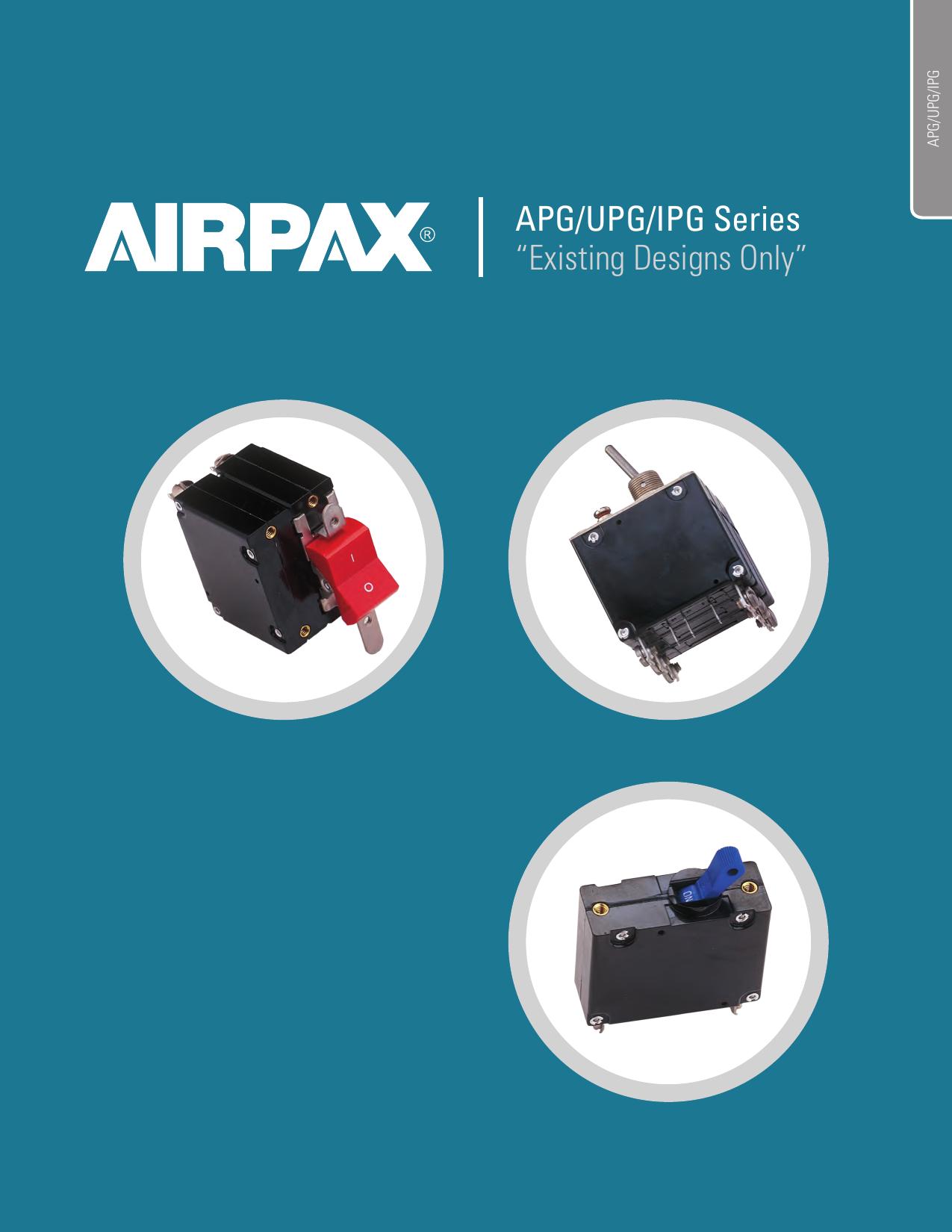

The Sensata UPGH666-1-66F-163-A-01 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Magnetic 3Pole 16A. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 16. UPGH666-1-66F-163-A-01 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPGH666-1-66F-163-A-01 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 16 |
| ECCN | EAR99 |
| EU RoHS | Yes with Exemption |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 3 |
| Number of Terminals | 6 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Terminal Design | Screw |
| Trip Time | 10s to 150s |
| Type | Hydraulic Magnetic |
