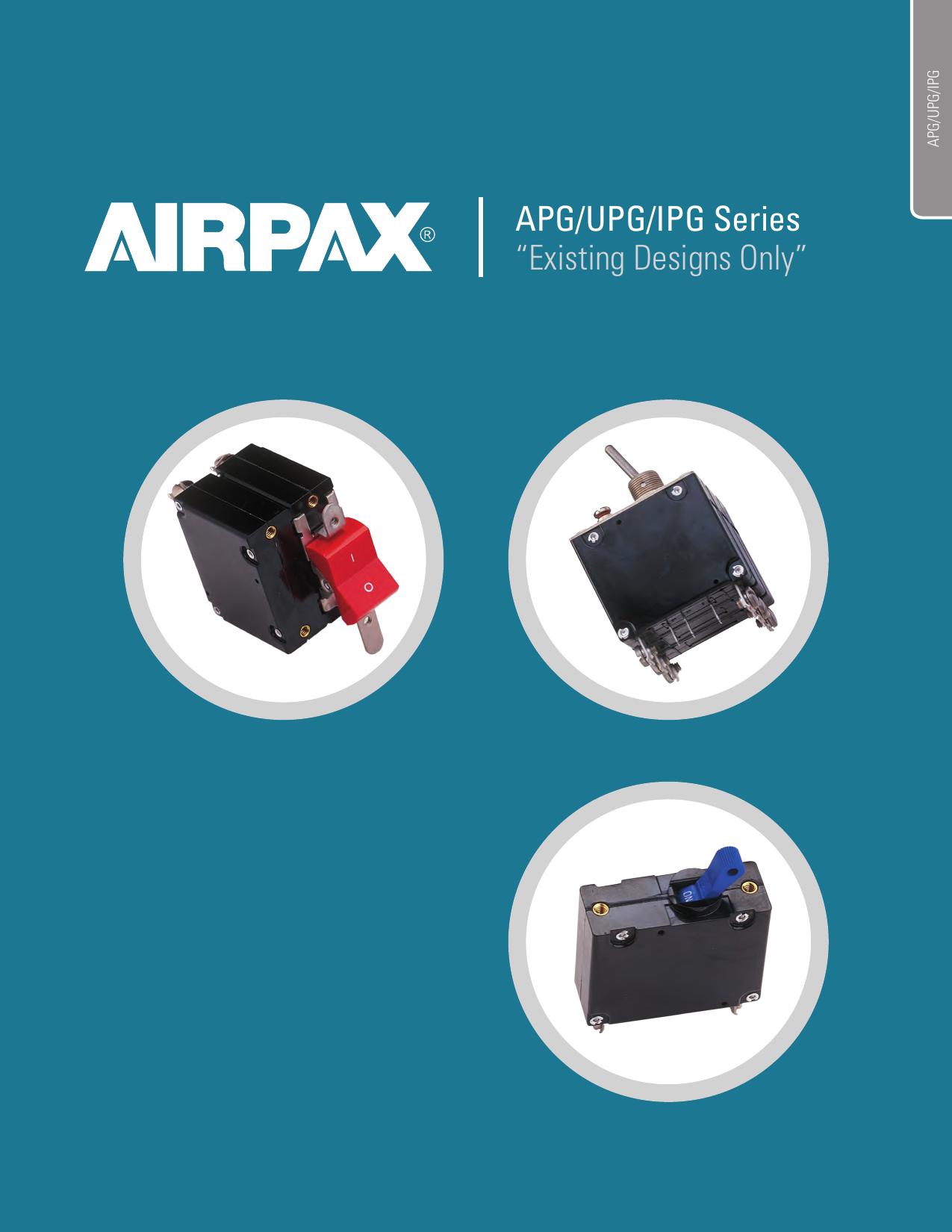

UPGH666-1-61-253-01
3-Pole Magnetic Switch, Screw Mount, 25A, -40 to 85°C
Similar Components
209-2-1-63-3-9-75
Hydraulic Magnetic 240VAC 75A Toggle Switch, 4-Terminal Panel Mount
UPL11-1REC5-62-102-CH
Hydraulic Magnetic Relay, 2-Pole, 1A, 2s-22s Trip Time, -40 to 85°C
PDM-5
Circuit Breaker Thermal 5A 120VAC
APL1-1-42F-252
Hydraulic Magnetic Switch, 2.5A, 2s-22s Trip Time, Panel Mount
205-1-1-65-3-302-O
Circuit Breaker Magnetic 1Pole 120VAC
CDA-5-I
Circuit Breaker Thermal 5A 120VAC
About UPGH666-1-61-253-01
The Sensata UPGH666-1-61-253-01 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 3-Pole Magnetic Switch, Screw Mount, 25A, -40 to 85°C. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 25. UPGH666-1-61-253-01 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about UPGH666-1-61-253-01 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 25 |
| ECCN | EAR99 |
| EU RoHS | Yes with Exemption |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Screw Mount |
| Number of Poles | 3 |
| Number of Terminals | 6 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Terminal Design | Screw |
| Trip Time | 0.13s to 3s |
| Type | Magnetic |
