U8031A

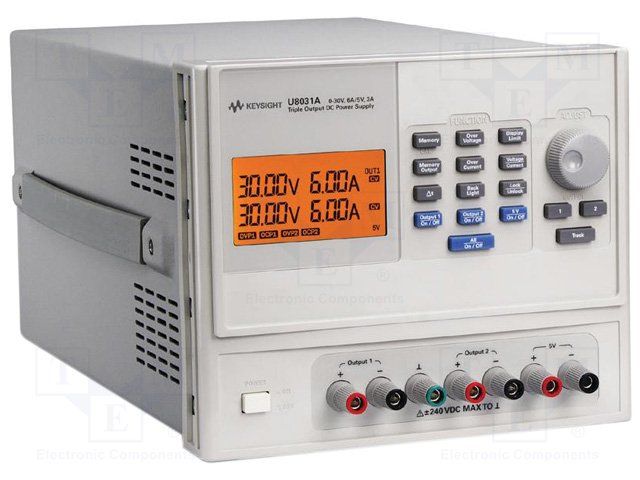

KEYSIGHT TECHNOLOGIES U8031A POWER SUPPLY, 3CH, 30V, 6A, ADJUSTABLE
Similar Components
6624A-230-902
KEYSIGHT TECHNOLOGIES 6624A-230-902 POWER SUPPLY, 4CH, 50V, 5A, ADJUSTABLE
34401A
KEYSIGHT TECHNOLOGIES 34401A MULTIMETER, BENCH, DIGITAL, 6.5 DIGIT
N2914A
MSO Upgrade Kit for MSO/DSO603xA Scopes
6573A-240-902
KEYSIGHT TECHNOLOGIES 6573A-240-902 POWER SUPPLY, 1CH, 35V, 60A, ADJUSTABLE
N2876A
Voltage Probe 100:1 1500 MHz, N2876A, Keysight
6544A-240-902
KEYSIGHT TECHNOLOGIES 6544A-240-902 POWER SUPPLY, 1CH, 60V, 3.5A, ADJUSTABLE
About U8031A
The Keysight Technologies U8031A Test Equipment datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: KEYSIGHT TECHNOLOGIES U8031A POWER SUPPLY, 3CH, 30V, 6A, ADJUSTABLE. Key parameters include Current - Output 3: 3A, Height: 179mm, Length: 379mm, Max Operating Temperature: 40°C, and Max Output Current: 6A. U8031A is manufactured by Keysight Technologies as part of their Test Equipment product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Keysight Technologies
- Category
- Test Equipment
Ask AI Assistant
Ask questions about U8031A specifications
Click to ask a quick question:
Parameters
| Current - Output 3 | 3A |
| Height | 179mm |
| Length | 379mm |
| Max Operating Temperature | 40°C |
| Max Output Current | 6A |
| Max Output Voltage | 30V |
| Max Supply Voltage (AC) | 230V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 5V |
| Min Supply Voltage (AC) | 100V |
| Number of Outputs | 3 |
| Operating Supply Voltage | 230V |
| Output Current | 6A |
| Output Power | 375W |
| Output Voltage | 30V |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Voltage - Output 3 | 5V |
| Weight | 8.2kg |
| Width | 212mm |
