TMP36
TMP36
Similar Components
TMP36GT9Z
Analog voltage output temperature sensor with a wide operating temperature range of -40°C to 125°C. Features a low supply current of 50µA and operates from a 2.7V to 5.5V supply. Housed in a T package with dimensions of 5.33mm height, 5.21mm length, and 4.19mm width. Supplied in trays of 100 units.
ADXL345BCCZ
Digital 3-axis accelerometer with selectable full-scale ranges of ±2 g, ±4 g, ±8 g, and ±16 g. Features a 3-axis output (X, Y, Z) and a digital interface. Operates within a supply voltage range of 2V to 3.6V with a nominal supply current of 140µA. Offers a sensitivity of 256 LSB/g and a -3dB bandwidth of 1.6kHz. Packaged in a 5mm x 3mm x 0.98mm LGA with gold contact plating.
ADXL345
The digital accelerometer measures three axes with selectable ±2 g, ±4 g, ±8 g, and ±16 g ranges. It provides up to 13-bit resolution with digital output over I2C or 3-wire/4-wire SPI interfaces. The device operates from a 2.0 V to 3.6 V supply and supports I/O supply operation down to 1.7 V. Integrated motion functions include tap detection, activity and inactivity detection, free-fall detection, and a 32-level FIFO. The sensor is supplied in a compact 14-terminal LGA package rated for -40 °C to +85 °C operation.
About TMP36

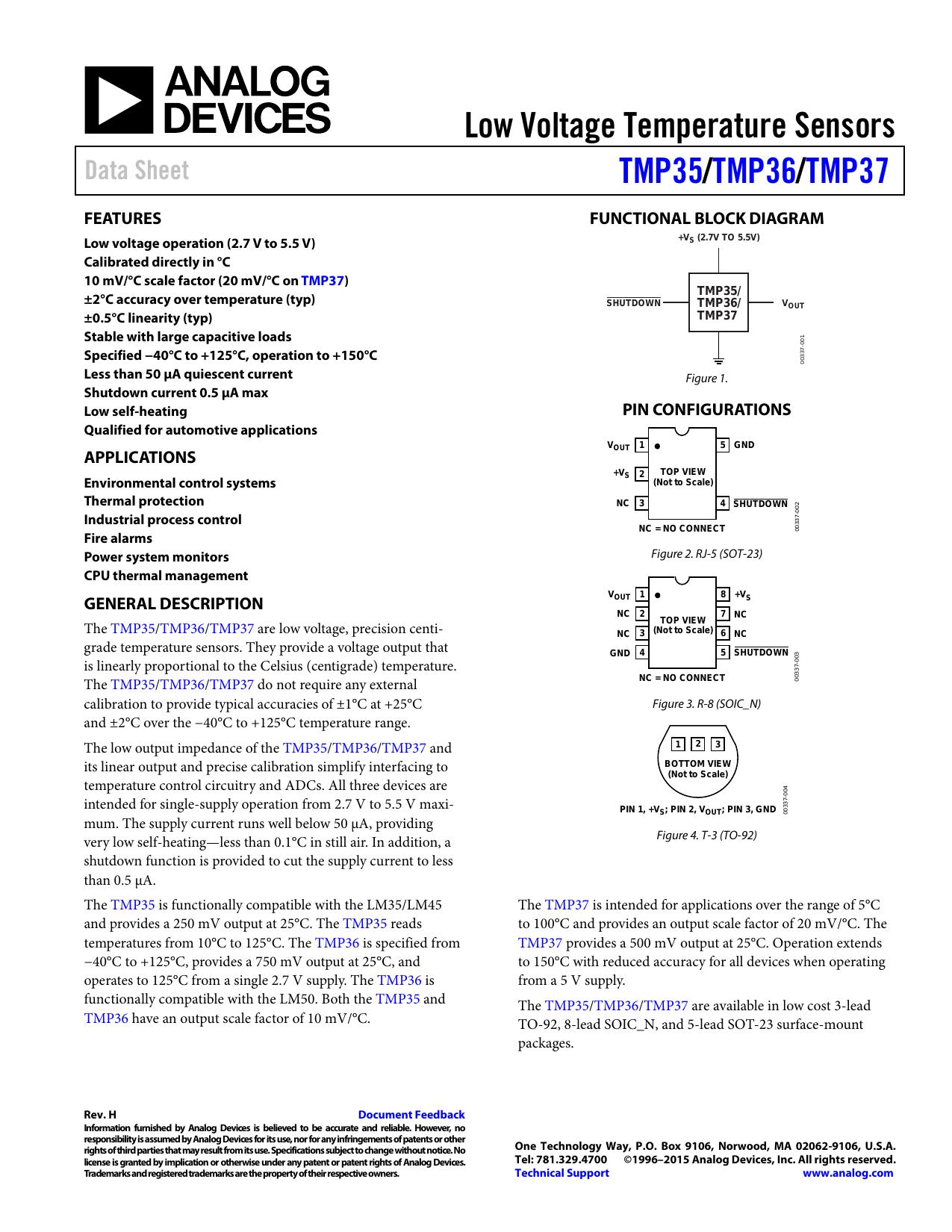

The Analog Devices TMP36 Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: TMP36. Key parameters include RoHS: Not Compliant. TMP36 is manufactured by Analog Devices as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Analog Devices
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about TMP36 specifications
Click to ask a quick question:
Parameters
| RoHS | Not Compliant |
