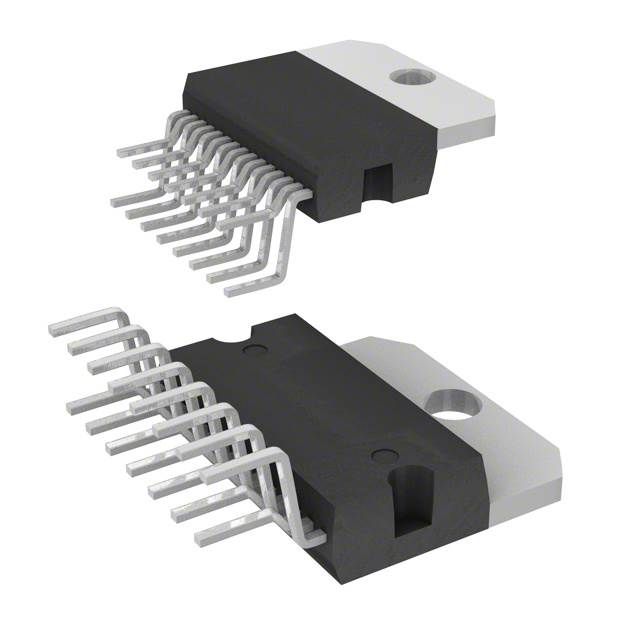

TDA7379
IC AMP CLASS AB DUAL/QUAD 38W
Similar Components
BC817-40
NPN bipolar junction transistor (BJT) for surface mount applications. Features a 45V collector-emitter breakdown voltage and a 500mA maximum collector current. Offers a minimum DC current gain (hFE) of 250 and a transition frequency of 100MHz. Operates within a temperature range of -65°C to 150°C with a maximum power dissipation of 250mW. Packaged in a TO-236-3 (SOT-23) case, supplied on tape and reel.
BTA16-800B
800V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, ISOLATED TO-220AB, 3 PIN
TDA7375
Dual SE or dual BTL output power amplifier with stand-by input and clip detection
L293B
Four-channel push-pull driver IC for brushed DC motors. Features a parallel interface and operates from a 4.5V to 36V supply voltage, with a typical operating voltage of 24V. Delivers up to 2A maximum output current per channel. Packaged in a DIP through-hole mount, measuring 20mm in length, 7.1mm in width, and 5.1mm in height. RoHS compliant and lead-free.
M24C02-WMN6TP
2 Kbit serial I²C bus EEPROM for surface mount applications. Features a 2-wire serial interface with a maximum frequency of 400kHz and an access time of 900ns. Operates with a supply voltage range of 2.5V to 5.5V, supporting 5V nominal operation. This RoHS compliant memory component is organized as 256 x 8 bits and includes write protection. Packaged in a compact SOIC case with dimensions of 4.9mm length, 3.9mm width, and 1.25mm height.
TDA2040
Single-channel, 22W audio amplifier IC featuring a 100kHz bandwidth and 80dB voltage gain. Designed for dual supply operation with a voltage range of 4.5V to 18V (max 20V) and a quiescent current of 100mA. Delivers up to 4A output current and 22W output power into a 4 Ohm load impedance. Through-hole mounting package with a maximum power dissipation of 25W. Operates across a wide temperature range of -40°C to 150°C.
About TDA7379
The Stmicroelectronics TDA7379 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: IC AMP CLASS AB DUAL/QUAD 38W. Key parameters include Max Output Power: 38W, Mount: Through Hole, Package Quantity: 25, Packaging: Rail/Tube, and RoHS: Compliant. TDA7379 is manufactured by Stmicroelectronics as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Stmicroelectronics
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TDA7379 specifications
Click to ask a quick question:
Parameters
| Max Output Power | 38W |
| Mount | Through Hole |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS | Compliant |
