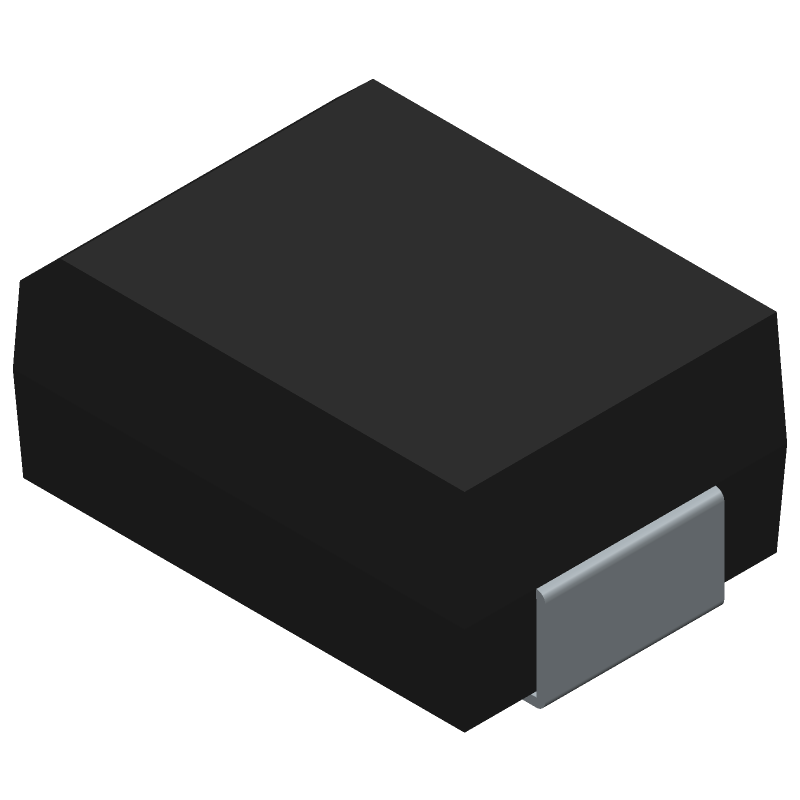

SS510
Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN
Similar Components
CD4051BE
Single 8:1 analog multiplexer, featuring an 8:1 multiplexer architecture with 8 inputs and 1 output. This through-hole component is housed in a 16-pin PDIP plastic dual in-line package with a 2.54mm pin pitch. Operating temperature range spans from -55°C to 125°C, with a maximum on-resistance of 1000 Ohms.
74HC595D
The 74HC595D is an 8-bit serial-in parallel-out shift register from Toshiba, packaged in a 16-pin SOIC. It operates within a temperature range of -40°C to 125°C, making it suitable for automotive applications. The device can handle supply voltages between 2V and 6V, with a nominal voltage of 4.5V. It features a propagation delay of 240ns and a maximum frequency of 24MHz. The shift register has 16 terminals and supports serial input and parallel output.
MCP3204-CI/SL
12-Bit 4-Ch SAR ADC, 100kS/s, SPI, SOIC
SS14F
The SS14FL-TP is a silicon rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It features a dual terminal position and a DO-221AC package code. The diode element material is silicon and the diode type is a rectifier diode. The device has a maximum reverse voltage of 40V.
SS16F
1.0 A, 60 V Surface Mount Schottky Barrier Rectifiers, 3000-REEL
FWX-20A14F
The Eaton FWX-20A14F is a 250V 20A electrical fuse with a diameter of 14.3mm and a maximum power dissipation of 4.6W. It is available in a bulk packaging with 10 units per package. The fuse is designed for use in a holder and has a termination type of clip. It meets various safety approvals including UR, UL, CSA, and CE. The fuse is rated for use at a DC voltage of 250V and an AC voltage of 250V.
About SS510
The Yangzhou Yangjie Electronics SS510 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, DO-214AB, SMC, 2 PIN. Key parameters include Diode Element Material: SILICON, Diode Type: RECTIFIER DIODE, JEDEC Package Code: DO-214AB, Max Operating Temperature: 150, and Military Spec: False. SS510 is manufactured by Yangzhou Yangjie Electronics as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Yangzhou Yangjie Electronics
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SS510 specifications
Click to ask a quick question:
Parameters
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| JEDEC Package Code | DO-214AB |
| Max Operating Temperature | 150 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| REACH | Compliant |
| Rep Pk Reverse Voltage-Max | 100 |
| RoHS | Yes |
| Terminal Position | DUAL |
