SRV05-4-P-T7

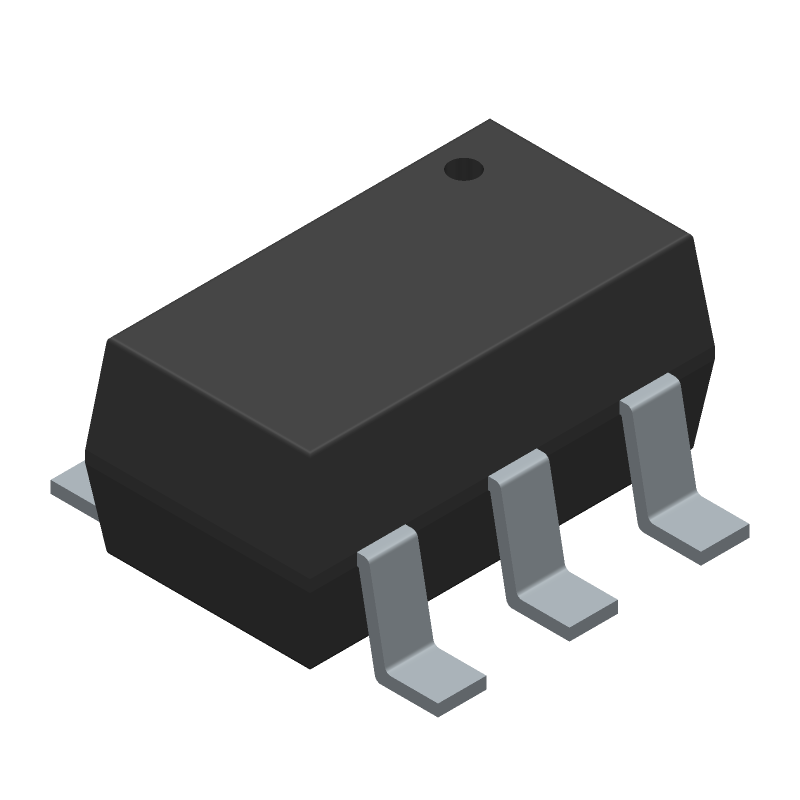

The SRV05-4-P-T7 is a unidirectional transient voltage suppressor in a surface mount SOT-23 package. It has a maximum operating temperature range of -55°C to 150°C and is lead free. The device has a reverse breakdown voltage of 6V and a peak pulse power rating of 500W. It is RoHS compliant and available in tape and reel packaging.
Similar Components
SRV05-4
Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, SOT-23, 6 PIN
LM555
Single channel timer IC with a 100kHz frequency capability, operating from a 4.5V to 16V supply. Features include 200mA output current, 1.18W power dissipation, and a 0°C to 70°C operating temperature range. This lead-free, RoHS compliant component is housed in an 8-pin PDIP through-hole package.
62400-5-B
BIG EYE LED MAGNIFIER ESD SAFE, 2.25X; Arm Length:43; For Use With:-; Magnification:2.25X; Plug Type:-; Supply Voltage:15V; Tool Body Material:Aluminium
BSS84
P-channel MOSFET, 50V drain-source breakdown voltage, 130mA continuous drain current, and 10 Ohm drain-source on-resistance. This surface-mount transistor features a 2.5ns turn-on delay and 6.3ns fall time, with a nominal gate-source threshold voltage of -1.7V. Packaged in a 3-pin SOT-23, it operates from -55°C to 150°C with a maximum power dissipation of 360mW.
DEO125
Fuse HRC 125A 415V Bolt Tap 31 X 112mm
SMCJ33A
Unidirectional TVS Diode for transient voltage suppression, featuring a 33V DC rated voltage and 1.5kW peak pulse power. This surface mount component offers a 36.7V minimum breakdown voltage and a 53.3V clamping voltage, with a low 1uA leakage current. Designed for demanding applications, it operates across a wide temperature range from -65°C to 150°C and handles a peak pulse current of 28.2A. Packaged in a DO-214AB case, this RoHS compliant diode is supplied on tape and reel.
About SRV05-4-P-T7
The Protek SRV05-4-P-T7 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The SRV05-4-P-T7 is a unidirectional transient voltage suppressor in a surface mount SOT-23 package. It has a maximum operating temperature range of -55°C to 150°C and is lead free. The device has a reverse breakdown voltage of 6V and a peak pulse power rating of 500W. It is RoHS compliant and available in tape and reel packaging.. Key parameters include Capacitance: 3.5pF, Clamping Voltage: 15V, Clamping Voltage-Max: 15V, Depth: 1.75mm, and Direction: Unidirectional. SRV05-4-P-T7 is manufactured by Protek as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Protek
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SRV05-4-P-T7 specifications
Click to ask a quick question:
Parameters
| Capacitance | 3.5pF |
| Clamping Voltage | 15V |
| Clamping Voltage-Max | 15V |
| Depth | 1.75mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 3.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Package/Case | SOT-23 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Working Voltage | 5V |
