SMDJ85CA

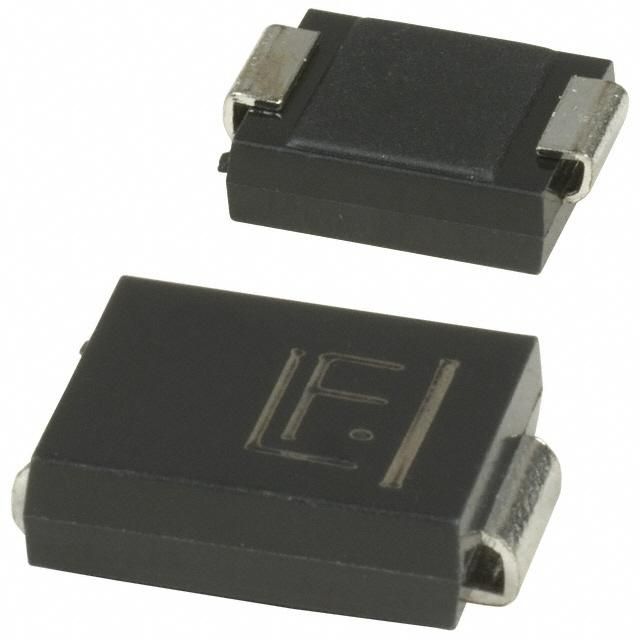

Bidirectional TVS diode for surge suppression, featuring a 8.5V operating voltage and 14.4V clamping voltage. This surface mount component offers a peak pulse power of 3kW and a maximum surge current of 208.3A. With a low leakage current of 2uA and a wide operating temperature range from -55°C to 150°C, it provides reliable protection. The DO-214AB package is supplied on tape and reel for efficient assembly.
Similar Components
30302500001
Fuse Subminiature Fast Acting 0.25A 125V Radial 6 X 8mm Ammo CSA/UL
SMAJ15CA
Bidirectional TVS Diode for surge suppression, featuring a 15V DC rated voltage and 16.7V minimum breakdown voltage. This component offers a 24.4V clamping voltage and a 400W peak pulse power rating, with a 16.4A peak pulse current capability. Designed for surface mount applications in a DO-214AC package, it operates bidirectionally with a maximum power dissipation of 3.3W and a low leakage current of 1uA.
SMAJ14A
Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 400W peak pulse power rating and a 14V DC rated voltage. Offers a 15.6V minimum breakdown voltage and a 23.2V clamping voltage. Operates within a temperature range of -65°C to 150°C and is housed in a compact DO-214AC package. This silicon diode is RoHS compliant and lead-free.
SMCJ43CA
Bidirectional TVS Diode, DO-214AB package, offering 43V reverse standoff voltage and 69.4V clamping voltage. Features a 1.5kW peak pulse power rating, 21.7A peak pulse current capability, and 6.5W power dissipation. Operates across a -65°C to 150°C temperature range with low 1uA reverse leakage. Surface mount design, lead-free, and RoHS compliant.
SMCJ36CA
Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 36V DC rated voltage and 1.5kW peak pulse power handling. Offers a 40V minimum breakdown voltage and a 58.1V clamping voltage. Operates across a wide temperature range from -65°C to 150°C with a low leakage current of 1uA. Packaged in a DO-214AB (SMC) case, supplied on tape and reel.
0LEB0AJSX
In-Line Watertight Fuse Holder
About SMDJ85CA
The Littelfuse SMDJ85CA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Bidirectional TVS diode for surge suppression, featuring a 8.5V operating voltage and 14.4V clamping voltage. This surface mount component offers a peak pulse power of 3kW and a maximum surge current of 208.3A. With a low leakage current of 2uA and a wide operating temperature range from -55°C to 150°C, it provides reliable protection. The DO-214AB package is supplied on tape and reel for efficient assembly.. Key parameters include Clamping Voltage: 14.4V, Diode Type: ZENER, Lead Free: Lead Free, Leakage Current: 2uA, and Max Operating Temperature: 150°C. SMDJ85CA is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SMDJ85CA specifications
Click to ask a quick question:
Parameters
| Clamping Voltage | 14.4V |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Max Operating Temperature | 150°C |
| Max Surge Current | 208.3A |
| Min Breakdown Voltage | 9.44V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 8.5V |
| Package/Case | DO-214AB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 208.3A |
| Peak Pulse Power | 3kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Quest | 1769—$1.2———View offer |
| Reverse Breakdown Voltage | 94.4V |
| Reverse Standoff Voltage | 8.5V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | SMDJ |
| Termination | SMD/SMT |
