SMDJ45CA

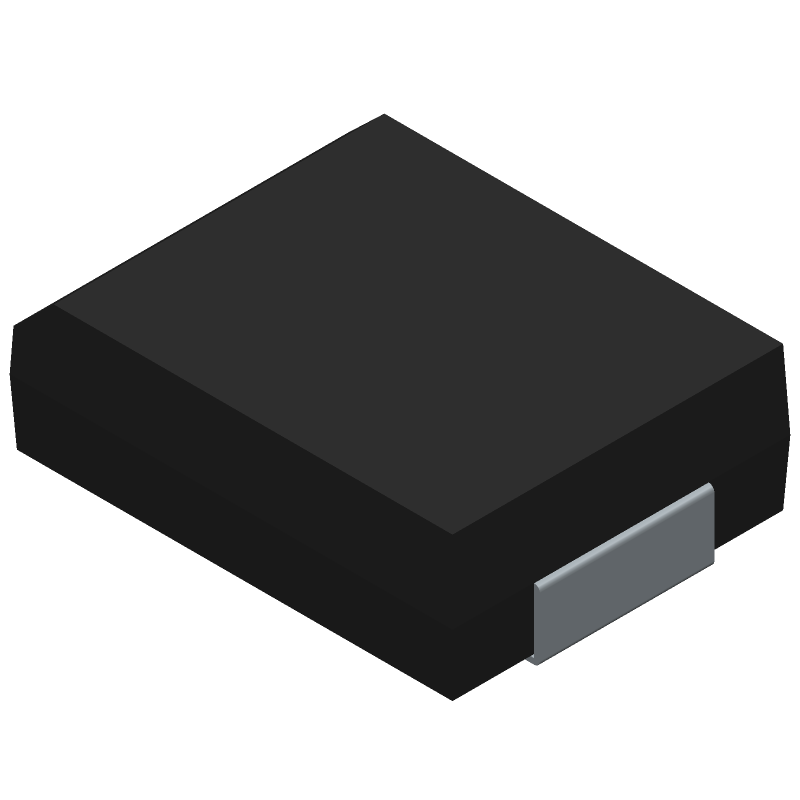

Bidirectional transient voltage suppressor diode, 3kW peak pulse power, 45V reverse standoff voltage, and 50V minimum breakdown voltage. Features a 72.7V clamping voltage and 41.3A maximum surge current. This single-element silicon diode is designed for surface mounting in a DO-214AB (SMC) package, offering 1 bidirectional channel. It operates across a wide temperature range of -65°C to 150°C and is lead-free and RoHS compliant.
Similar Components
SMCJ22CA
Bidirectional TVS Diode, DO-214AB package, designed for surge suppression. Features a 22V DC rated voltage, 24.4V minimum breakdown voltage, and 35.5V clamping voltage. Offers 1.5kW peak pulse power, 42.3A peak pulse current, and 6.5W power dissipation. Operates across a -65°C to 150°C temperature range with a low 1uA leakage current. Surface mountable with SMD/SMT termination, supplied in tape and reel packaging.
03453RF8X
This 250V panel mount fuse features a current rating of 20A and a maximum operating temperature of 85°C. It is constructed with a copper alloy contact material and tin plating, and is compliant with UL94 V-0 flammability rating. The fuse is available in a bulk packaging and has a quick connect termination. It is designed for use in applications where a high voltage and current rating are required, and is suitable for operating temperatures between -40°C and 85°C.
SMAJ14CA
Surface mount bidirectional TVS diode for surge suppression. Features 400W peak pulse power dissipation, 17.2A peak pulse current, and 14V reverse standoff voltage. Offers 15.6V minimum breakdown voltage and 23.2V clamping voltage. Operates across a wide temperature range of -65°C to 150°C. Packaged in DO-214AC for tape and reel distribution.
38316300410
The TR5 383 fuse is a radial through hole fuse with a current rating of 6.3A and a voltage rating of 300V. It has a maximum operating temperature of 125°C and a minimum operating temperature of -65°C. The fuse is packaged in bulk quantities of 1000 and is compliant with RoHS regulations. It measures 8mm in size and has a length of 0.315inch.
SMF24A
Unidirectional TVS Diode for surge suppression, featuring a 24V reverse standoff voltage and 38.9V clamping voltage. This surface mount component offers a peak pulse current of 5.1A and 200W peak pulse power, with a breakdown voltage range of 26.7V to 29.5V. Operating across a wide temperature range from -55°C to 150°C, it is RoHS compliant and lead-free.
03450913H
ACS SHOCK-SAFE FUSEHLDR
About SMDJ45CA
The Littelfuse SMDJ45CA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Bidirectional transient voltage suppressor diode, 3kW peak pulse power, 45V reverse standoff voltage, and 50V minimum breakdown voltage. Features a 72.7V clamping voltage and 41.3A maximum surge current. This single-element silicon diode is designed for surface mounting in a DO-214AB (SMC) package, offering 1 bidirectional channel. It operates across a wide temperature range of -65°C to 150°C and is lead-free and RoHS compliant.. Key parameters include Clamping Voltage: 72.7V, Diode Type: ZENER, Lead Free: Lead Free, Leakage Current: 2uA, and Max Operating Temperature: 150°C. SMDJ45CA is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SMDJ45CA specifications
Click to ask a quick question:
Parameters
| Clamping Voltage | 72.7V |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Max Operating Temperature | 150°C |
| Max Surge Current | 41.3A |
| Min Breakdown Voltage | 50V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 45V |
| Package/Case | DO-214AB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 41.3A |
| Peak Pulse Power | 3kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Quest | 6389$1.2$0.75$0.45——View offer |
| Reverse Breakdown Voltage | 50V |
| Reverse Standoff Voltage | 45V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | SMDJ |
| Termination | SMD/SMT |
