S506-500-R
Electric Fuse, Time Delay Blow, 0.5A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT
Similar Components
20LCT
20A 240VAC 150VDC Fuse, 28x8.4mm, 200kA IR
170M3623
700V 630A Bolt Mount Fuse 50 X 59 X 45mm 80W
FWX-225A
250V 225A Bolt Mount Electrical Fuse
TR2/C517S-3-R
Fuse Miniature Fast Acting 3A 350V Axial 5 X 15mm Glass T/R CSA/UL
HLR-2A
300V 12A Panel Mount Fuse, Lead Free, Illuminated
ACK-80
Fuse Slow Blow Acting 80A 130V Stud Mount 88.9 X 26.98mm UL
About S506-500-R

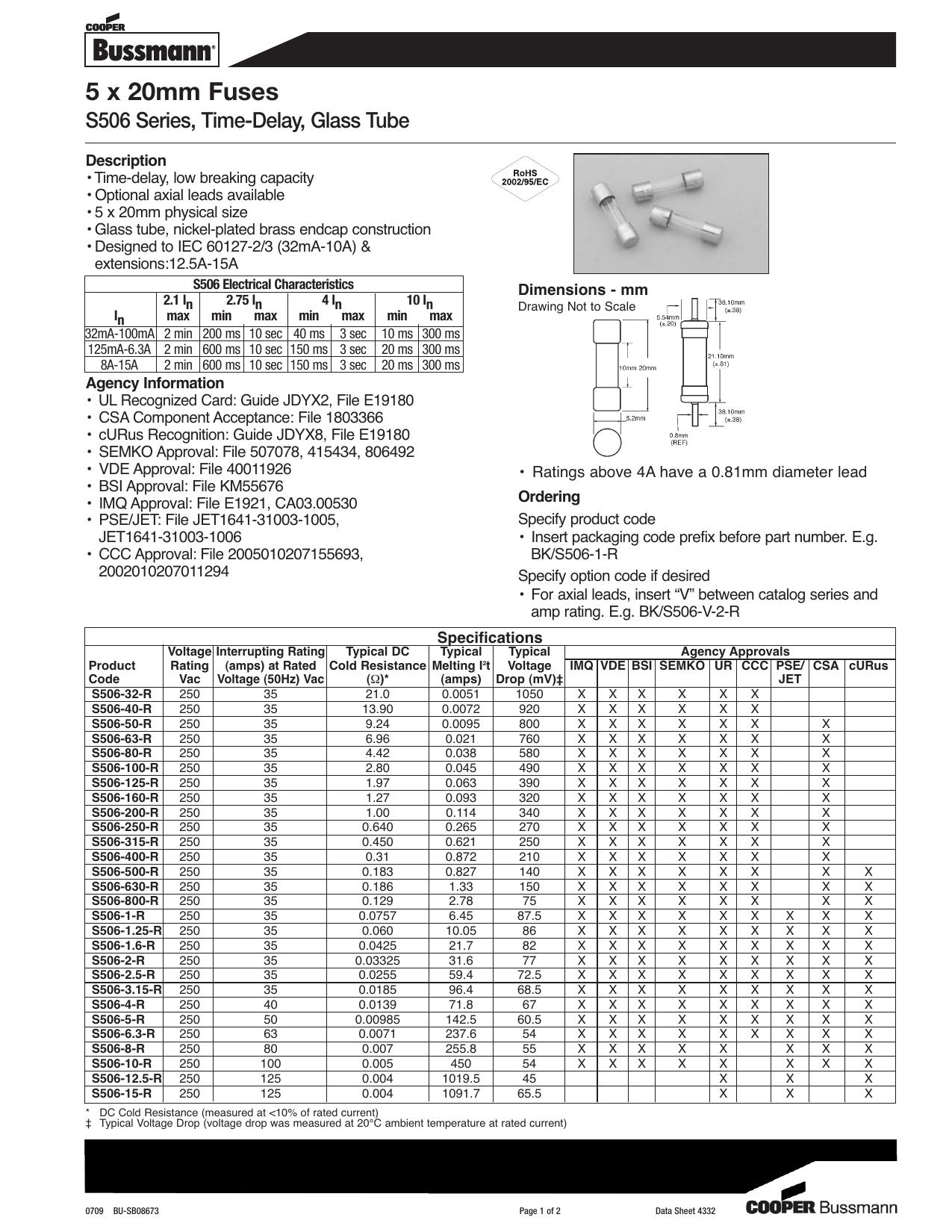

The Eaton S506-500-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Electric Fuse, Time Delay Blow, 0.5A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT. Key parameters include Approvals: CSA, VDE, cULus, CCC, BSI, SEMKO, IMQ, Blow Characteristic: TIME DELAY, Body Material: Glass, Current Rating: 500mA, and DC Cold Resistance: 183mR. S506-500-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about S506-500-R specifications
Click to ask a quick question:
Parameters
| Approvals | CSA, VDE, cULus, CCC, BSI, SEMKO, IMQ |
| Blow Characteristic | TIME DELAY |
| Body Material | Glass |
| Current Rating | 500mA |
| DC Cold Resistance | 183mR |
| Diameter | 5mm |
| Fuse Current | 500mA |
| Fuse Size | 5 x 20mm |
| Length | 0.787inch |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | S506 |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
