MP1584EN

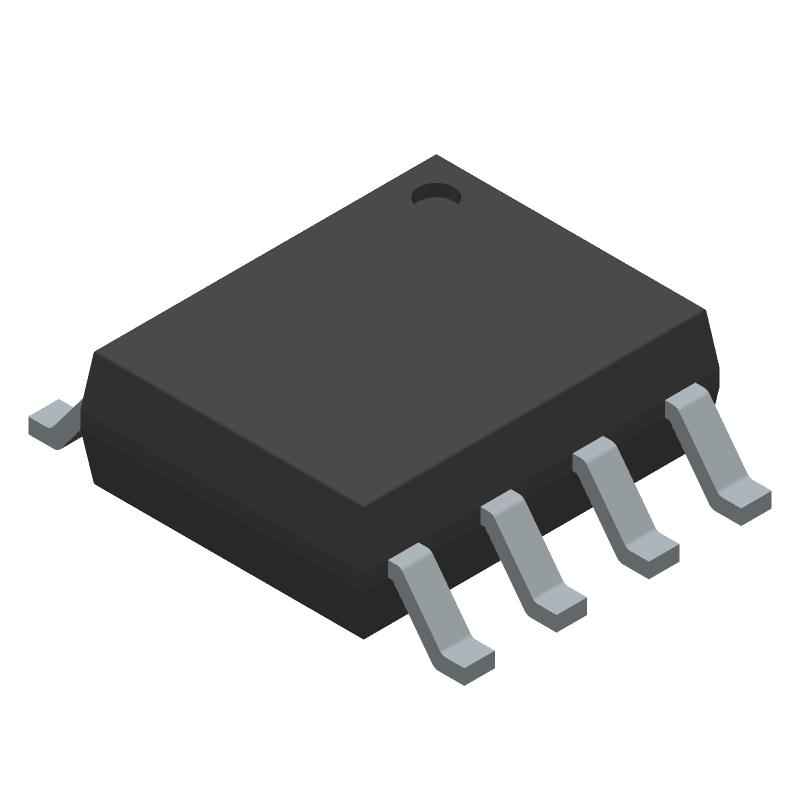

Switching Regulator, Current-mode, 1500kHz Switching Freq-Max, PDSO8, MS-012BA, SOIC-8
Similar Components
MP1584EN-LF-Z
High-performance switching regulator, current-mode control, featuring a maximum switching frequency of 1500kHz. This integrated circuit offers adjustable positive output voltage from 800mV to 25V, with a maximum output current of 3A. Designed for surface mounting, it operates within an input voltage range of 4.5V to 28V and a temperature range of -20°C to 85°C. The component is supplied in a SOIC package, RoHS compliant, and packaged on tape and reel.
MP2307DN-LF-Z
Switching Regulator, Current-mode, 3A, 380kHz Switching Freq-Max, PDSO8, LEAD FREE, SOIC-8
MP24943DN-LF-Z
Switching Regulator, Current-mode, 8A, PDSO8, ROHS COMPLIANT, MS-012BA, SOIC-8
MP2307
Switching Regulator, Current-mode, 3A, 380kHz Switching Freq-Max, PDSO8, LEAD FREE, SOIC-8
MP2459GJ-Z
Automotive-grade, 6-pin TSOT-23 switching regulator with current-mode control. Features a maximum input voltage of 55V and a minimum of 4.5V, operating between -40°C and 125°C. Delivers up to 1.5A with a maximum switching frequency of 580kHz. This integrated circuit offers a single function within its compact 1.6mm x 2.9mm package.
MP2359DJ-LF-Z
Switching Regulator, Current-mode, 1.2A, 1700kHz Switching Freq-Max, PDSO6, ROHS COMPLIANT, MO-193AB, TSOT23, 6 PIN
About MP1584EN

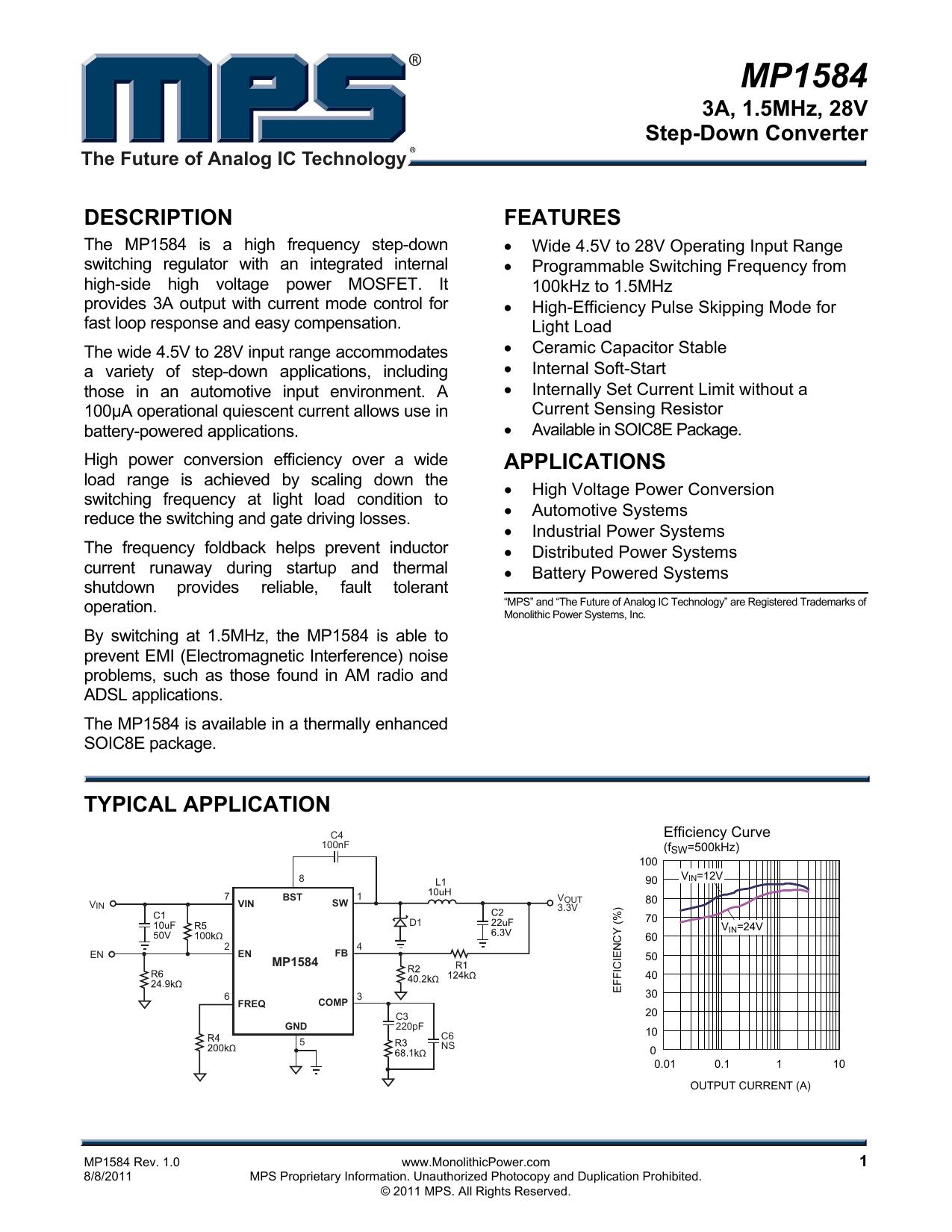

The Monolithic Power Systems MP1584EN Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Switching Regulator, Current-mode, 1500kHz Switching Freq-Max, PDSO8, MS-012BA, SOIC-8. Key parameters include Eccn Code: EAR99, HTS Code: 8542.39.00.01, Input Voltage-Max: 28, Input Voltage-Min: 4.5, and JEDEC Package Code: R-PDSO-G8. MP1584EN is manufactured by Monolithic Power Systems as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Monolithic Power Systems
- Category
- Power Supplies
Ask AI Assistant
Ask questions about MP1584EN specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Input Voltage-Max | 28 |
| Input Voltage-Min | 4.5 |
| JEDEC Package Code | R-PDSO-G8 |
| Length | 4.9 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -20 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| REACH | Compliant |
| Temperature Grade | OTHER |
| Terminal Position | DUAL |
| Width | 3.9 |
