LC1D258F7

General Purpose 4-Pole 300V 40A DIN Rail Mounting

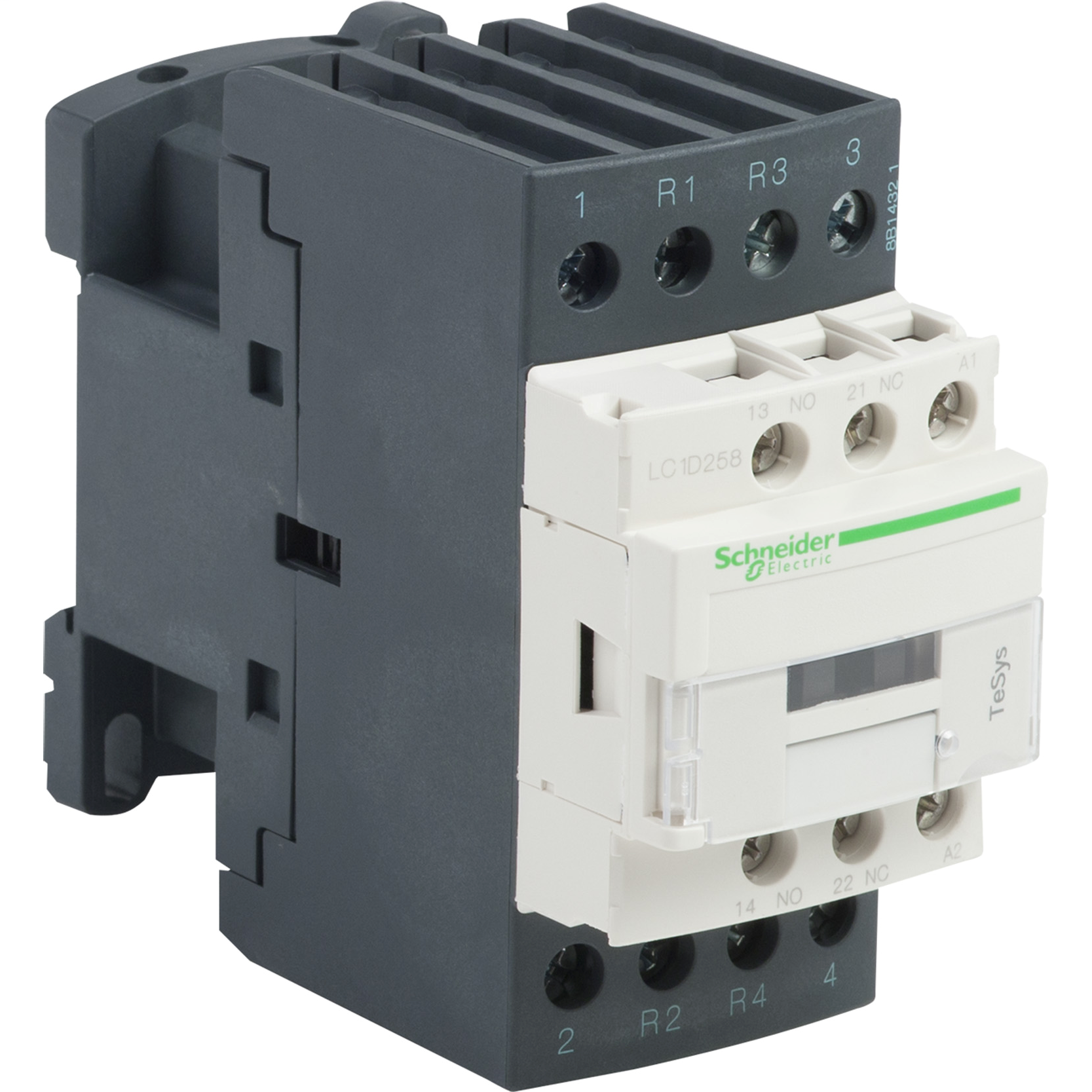

LC1D258F7 datasheet preview page 1

Similar Components

RSLZRA4

General Purpose Relays Relay + spring clamp socket 230 VAC/VDC

SchneiderUncategorized
40 4

GV2AP03

Motor Drives MAN-SWITCH IP54 IEC EXTERNAL OPERATOR

SchneiderUncategorized
44 8

RSLZRA3

General Purpose Relays Screw socket, 110 AC/DC (relay 60 VDC)

SchneiderUncategorized
40 6

About LC1D258F7

The Schneider LC1D258F7 Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: General Purpose 4-Pole 300V 40A DIN Rail Mounting. Key parameters include Approvals: UL, CSA, IEC, CCC, EN, Contact Current Rating: 40A, Current Rating: 40A, DC Rated Voltage: 300V, and Depth: 97mm. LC1D258F7 is manufactured by Schneider as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer
Schneider
Category
Uncategorized

Ask AI Assistant

Ask questions about LC1D258F7 specifications

AI Powered

Click to ask a quick question:

Parameters

ApprovalsUL, CSA, IEC, CCC, EN
Contact Current Rating40A
Current Rating40A
DC Rated Voltage300V
Depth97mm
Length105mm
Max Operating Temperature60°C
Min Operating Temperature-5°C
MountDIN Rail
Number of Poles4
RoHSCompliant
RoHS CompliantYes
SeriesLC1
TerminationScrew
TypeGeneral Purpose
Voltage Rating (AC)690V
Width45mm
