HTB-28I-R
Fuse Holder 20A 250V Panel Mount Quick Connect Carton
Similar Components
GDA-400MA
Fuse Miniature Fast Acting 0.4A 250V Holder Cartridge 5 X 20mm Ceramic CCC/CSA/IMQ/SEMKO/UL
KLM-20
20A 600V Fast-Acting MELF Fuse, 10.3x38.1mm, UL/CSA
5960-07
Chassis Mount Fuse, 20A, 250V, 13/32\
JCD-1E
Fuse Miniature 1A 2750V Holder Cartridge 20.3 X 114.3mm
TPC-10
Fuse 10A 80V DIN Rail Wire 46.89 X 13.89 X 46.33mm CE/UL
BK/MDL-6-R
Time Delay Fuse, 6A, 250VAC, 32VDC, 200A IR, Glass
About HTB-28I-R

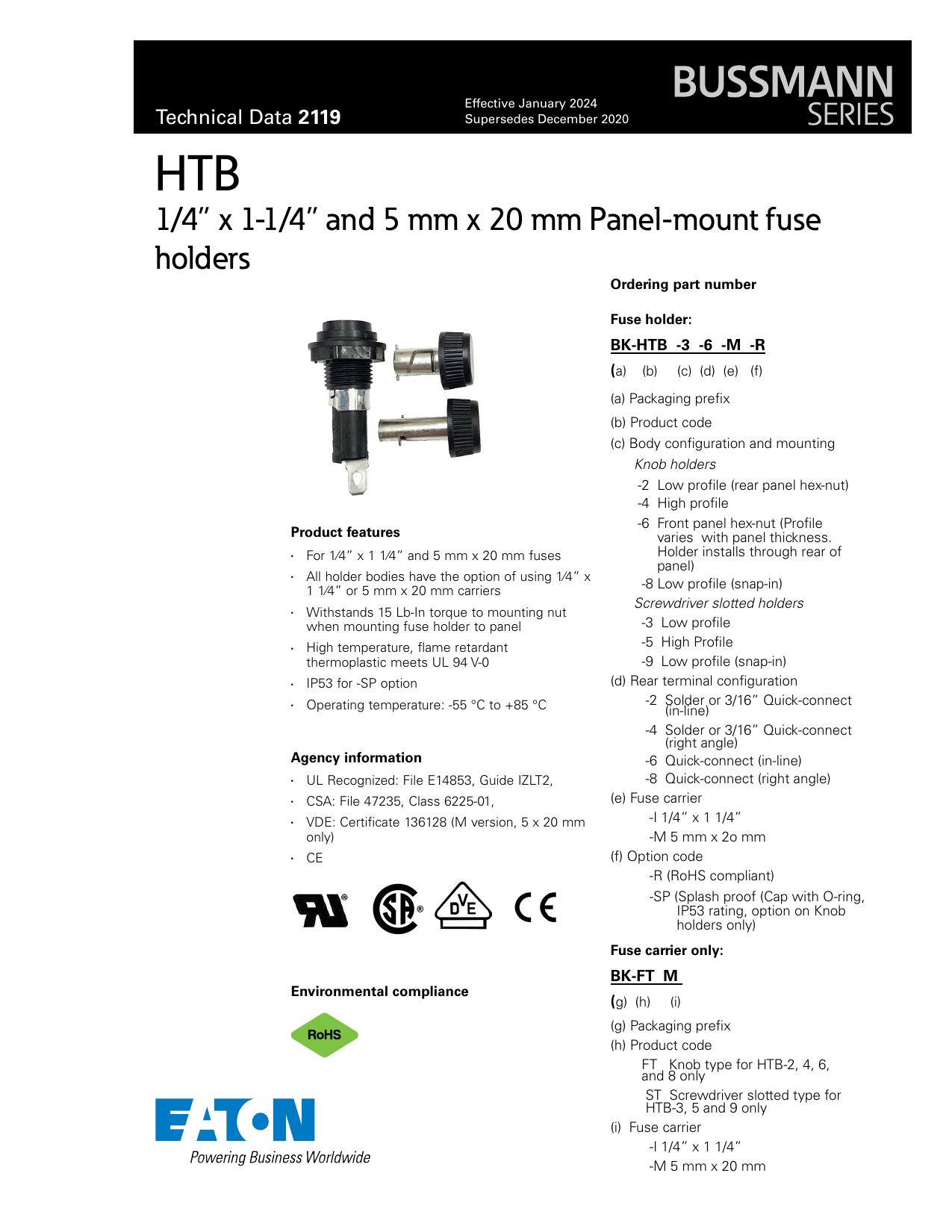

The Eaton HTB-28I-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Holder 20A 250V Panel Mount Quick Connect Carton. Key parameters include Body Material: Thermoplastic, Color: Black, Contact Material: Brass, Tin, Current Rating: 20A, and Fuse Size: 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm). HTB-28I-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about HTB-28I-R specifications
Click to ask a quick question:
Parameters
| Body Material | Thermoplastic |
| Color | Black |
| Contact Material | Brass, Tin |
| Current Rating | 20A |
| Fuse Size | 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm) |
| Illumination Type | Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Series | HTB |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Weight | 0.4oz |
