About HBW-M-R

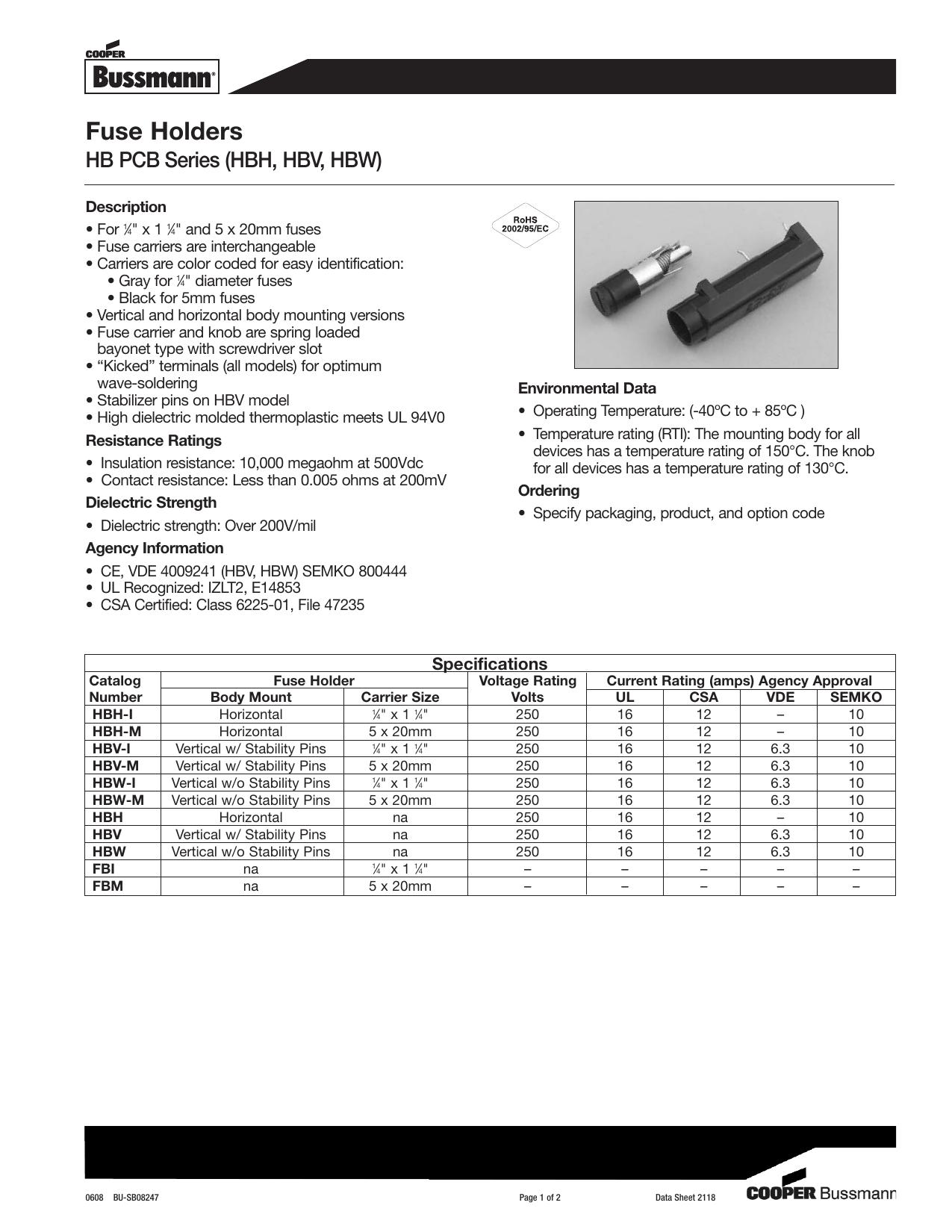

The Eaton HBW-M-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Holder 12A 250V Through Hole Pin Carton. Key parameters include Approvals: UL, CSA, VDE, CE, SEMKO, Body Material: Thermoplastic, Color: Black, Current Rating: 16A, and Depth: 14.9mm. HBW-M-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about HBW-M-R specifications
Click to ask a quick question:
Parameters
| Approvals | UL, CSA, VDE, CE, SEMKO |
| Body Material | Thermoplastic |
| Color | Black |
| Current Rating | 16A |
| Depth | 14.9mm |
| Fuse Size | 5mm x 20mm |
| Illumination Type | Illuminated |
| Length | 47mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Vertical, PCB, Through Hole |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Orientation | Vertical |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Series | HB PCB |
| Termination | PC Pin |
| Voltage | 250V |
| Voltage Rating | 250V |
| Weight | 0.4oz |
