GMC-3-R
250V 3A Time Delay Fuse Holder, 5 x 20mm, Clip Termination
Similar Components
FNQ-R-6
600V 6A Surface Mount Fuse, Limitron FNQ-R Series
NOS-125
Fuse Class H 125A 600V Holder Carton CSA/UL
CB61F3A-TR1
CB61F3A-TR1 125V 3A Surface Mount Fuse
HEY-AE
Fuse Holder
KLU-2500
Limitron KLU 600V 2.5kA Bolt Mount Fuse
BK/C519-750-R
Time Delay Fuse 750mA 250V 5x15mm Glass UL/CSA
About GMC-3-R

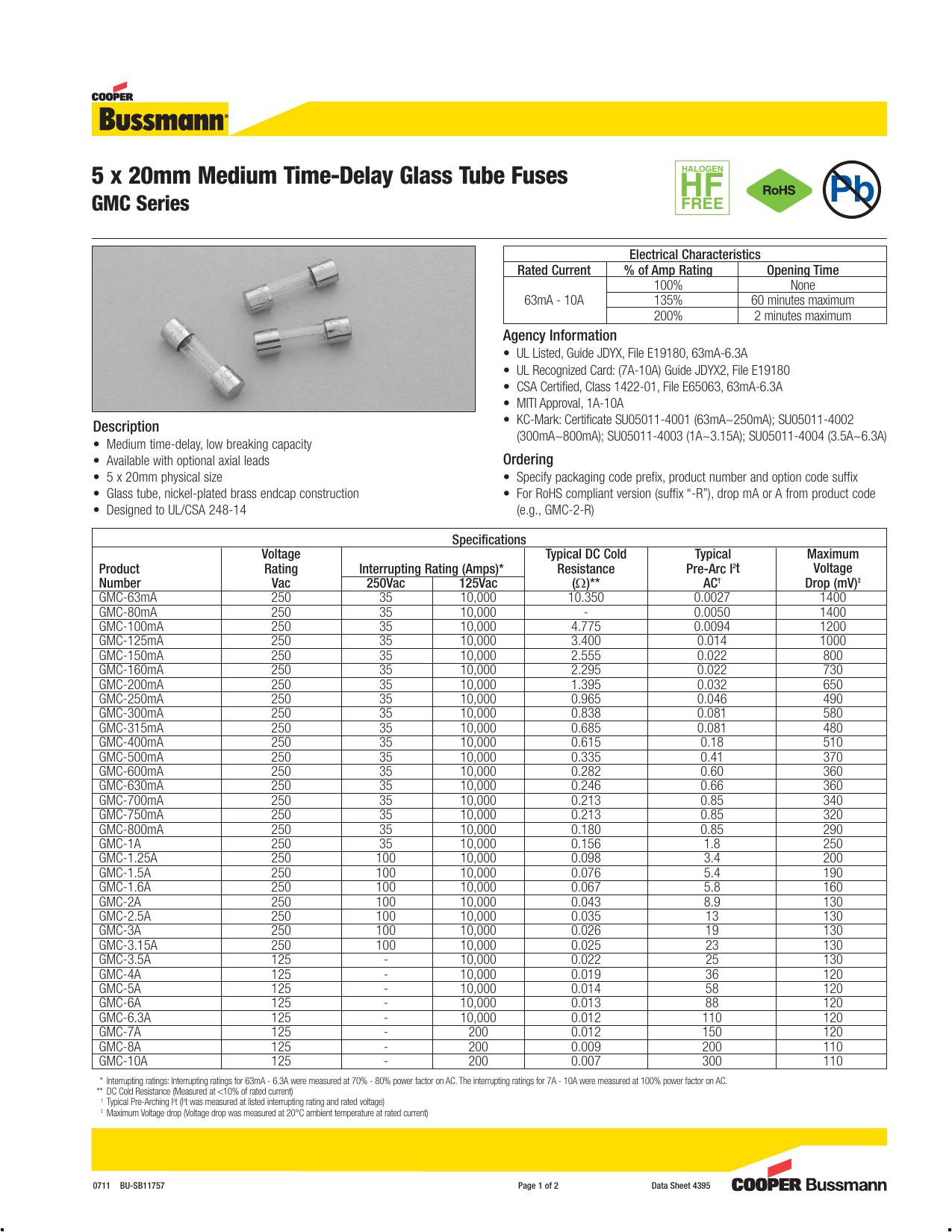

The Eaton GMC-3-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 250V 3A Time Delay Fuse Holder, 5 x 20mm, Clip Termination. Key parameters include Approvals: UL, CSA, KC, Blow Characteristic: TIME DELAY, Body Diameter: 5mm, Body Length: 20mm, and Current Rating: 3A. GMC-3-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about GMC-3-R specifications
Click to ask a quick question:
Parameters
| Approvals | UL, CSA, KC |
| Blow Characteristic | TIME DELAY |
| Body Diameter | 5mm |
| Body Length | 20mm |
| Current Rating | 3A |
| DC Cold Resistance | 26mR |
| DC Rated Voltage | 250V |
| Diameter | 5.2mm |
| Fuse Current | 3A |
| Fuse Size | 5 x 20mm |
| Length | 0.787inch |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder |
| Outside Diameter | 5.2mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | GMC |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| Weight | 0.038801oz |
