FRS-R-6
Fusetron FRS-R 6A 600V 300V Clip Mount Fuse
Similar Components
BK/GFA-1/10
125V 100mA Axial Through Hole Fuse
BK/HTB-26M-SP
Fuse Holder 16A 250V Panel Mount Quick Connect Bulk
FWH-1A14F
Fuse Miniature 1A 500V Holder Cartridge 14 X 51mm Carton CSA/UL
BK/AGW-3
Electric Fuse, Fast Blow, 3A, 32VAC, 1000A (IR), Inline/holder,
BK/S-8101-5
5 Circuit Fuse Block, 20A, 300VDC/300VAC, Quick Connect
FWK-10A20F
10A 750V Electrical Fuse Holder with 20.5mm Diameter and 5inch Length
About FRS-R-6

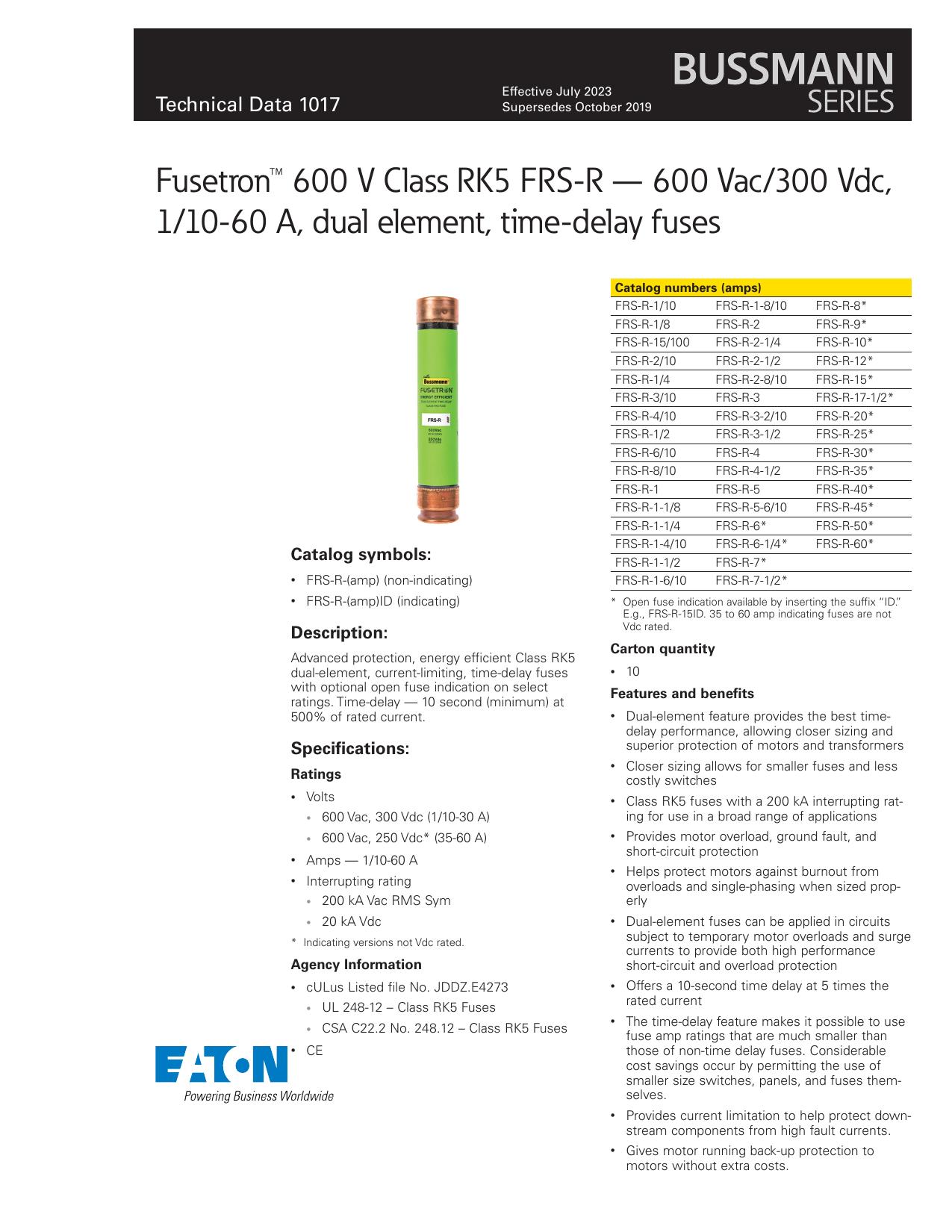

The Eaton FRS-R-6 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fusetron FRS-R 6A 600V 300V Clip Mount Fuse. Key parameters include Approvals: UL, CSA, CE, Body Material: Fiberglass, Current Rating: 6A, DC Rated Voltage: 300V, and Diameter: 0.81inch. FRS-R-6 is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about FRS-R-6 specifications
Click to ask a quick question:
Parameters
| Approvals | UL, CSA, CE |
| Body Material | Fiberglass |
| Current Rating | 6A |
| DC Rated Voltage | 300V |
| Diameter | 0.81inch |
| Fuse Size | 0.81 X 5in |
| Lead Free | Lead Free |
| Length | 5inch |
| Max Voltage Rating (AC) | 600V |
| Mount | Clip, Holder |
| Package Quantity | 10 |
| Packaging | Carton |
| RoHS | Not Compliant |
| Series | Fusetron™ FRS-R |
| Size | 127mm |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating (AC) | 600V |
| Weight | 1.6oz |
| Working Voltage | 600V |
