CP2102N-A02-GQFN28R

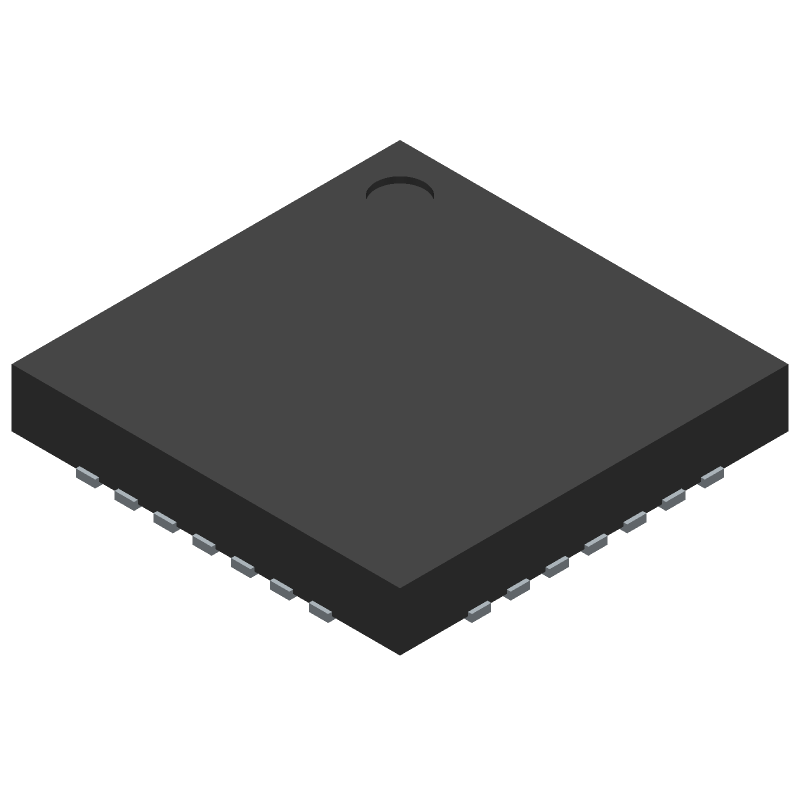

Industrial-grade USB bus controller, CMOS technology, housed in a 28-terminal QFN package (5x5mm). Features a supply voltage range of 3V to 3.6V with a nominal 3.3V. Operating temperature range spans from -40°C to 85°C. This interface IC functions as a universal serial bus controller.
Similar Components
CP2102-GMR
Single-channel USB to UART bridge controller, surface mountable in a 28-pin QFN package. Features tin contact plating and a data rate up to 1000Kbps. Operates from a 3V to 3.6V supply voltage with a typical operating supply current of 20mA. This component is lead-free, RoHS compliant, and suitable for operation between -40°C and 85°C.
CP2102N-A02-GM
USB-to-UART bridge controller integrates a USB 2.0 full-speed function controller, transceiver, 48 MHz oscillator, UART, voltage regulator, and configuration memory. The device supports baud rates from 300 baud to 3 Mbaud with 512-byte transmit and receive buffers. Operation is specified from 3.0 V to 3.6 V on VDD or 3.0 V to 5.25 V on VREGIN, with a -40 °C to 85 °C ambient temperature range. Supported package variants include QFN20, QFN24, and QFN28, with Pb-free RoHS-compliant ordering options.
CP2104-F03-GMR
Full Speed Basic USB Type-C Controller, supporting USB 2.0 protocols up to 12 Mbps. This integrated circuit features a UART interface and a built-in USB transceiver. Housed in a 24-pin Quad Flat No Lead (QFN) package with an exposed pad, it offers surface mount capability. The compact QFN EP package measures 4x4x0.73 mm with a 0.5 mm pin pitch, operating within a temperature range of -40 °C to 85 °C.
CP2102
USB Bus Controller, CMOS, 5 X 5 MM, QFN-28
CP2104-F03-GM
Single-channel USB 2.0 to UART bridge controller, featuring a QFN package with tin-matte contact plating. Operates with a supply voltage range of 3V to 3.6V, consuming 17mA nominal current. Supports data rates up to 2Mbps, with an operating temperature range of -40°C to 85°C. RoHS compliant and non-radiation hardened.
About CP2102N-A02-GQFN28R
The Silicon Labs CP2102N-A02-GQFN28R Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Industrial-grade USB bus controller, CMOS technology, housed in a 28-terminal QFN package (5x5mm). Features a supply voltage range of 3V to 3.6V with a nominal 3.3V. Operating temperature range spans from -40°C to 85°C. This interface IC functions as a universal serial bus controller.. Key parameters include JEDEC Package Code: S-XQCC-N28, Length: 5, Max Operating Temperature: 85, Military Spec: False, and Min Operating Temperature: -40. CP2102N-A02-GQFN28R is manufactured by Silicon Labs as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Silicon Labs
- Category
- Semiconductors
Ask AI Assistant
Ask questions about CP2102N-A02-GQFN28R specifications
Click to ask a quick question:
Parameters
| JEDEC Package Code | S-XQCC-N28 |
| Length | 5 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Terminals | 28 |
| REACH | Compliant |
| RoHS | Yes |
| Schukat | 11,04610—$2.9959———View offer |
| Supply Voltage-Max | 3.6 |
| Supply Voltage-Min | 3 |
| Supply Voltage-Nom | 3.3 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| uPs/uCs/Peripheral ICs Type | BUS CONTROLLER, UNIVERSAL SERIAL BUS |
| Width | 5 |
