BU-2020-A-60-2

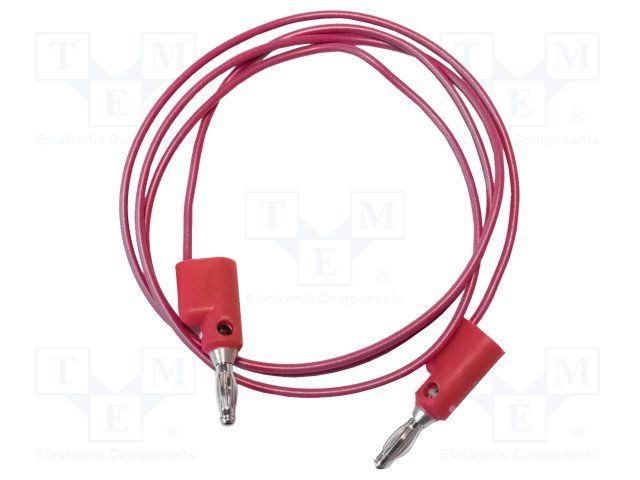

10A 300V Red Test Lead, 1.5m, PVC Insulation, Copper/Brass Contacts
Similar Components
BU-40A-0
BU-40A-0 Steel Clip Probe, 15A, Nickel Plated, PVC Insulated
BU-1450-C-60-0
Test Leads Black Mini-Micro-Plg
BU-63-9
Test Clips White Insul Alligato
BU-00286
Test Clips HD LEAD SET 5X12
BU-46A-2
Insulated Steel Battery Clip, 50A, Red PVC
BU-6162-M-39-0
Plug; 18 AWG; 4; 20; 1000 V; Nickel Plated; Silicone
About BU-2020-A-60-2
The Mueller Electric BU-2020-A-60-2 Test Accessories datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 10A 300V Red Test Lead, 1.5m, PVC Insulation, Copper/Brass Contacts. Key parameters include Color: Red, Connector Type A: Plug, Connector Type B: Plug, Contact Material: Copper, Brass, and Current Rating: 10A. BU-2020-A-60-2 is manufactured by Mueller Electric as part of their Test Accessories product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Mueller Electric
- Category
- Test Accessories
Ask AI Assistant
Ask questions about BU-2020-A-60-2 specifications
Click to ask a quick question:
Parameters
| Color | Red |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Copper, Brass |
| Current Rating | 10A |
| DC Rated Voltage | 300V |
| Gender Type A | Male |
| Gender Type B | Male |
| Insulation Material | PVC |
| Lead Length | 1.5m |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | BU |
| Voltage Rating | 300V |
| Wire/Cable Gauge | 20AWG |
