BK/HKP-L
250V 30A Panel Mount Fuse, 1-Pole, 1-Circuit, 3AG, Lug Termination
Similar Components
BK/GDC-1A
250V 1A Surface Mount Fuse Holder, Nickel Plated, 5 x 20mm
TR/PCB-1-1/2-R
1.5A 250V 450V Radial Through Hole Fuse
5674-01
Chassis Mount Fuse 16A 32V Copper 9/32\
FWJ-125A
FWJ Series 125A Bolt Mount Fuse
BK/SL-15
15A 125V AC Holder Mount Fuse
AMG-225
32V 225A Bolt Mount Fuse
About BK/HKP-L

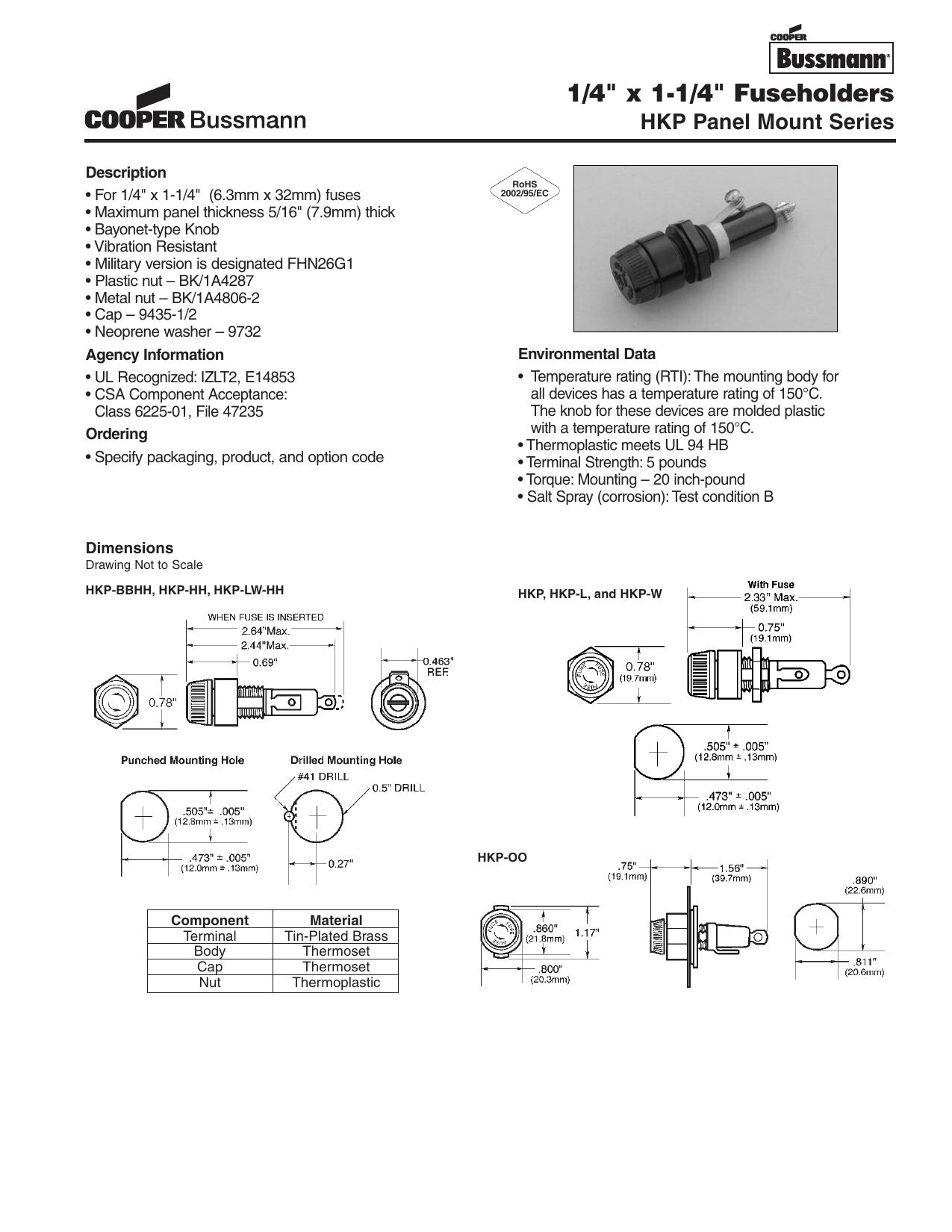

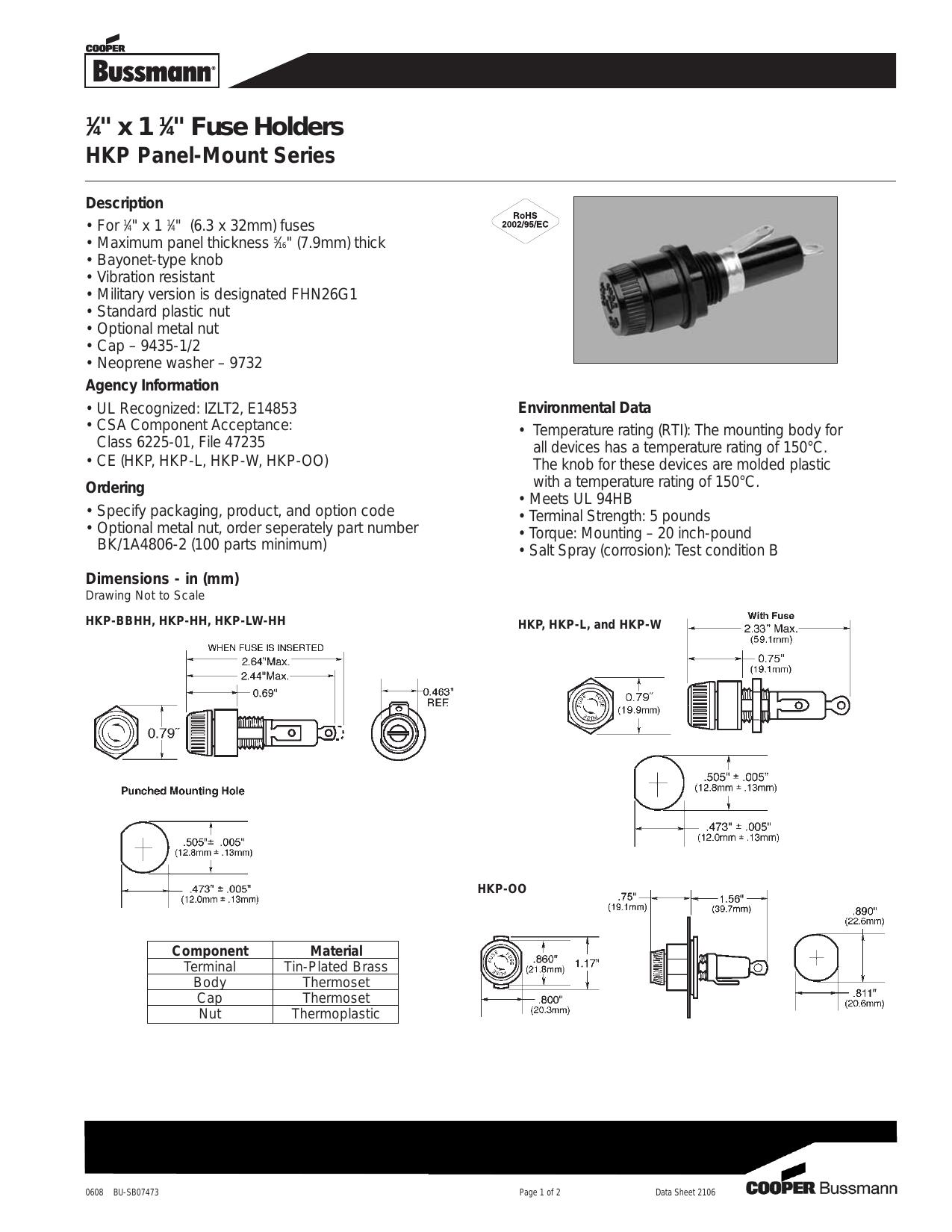

The Eaton BK/HKP-L Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 250V 30A Panel Mount Fuse, 1-Pole, 1-Circuit, 3AG, Lug Termination. Key parameters include Body Material: Thermoset, Color: Black, Contact Material: Brass, Contact Plating: Tin, and Current Rating: 30A. BK/HKP-L is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about BK/HKP-L specifications
Click to ask a quick question:
Parameters
| Body Material | Thermoset |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 30A |
| DC Rated Voltage | 250V |
| Fuse Size | 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm) |
| Illumination Type | Illuminated |
| Lead Free | Contains Lead |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Series | HKP |
| Termination | Lug |
| Voltage | 250V |
| Voltage Rating | 250V |
| Weight | 0.384oz |
