BK/HKP-HH
FUSEHOLDER 1/4\
Similar Components
BM6031PQ
600V 30A Fuse Block, Chassis Mount, 13/32\
HTB-64M-R
Fuse Holder 16A 250V Quick Connect Panel Mount Carton
BK/AGC-3/16-R
250V 188mA Surface Mount Fuse, Nickel Plated, 6.3mm x 32mm
FWP-25B
Fuse 25A 700V Bolt Tap 14.3 X 47.12mm Carton CSA/UL
70G-1/2A
General Purpose Fuse Holder, 300V DC, 500mA, Melf Package
FWX-350A
Fuse 350A 250V Bolt 38.1 X 40.38mm UL
About BK/HKP-HH

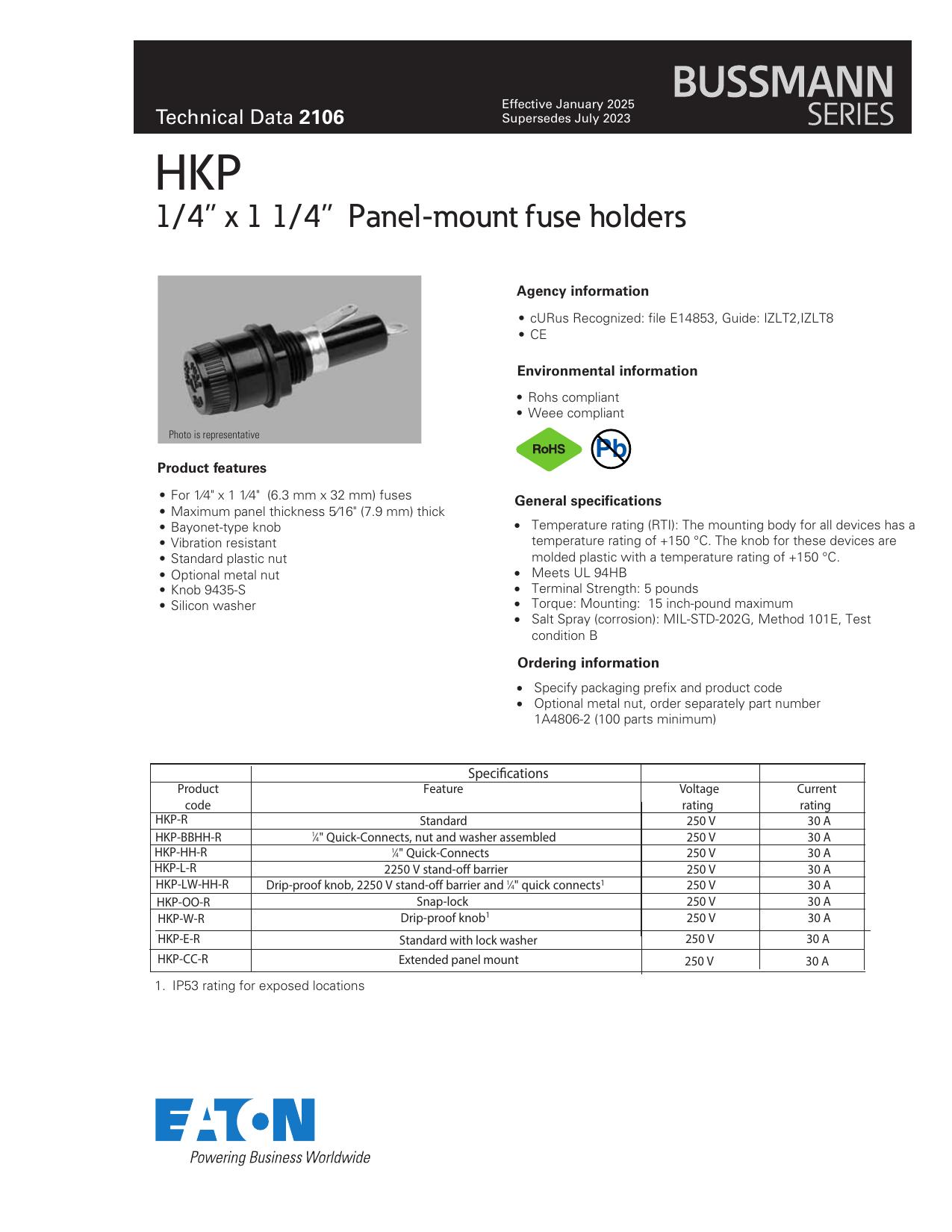

The Eaton BK/HKP-HH Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: FUSEHOLDER 1/4\. Key parameters include Approvals: UL, Body Material: Thermoset, Color: Black, Contact Material: Brass, and Contact Plating: Tin. BK/HKP-HH is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about BK/HKP-HH specifications
Click to ask a quick question:
Parameters
| Approvals | UL |
| Body Material | Thermoset |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 15A |
| DC Rated Voltage | 250V |
| Depth | 20.07mm |
| Fuse Size | 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm) |
| Illumination Type | Illuminated |
| Lead Free | Contains Lead |
| Length | 19.19mm |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Series | HKP |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Weight | 0.432oz |
