About BK/HBV-M

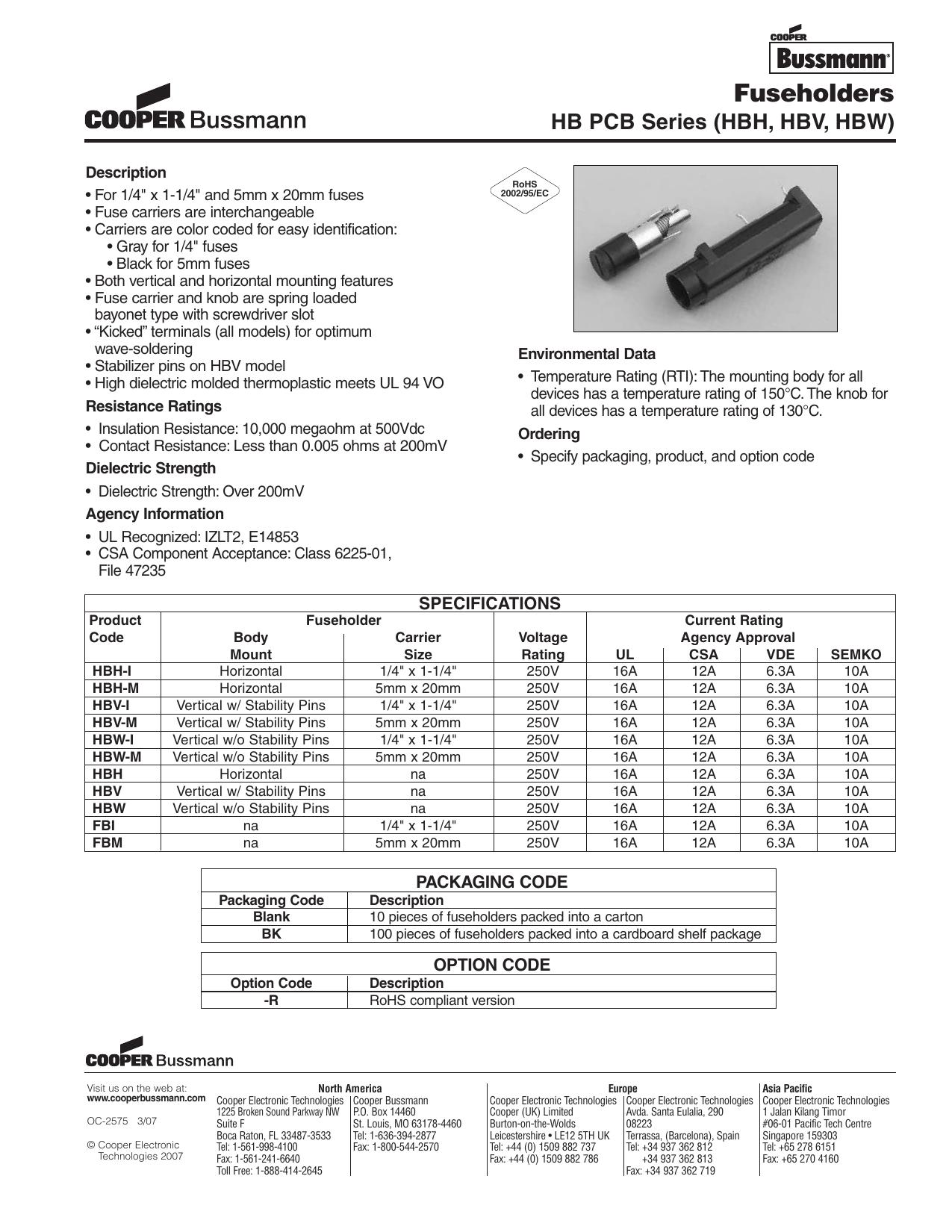

The Eaton BK/HBV-M Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: HB PCB 250V 16A Thermoplastic Fuse. Key parameters include Body Material: Thermoplastic, Color: Black, Current Rating: 16A, DC Rated Voltage: 250V, and Flammability Rating: UL94 V-0. BK/HBV-M is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about BK/HBV-M specifications
Click to ask a quick question:
Parameters
| Body Material | Thermoplastic |
| Color | Black |
| Current Rating | 16A |
| DC Rated Voltage | 250V |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 16A |
| Fuse Size | 5mm x 20mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 47.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | HB PCB |
| Termination | Pin |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Weight | 0.208oz |
