BK/AGX-2
AGX Series 2A 250V AC Holder Mount Fuse
Similar Components
BK/S-8202-7
7-Circuit Fuse Block, 30A, 300VDC/VAC, Bolt Mount, Quick Connect
BK1-S505H-500-R
Electric Fuse, Time Delay Blow, 0.5A, 600VAC, 400VDC, 100A (IR), Inline/holder, HALOGEN FREE AND ROHS COMPLIANT
TPSFH-M
Fuse Holder Screw Mount
BK/GMD-4-R
Time Delay Fuse, 4A, 250VAC, 5x20mm
6D27
Fuse Neozed Fast Acting 6A 500V Holder Pin 50 X 21.5mm Carton
SA-8
125V 8A Screw Terminal Fuse, 1.16 X 1.25in, Bulk Packaging
About BK/AGX-2

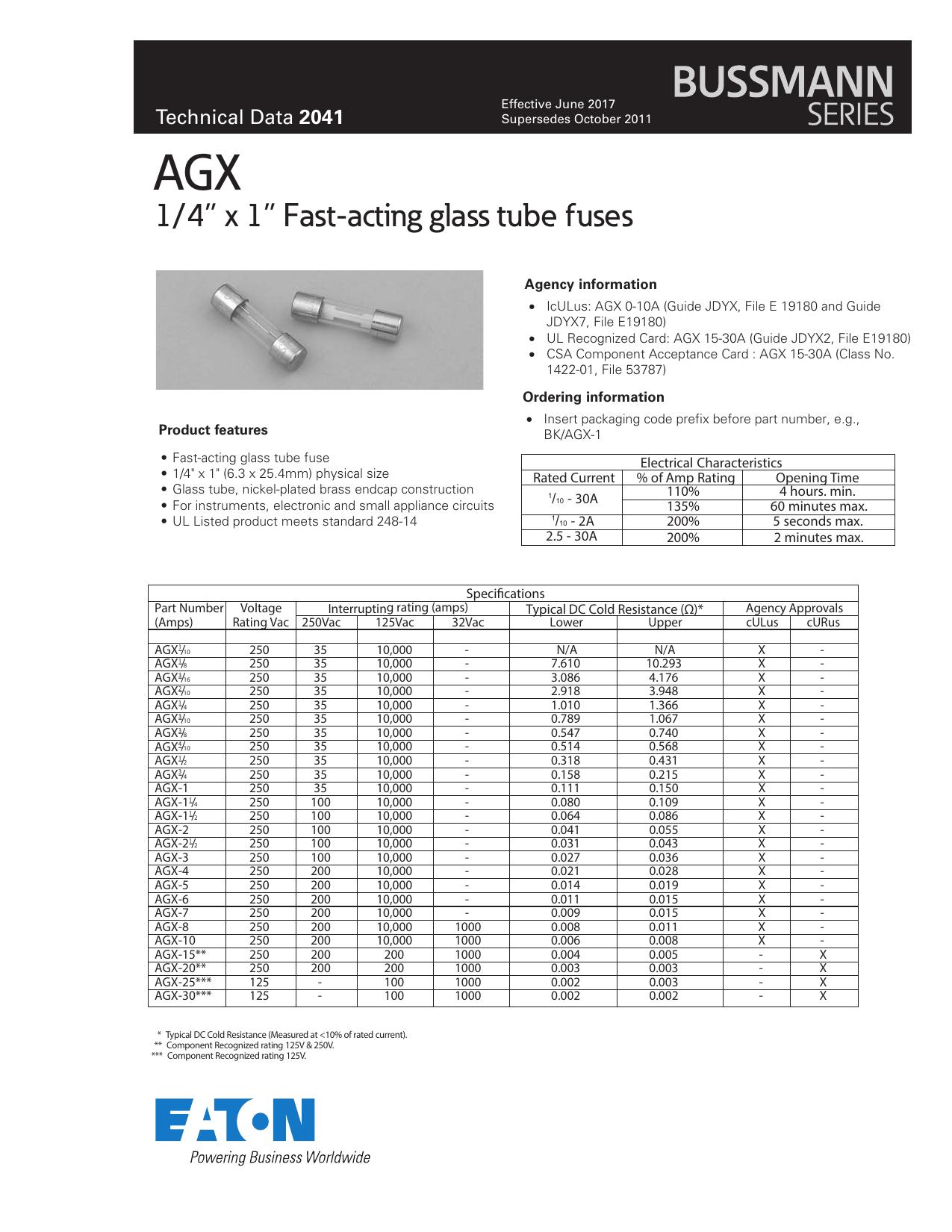

The Eaton BK/AGX-2 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: AGX Series 2A 250V AC Holder Mount Fuse. Key parameters include Approvals: cULus, Contact Plating: Nickel, Current Rating: 2A, DC Cold Resistance: 68mR, and DC Rated Voltage: 250V. BK/AGX-2 is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about BK/AGX-2 specifications
Click to ask a quick question:
Parameters
| Approvals | cULus |
| Contact Plating | Nickel |
| Current Rating | 2A |
| DC Cold Resistance | 68mR |
| DC Rated Voltage | 250V |
| Diameter | 6.3mm |
| Fuse Current | 2A |
| Fuse Size | 1/4 X 1in |
| Lead Free | Contains Lead |
| Length | 26.47mm |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 68.25mR |
| RoHS | Not CompliantNo |
| RoHS Compliant | No |
| Series | AGX |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| Weight | 0.044092oz |
