About ASM-010

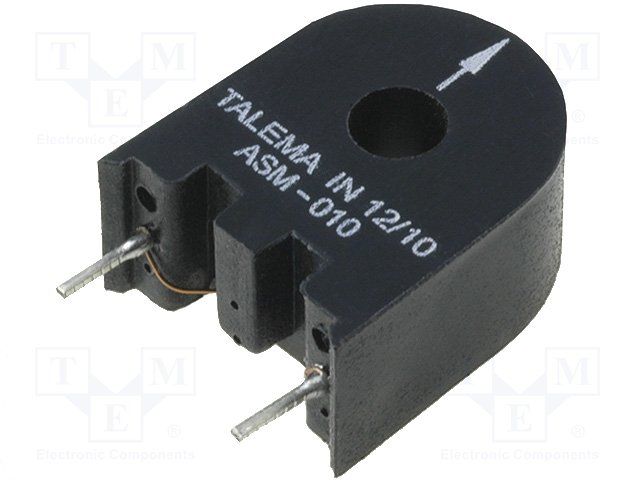

The Nuvotem ASM-010 Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Current Transformer 1000mA/10000mA Prim. 2Term. PC Pin Thru-Hole. Key parameters include Depth: 9.53mm, Input Current: 10A, Inside Diameter: 5mm, Isolation Voltage: 2.5kV, and Length: 21mm. ASM-010 is manufactured by Nuvotem as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer
Nuvotem
Category
Uncategorized

Ask AI Assistant

Ask questions about ASM-010 specifications

AI Powered

Click to ask a quick question:

Parameters

Depth9.53mm
Input Current10A
Inside Diameter5mm
Isolation Voltage2.5kV
Length21mm
Max Frequency60Hz
Max Operating Temperature120°C
Min Frequency50Hz
Min Operating Temperature-40°C
MountThrough Hole, PCB
Number of Phases1
PackagingTray
Primary Current10A
RoHSCompliant
Secondary Impedance50R
SeriesASM
TerminationPC Pin
Weight7g
Width17.2mm
