AGC-V-1-R
Fuse Miniature Fast Acting 1A 250V Axial 6.76 X 32.82mm Glass CE/CSA/UL
Similar Components
BK/HKP-E-R
250V 30A Panel Mount Fuse, Illuminated, Lead Free, 100/Pack
ACK-200
Fuse Slow Blow Acting 200A 72V Stud Mount 95.25 X 29.21 X 26.98mm UL
JJS-200
Fuse Class T Very Fast Acting 200A 600V Bolt Tap Carton CSA/UL
170M1566D
Fuse Square Body 80A 690V Holder Screw 53 X 20.5 X 52mm CE/CSA/UL
KTK-2/10
600V 200mA Holder Mount Fuse
AGC-V-4-R
250V 4A Axial Fuse, UL, CSA, Tin, Through Hole
About AGC-V-1-R

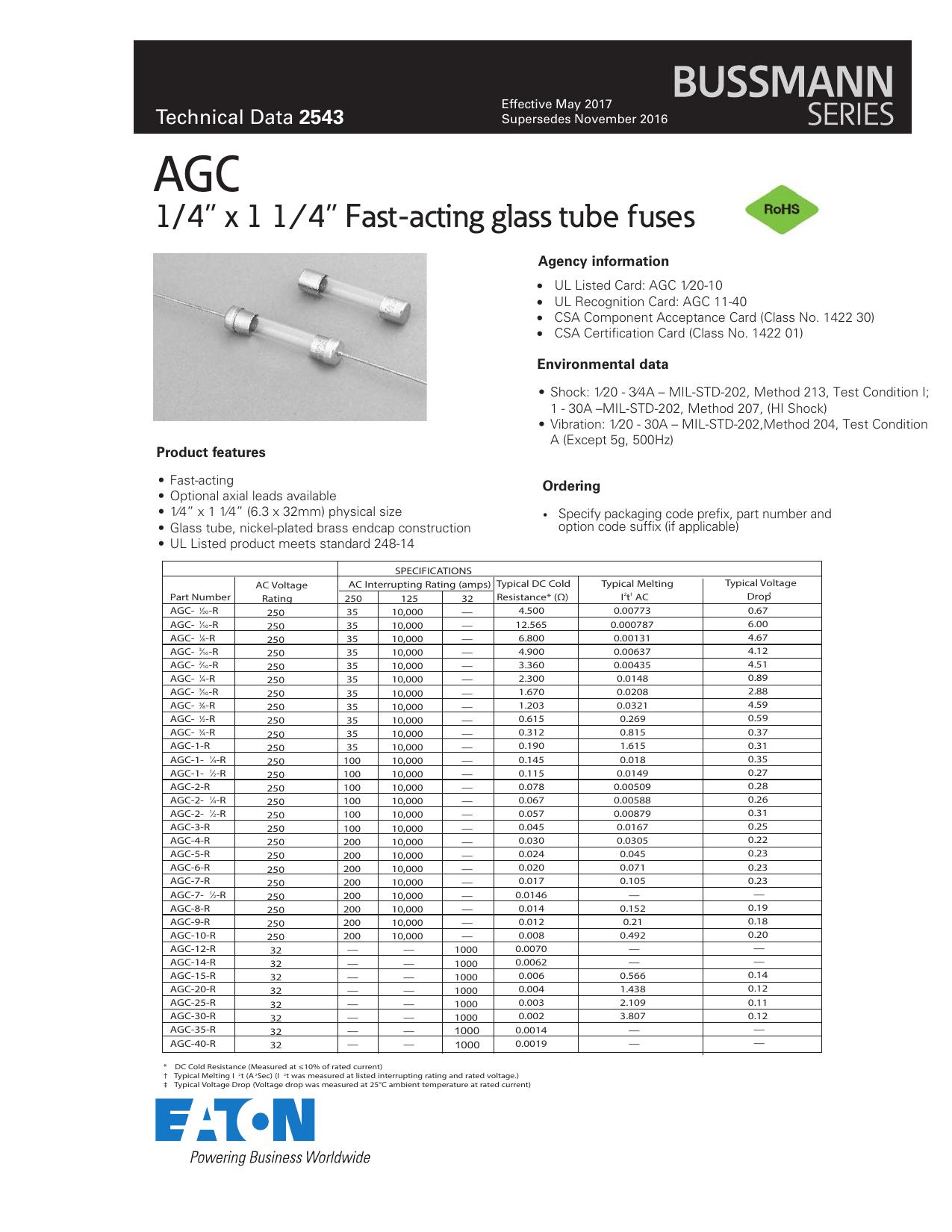

The Eaton AGC-V-1-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Miniature Fast Acting 1A 250V Axial 6.76 X 32.82mm Glass CE/CSA/UL. Key parameters include Approvals: UL, CSA, Contact Plating: Tin, Current Rating: 1A, DC Cold Resistance: 190mR, and DC Rated Voltage: 250V. AGC-V-1-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about AGC-V-1-R specifications
Click to ask a quick question:
Parameters
| Approvals | UL, CSA |
| Contact Plating | Tin |
| Current Rating | 1A |
| DC Cold Resistance | 190mR |
| DC Rated Voltage | 250V |
| Diameter | 6.35mm |
| Lead Length | 38.1mm |
| Length | 1.292inch |
| Mount | Through Hole |
| Mounting Style | AXIAL |
| Package/Case | Axial |
| Package Quantity | 4 |
| Packaging | Bulk |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | AGC |
| Termination | Axial |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Weight | 0.098767oz |
