AGA-1
Fuse Miniature Fast Acting 1A 125V Holder Cartridge 6.35 X 15.88mm Glass Automotive CE/UL
Similar Components
SR-5H-5A-BK
Fuse Subminiature Slow Blow Acting 5A 250V Radial 8.4 X 8.6mm Bulk CCC/PSE/SEMKO/VDE/cULus
HEB-DD
Fuse Holder
HEB-NN
TRON HEB 600V 30A In-Line Fuse, Illuminated, Free Hanging
15600-18-21
18-Pole 30A Panel Mount Fuse, Illuminated, ATO/ATC, 0-65°C
BK/HLT-D
PRINTED CIRCUIT BOARD FUSEHOLDERS
BK/ABC-4-R
General Purpose Fuse Holder, 4A, 125V DC, 250V AC, Holder Mount
About AGA-1

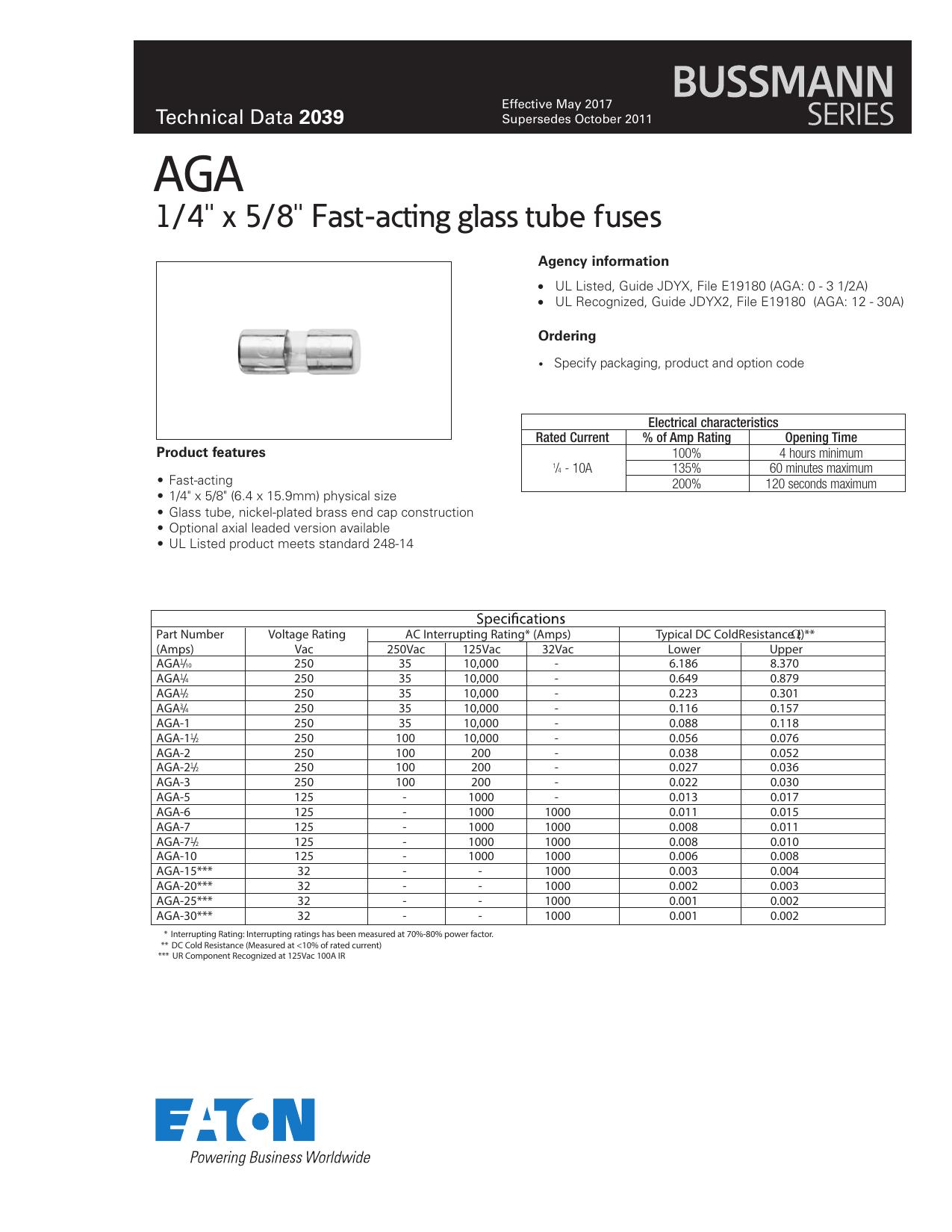

The Eaton AGA-1 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Miniature Fast Acting 1A 125V Holder Cartridge 6.35 X 15.88mm Glass Automotive CE/UL. Key parameters include Approvals: UL, Body Material: Glass, Contact Material: Brass, Contact Plating: Nickel, and Current Rating: 1A. AGA-1 is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about AGA-1 specifications
Click to ask a quick question:
Parameters
| Approvals | UL |
| Body Material | Glass |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 1A |
| DC Cold Resistance | 118mR |
| Diameter | 6.4mm |
| Fuse Current | 1A |
| Fuse Size | 1/4 X 5/8in |
| Length | 15.88mm |
| Max Voltage Rating (AC) | 125V |
| Mount | Holder |
| Package Quantity | 5 |
| Reach SVHC Compliant | No |
| Resistance | 118mR |
| RoHS | Not Compliant |
| RoHS Compliant | No |
| Series | AGA |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| Weight | 0.045856oz |
