ABC-1/4-R
1/4in 250V 250mA Ceramic Fuse Holder
Similar Components
SR-5F-4A-BK
Fast-Acting Fuse 4A 250V Radial 8.5x7.6mm cULus/PSE
MDL-V-2-1/4-R
250V 2.25A Axial Fuse
ABC-V-25-R
125V 25A Axial Fuse, 1/4in X 1-1/4in, Through Hole Mount, UL, CSA
AGW-1
AGW Series 32V 1A Nickel-Plated Clip Termination Fuse
BK/S506-50-R
50mA 250V Time Delay Fuse Holder, Nickel Plated, 5mm x 20mm, 100-Pack
ATC-10
32V 10A Holder Mount Fuse, 32V DC Rated, UL Approved
About ABC-1/4-R

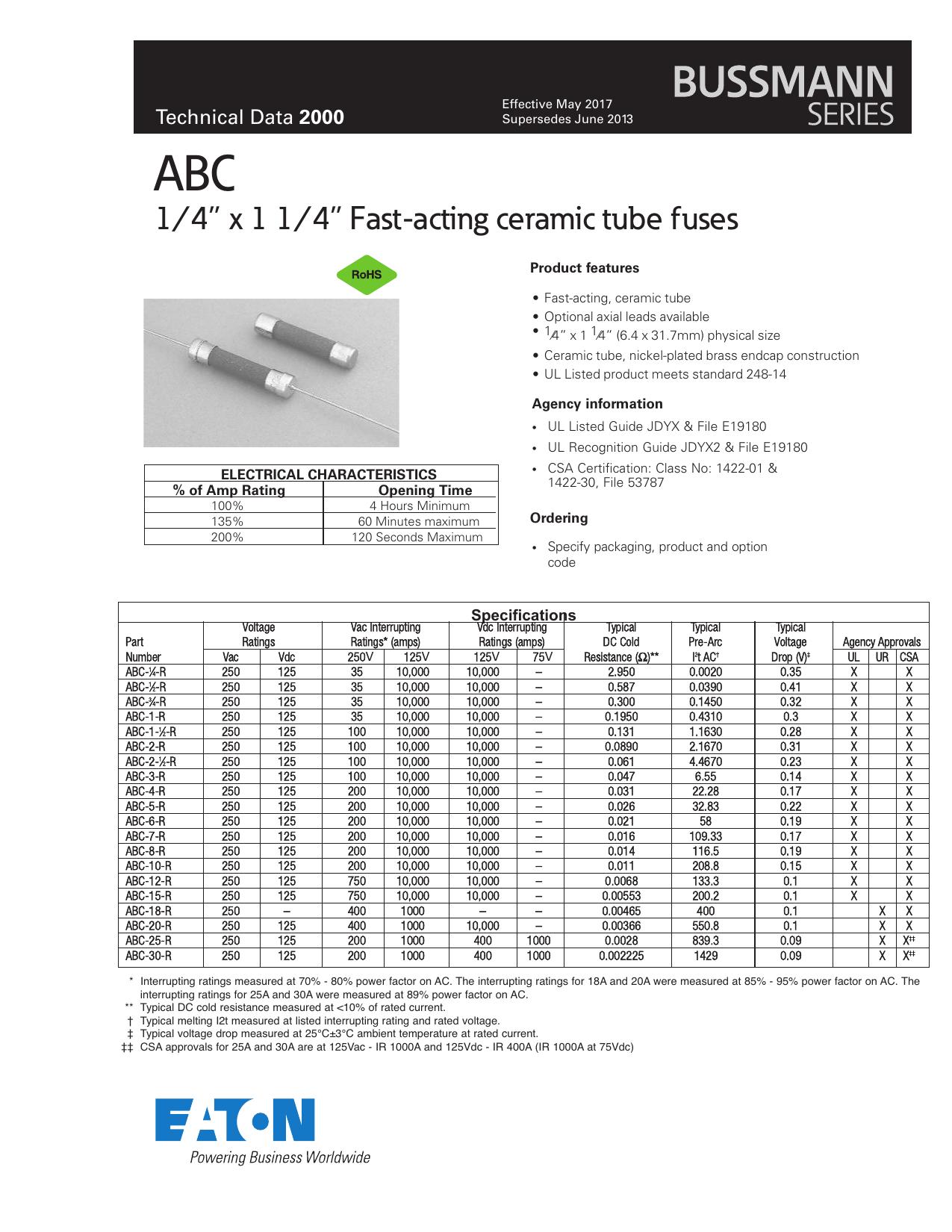

The Eaton ABC-1/4-R Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 1/4in 250V 250mA Ceramic Fuse Holder. Key parameters include Approvals: UL, CSA, Body Material: Ceramic, Contact Plating: Nickel, Current Rating: 250mA, and DC Cold Resistance: 2.95R. ABC-1/4-R is manufactured by Eaton as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about ABC-1/4-R specifications
Click to ask a quick question:
Parameters
| Approvals | UL, CSA |
| Body Material | Ceramic |
| Contact Plating | Nickel |
| Current Rating | 250mA |
| DC Cold Resistance | 2.95R |
| DC Rated Voltage | 125V |
| Diameter | 6.35mm |
| Fuse Size | 1/4 X 1-1/4in |
| Length | 31.75mm |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Holder |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 2.95R |
| RoHS | Compliant |
| Series | ABC |
| Termination | Clip |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Weight | 0.096oz |
