39502000440
200mA Radial Lead Free Fuse, 125V, 85°C, Through Hole
Similar Components
04820010ZXBF
10-Pole 20A 125V Through Hole Fuse
LFJ102001C
Fuse Holder FUSEHOLDER FOR SPFJ 1000V 200A
LA050URD32TTI1800
Fuse Square Body Very Fast Acting 1800A 500V Bolt Flat 50.6 X 60.3 X 67mm UL
04980900ZXT
200A 32V Illuminated Fuse Holder, Panel Mount, Steel Contacts
01550104ZXU
Fuse Holder In Line Wire Bulk
03453HS1H
250V 20A Panel Mount Fuse, Illuminated, Lead Free, -40°C to 85°C
About 39502000440

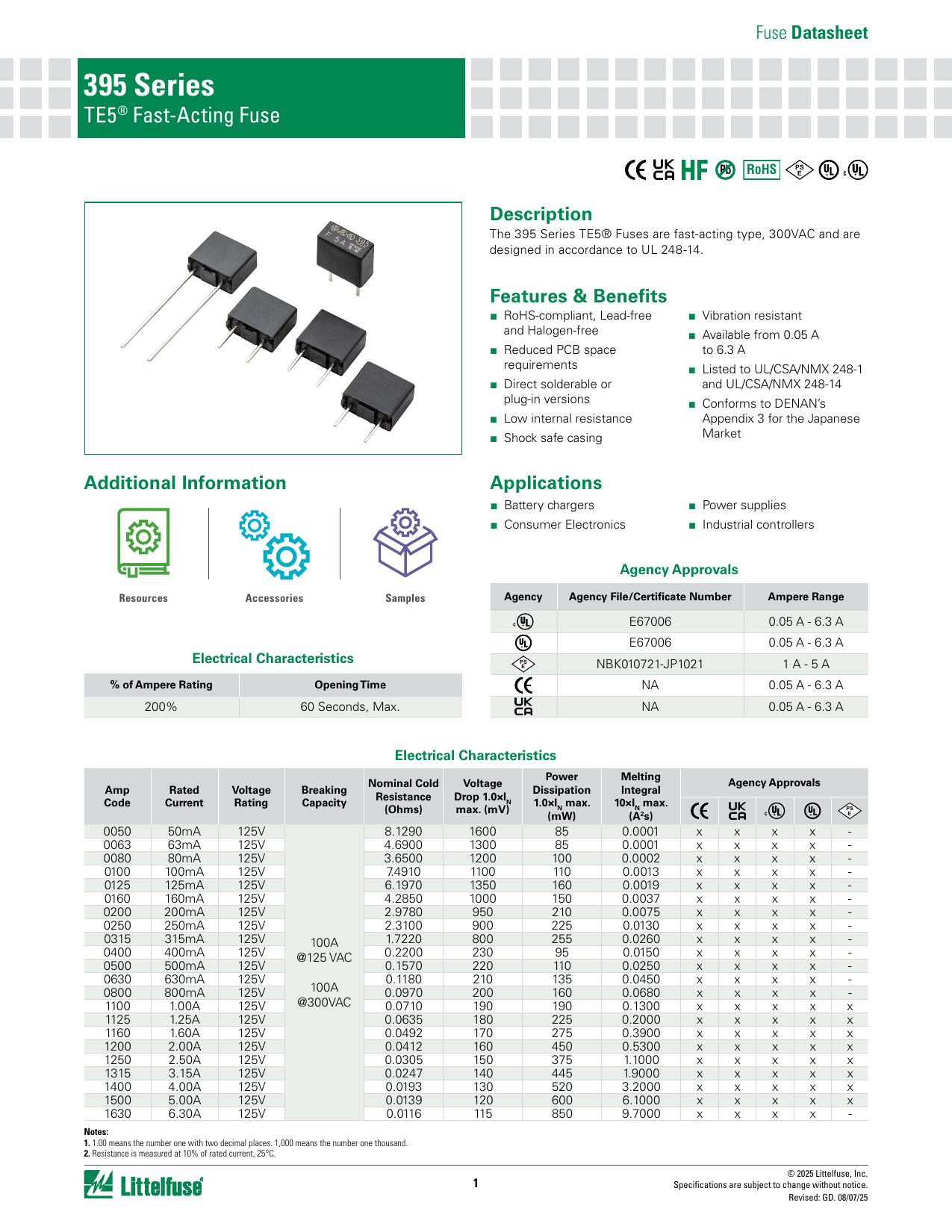

The Littelfuse 39502000440 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 200mA Radial Lead Free Fuse, 125V, 85°C, Through Hole. Key parameters include Color: Brown, Current Rating: 200mA, DC Cold Resistance: 2.978R, DC Rated Voltage: 125V, and Flammability Rating: UL94 V-0. 39502000440 is manufactured by Littelfuse as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about 39502000440 specifications
Click to ask a quick question:
Parameters
| Color | Brown |
| Current Rating | 200mA |
| DC Cold Resistance | 2.978R |
| DC Rated Voltage | 125V |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 200mA |
| Height | 4mm |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package/Case | Radial |
| Package Quantity | 1400 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | TE5® 395 |
| Size | 8mm |
| Termination | Radial |
| Voltage Rating (AC) | 125V |
| Width | 8mm |
| Working Voltage | 125V |
