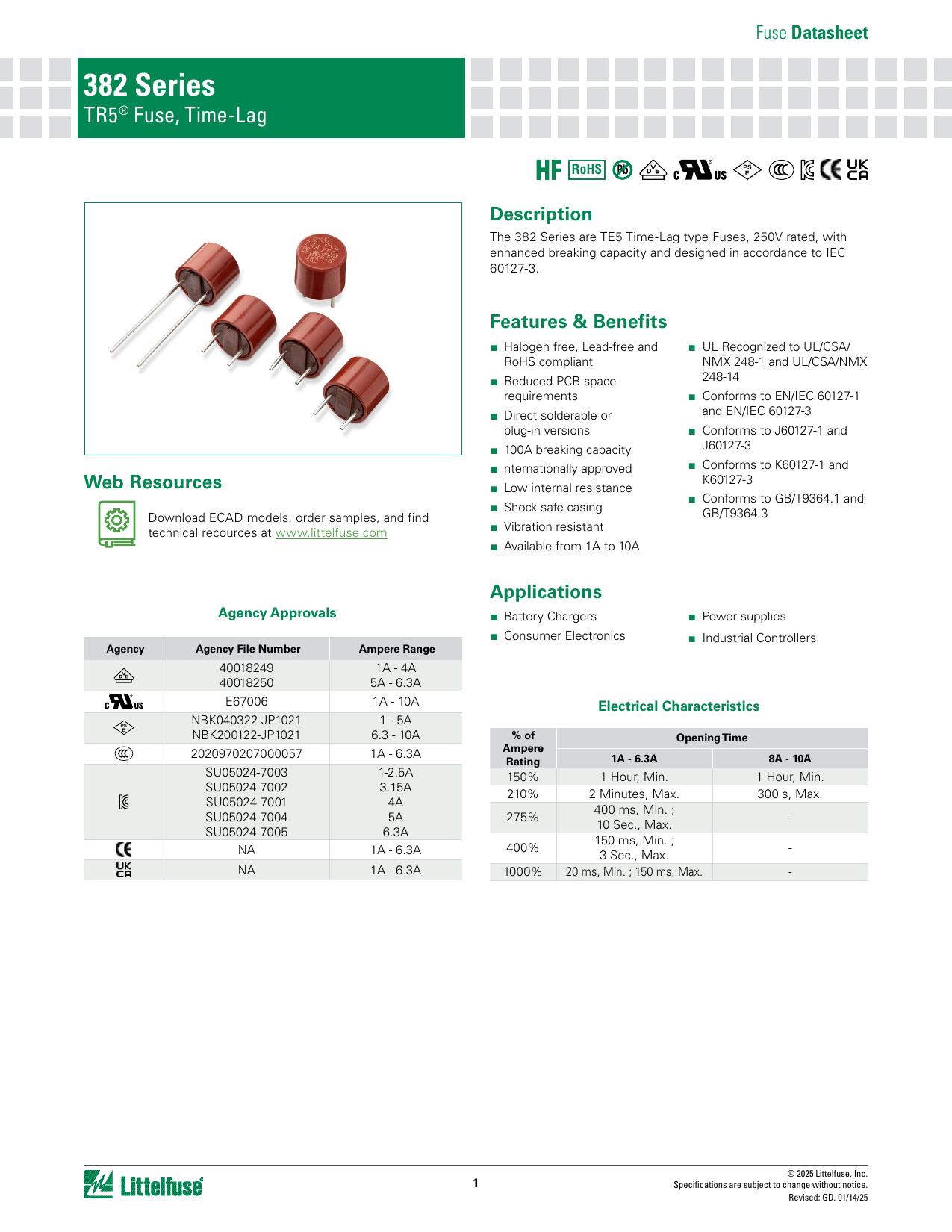

The Littelfuse 38211000410 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Subminiature Slow Blow Acting 1A 250V Radial 8.5 X 8mm Thermoplastic Bulk CCC/CQC/KC/PSE/SEMKO/UL/VDE/cULus. Key parameters include Blow Characteristic: TIME DELAY, Color: Brown, Contact Material: Copper, Current Rating: 1A, and DC Cold Resistance: 62.5mR. 38211000410 is manufactured by Littelfuse as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer: Littelfuse
Category: Fuses Fuse Holders

Ask AI Assistant

Ask questions about 38211000410 specifications

AI Powered

Click to ask a quick question:

Parameters

Blow Characteristic	TIME DELAY
Color	Brown
Contact Material	Copper
Current Rating	1A
DC Cold Resistance	62.5mR
DC Rated Voltage	250V
Flammability Rating	UL94 V-0
Fuse Current	1A
Lead Free	Lead Free
Length	8mm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole
Package/Case	Radial
Package Quantity	1000
Packaging	Bulk
Power Dissipation	400mW
Reach SVHC Compliant	Unknown
Resistance	62.5mR
RoHS	Compliant
RoHS Compliant	Yes
Series	TR5® 382
Termination	Radial
Voltage Rating (AC)	250V
