3541800002
Fuse Miniature Fast Acting 8A 440V Holder Cartridge 6.3 X 32mm Ceramic T/R UL
Similar Components
SMF15A
TVS DIODE 15V 24.4V SOD123F
0FHA0001ZXJ
The 0FHA0001ZXJ is a 32V 20A axial fuse from Littelfuse, designed for free hanging applications. It features an illuminated type and operates within a temperature range of -10°C to 80°C. The fuse measures 29.9mm in length and has wire leads for termination. It is available in a bulk packaging quantity of 1000 units.
SMBJ150CA
Bidirectional transient voltage suppressor diode, 600W peak pulse power, 150V reverse standoff voltage. Features 243V clamping voltage, 185V max breakdown voltage, and 167V min breakdown voltage. Operates from -55°C to 150°C with a 2.5A peak pulse current rating. Surface mountable in a DO-214AA package, this silicon component offers 1 bidirectional channel and is RoHS compliant.
SMBJ64A
Unidirectional surface mount TVS diode for power line protection. Features a 64V reverse standoff voltage, 71.1V minimum breakdown voltage, and 103V clamping voltage. Handles 5.9A peak pulse current with 600W peak pulse power dissipation. Operates from -65°C to 150°C in a DO-214AA package.
SMAJ51CA
Bidirectional TVS Diode, 51V DC Rated Voltage, 56.7V Minimum Breakdown Voltage, and 62.7V Maximum Breakdown Voltage. Features 82.4V Clamping Voltage, 4.9A Peak Pulse Current, and 400W Peak Pulse Power. This surface mount component in a DO-214AC package offers a maximum operating temperature of 150°C and a leakage current of 1uA. RoHS compliant and lead-free.
39812500000
The TE5 398 fuse is a radial lead free through hole fuse with a current rating of 2.5A and a voltage rating of 65V. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is packaged in a tape and reel with 1400 units per package. It meets the UL94 V-0 flammability rating and is lead free.
About 3541800002

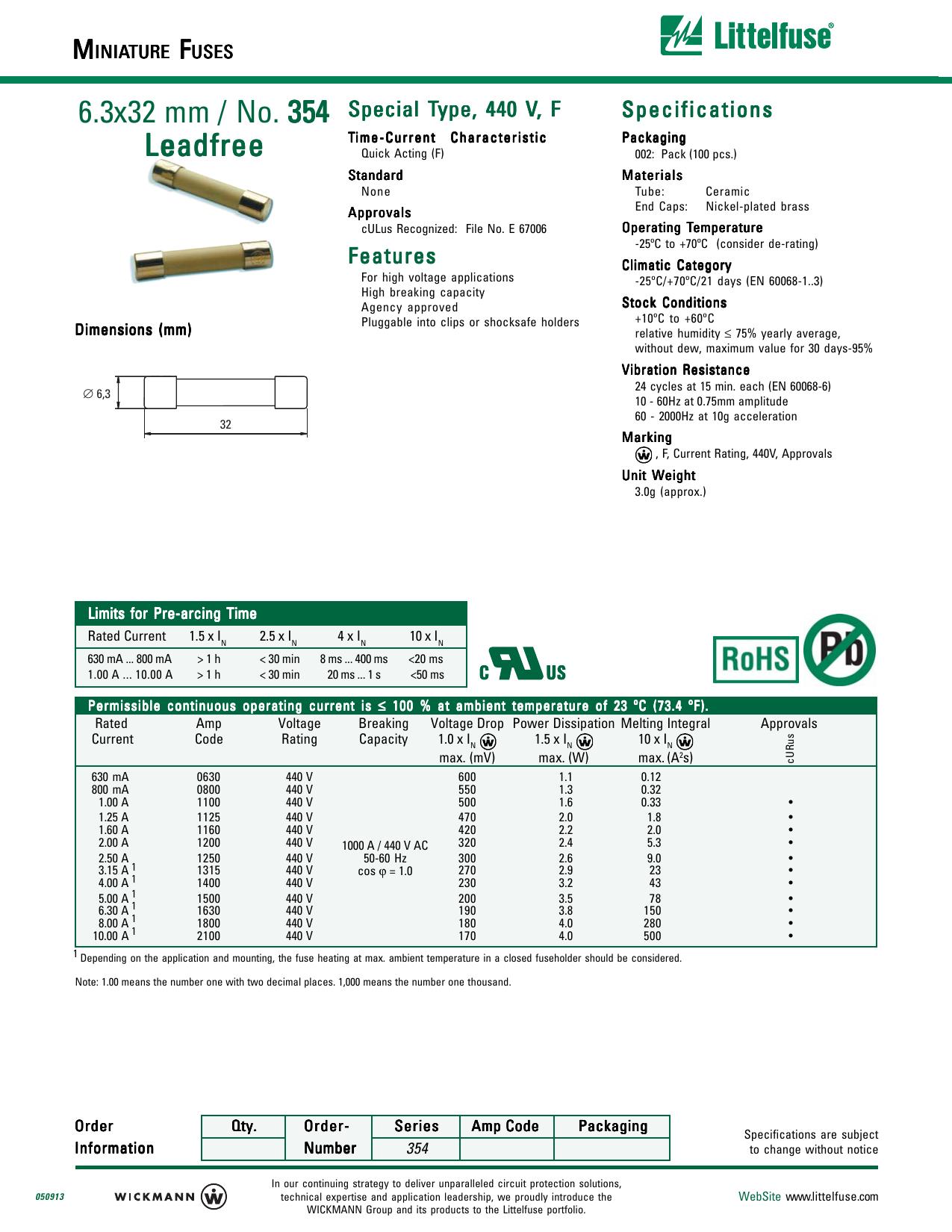

The Littelfuse 3541800002 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Miniature Fast Acting 8A 440V Holder Cartridge 6.3 X 32mm Ceramic T/R UL. Key parameters include Current Rating: 8A, Length: 32mm, Package Quantity: 100, RoHS: Compliant, and RoHS Compliant: Yes. 3541800002 is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 3541800002 specifications
Click to ask a quick question:
Parameters
| Current Rating | 8A |
| Length | 32mm |
| Package Quantity | 100 |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | 354 |
| Termination | Clip |
| Voltage Rating (AC) | 440V |
