3030250042
Fuse Subminiature Fast Acting 0.25A 125V Radial 6 X 8mm Bulk CSA/UL
Similar Components
LPSC0001ZXID
1-Pole 30A 600V Illuminated DIN Rail Fuse Holder
03440802Z
14V 15A Panel Mount Fuse, 0.25 Dia x 1.26 L, Thermoplastic, UL94 V-0
03450711X
250V 20A Panel Mount Fuse, 0.25 Dia x 1.26 L, Lead Free, UL94 V-0
37201600411
Time Delay Fuse 160mA 250V Radial 8.5x8mm UL94 V-0
03455QS2H
250V 10A Panel Mount Fuse, Illuminated, Lead Free, UL94 V-0
03453LS8HXLNP
Fuse Holder Panel Mount
About 3030250042

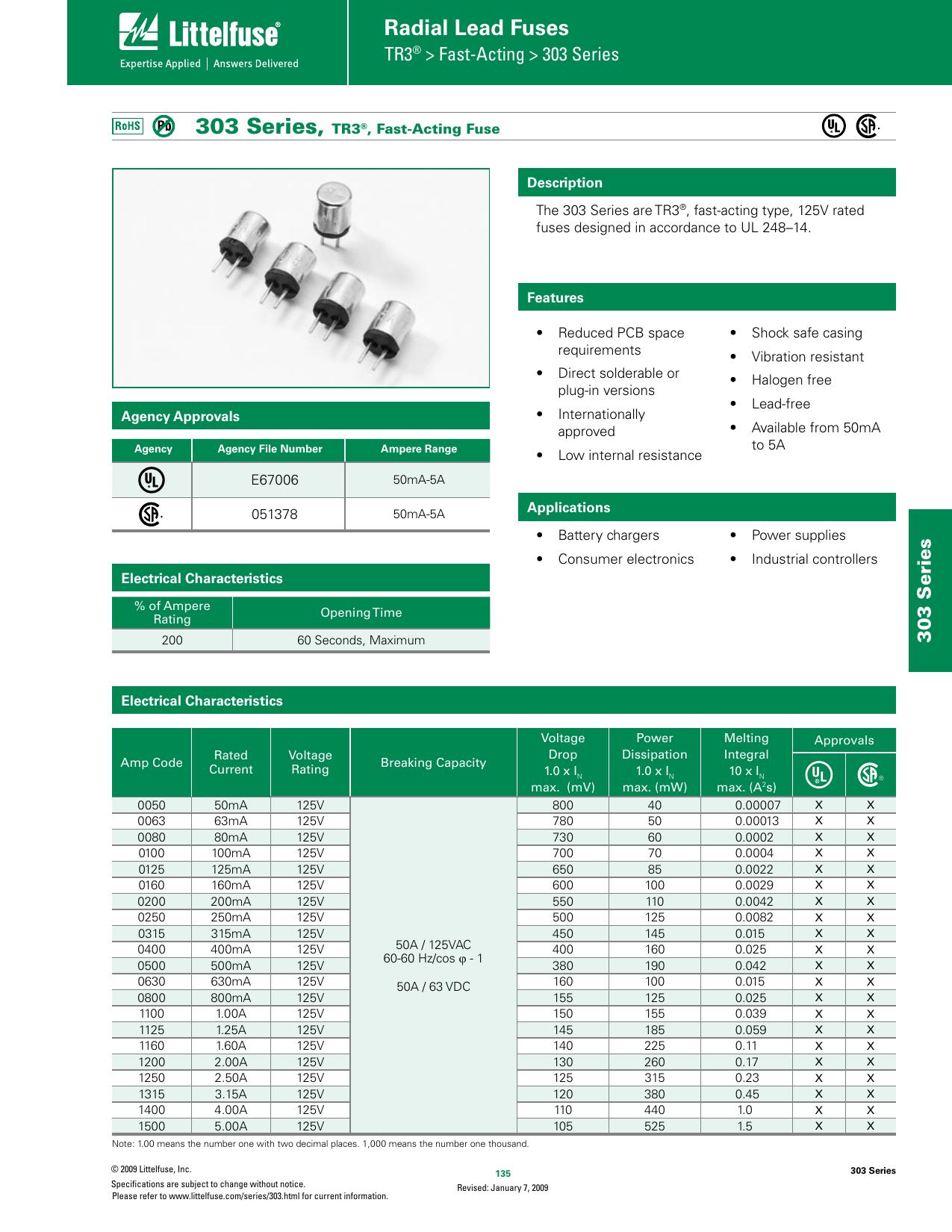

The Littelfuse 3030250042 Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Fuse Subminiature Fast Acting 0.25A 125V Radial 6 X 8mm Bulk CSA/UL. Key parameters include Current Rating: 250mA, DC Rated Voltage: 125V, Package Quantity: 300, Resistance: 2R, and RoHS: Compliant. 3030250042 is manufactured by Littelfuse as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Fuses Fuse Holders
Ask AI Assistant
Ask questions about 3030250042 specifications
Click to ask a quick question:
Parameters
| Current Rating | 250mA |
| DC Rated Voltage | 125V |
| Package Quantity | 300 |
| Resistance | 2R |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | 303 |
| Termination | Radial |
| Voltage Rating (AC) | 125V |
