209-3-1-64-3-9-100
Circuit Breaker Hydraulic Magnetic 3Pole 100A 120VAC/240VAC
Similar Components
7854-15-35-I
Circuit Breaker Thermal 35A 120VAC
219-3-1REC4-65-8-4-40
Circuit Breaker Magnetic 3Pole 40A 480VAC
UPG1-1-62-602-01
Hydraulic Magnetic Switch, Panel Mount, 6A, 2s-20s Trip Time, -40 to 85°C
AP17-1-51-702
Circuit Breaker Hydraulic Magnetic 2Pole 7A 50VDC
UPL11-1-65F-103
Circuit Breaker Magnetic 2Pole 10A
229D-2-1-65F-4-9-90
240VAC 90A Hydraulic Magnetic Relay, 2-Pole, 4-Terminal Panel Mount
About 209-3-1-64-3-9-100

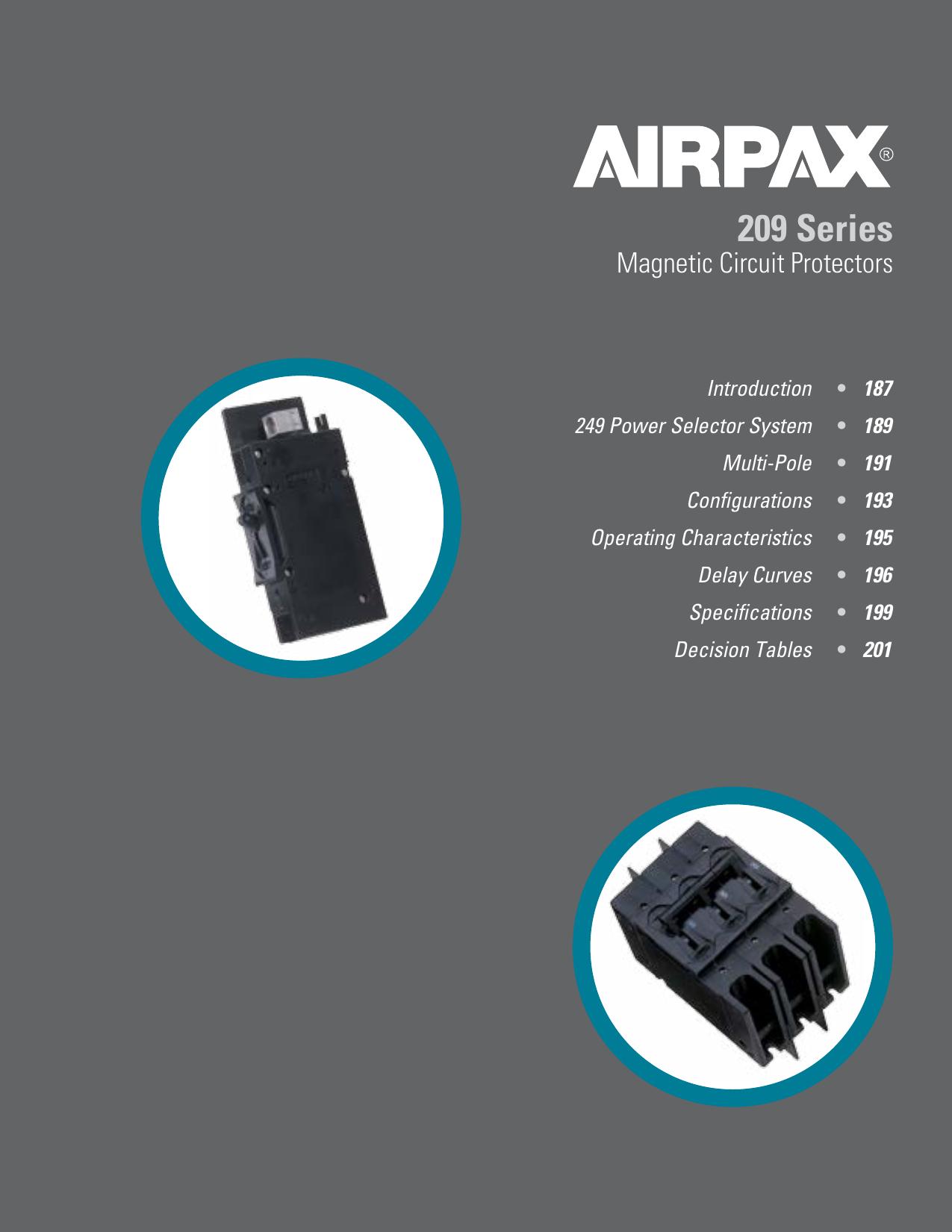

The Sensata 209-3-1-64-3-9-100 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Hydraulic Magnetic 3Pole 100A 120VAC/240VAC. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 100. 209-3-1-64-3-9-100 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 209-3-1-64-3-9-100 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 100 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200040 |
| Mounting | Panel Mount |
| Number of Poles | 3 |
| Number of Terminals | 6 |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
| Terminal Design | Stud |
| Trip Time | 0.1s to 1.5s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 120VAC|240VAC |
