209-2-1-63-3-5M-25-A
Hydraulic Magnetic Switch 120VAC/240VAC 25A 20-200s Trip Time Panel Mount
Similar Components
APL1-1-52-253
Circuit Breaker Magnetic 1Pole
219-3-1REC5-65-7-9-65
Circuit Breaker Magnetic 3Pole 65A 600VAC
205-11-1-52-1-302-A
Circuit Breaker Magnetic 2Pole 32VDC
AP1-1-62-202
Circuit Breaker Hydraulic Magnetic 1Pole 2A 240VAC
209-2-1REC5-61-3-9-35
Circuit Breaker Magnetic 2Pole 35A 240VAC
209-2-1REC4-63-3-9-5-AH
Circuit Breaker Magnetic 2Pole 5A 240VAC
About 209-2-1-63-3-5M-25-A

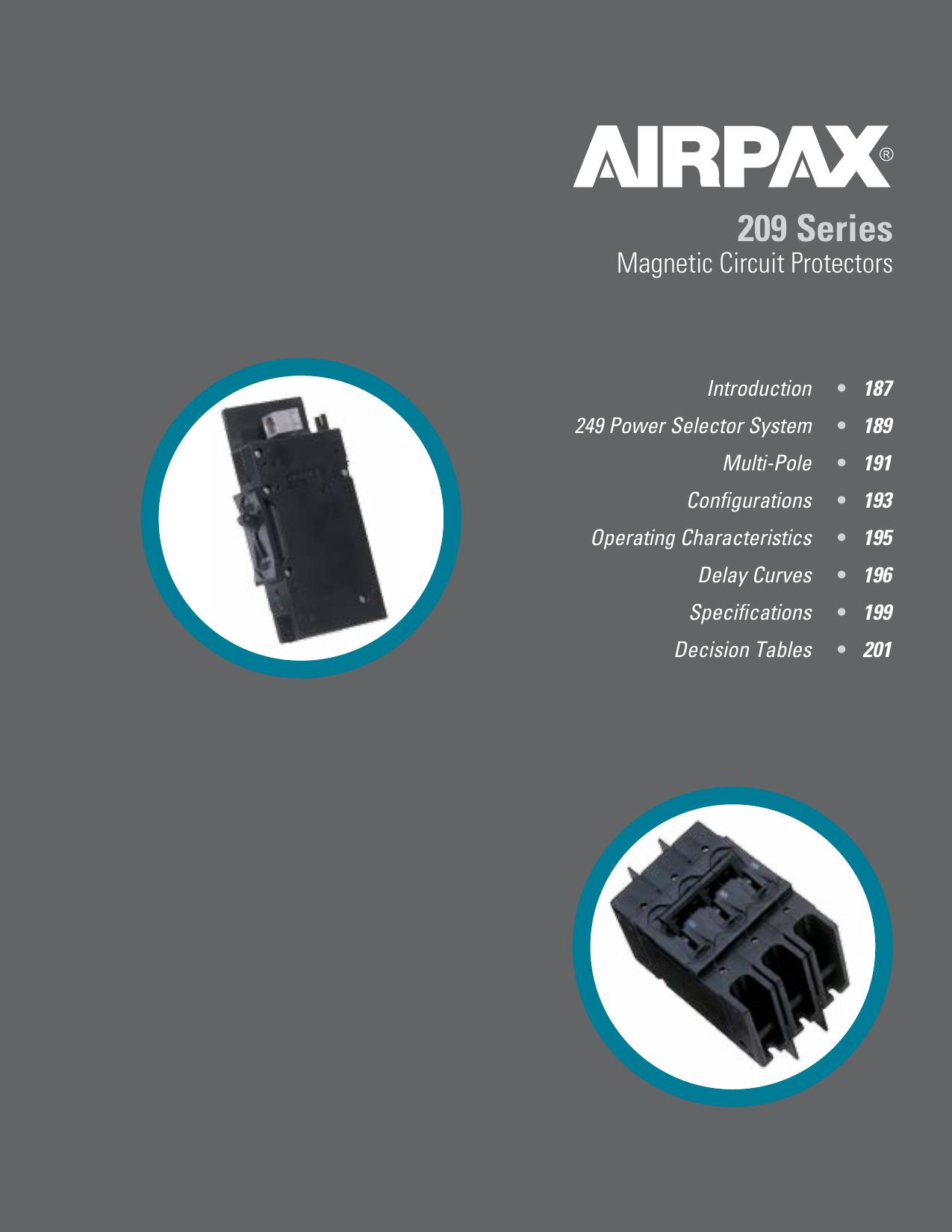

The Sensata 209-2-1-63-3-5M-25-A Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Hydraulic Magnetic Switch 120VAC/240VAC 25A 20-200s Trip Time Panel Mount. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 25. 209-2-1-63-3-5M-25-A is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 209-2-1-63-3-5M-25-A specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 25 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200040 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
| Terminal Design | Screw |
| Trip Time | 20s to 200s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 120VAC|240VAC |
