209-2-1-61-3-9M-50-AH
Circuit Breaker Hydraulic Magnetic 2Pole 50A 120VAC/240VAC
Similar Components
PDLA-135-I
Circuit Breaker Thermal 135A 30VDC
229-3-1-62-4-9-20
Circuit Breaker Hydraulic Magnetic 3Pole 20A 240VAC
AP112-1-71-702
Circuit Breaker Hydraulic Magnetic 3Pole 7A 240VAC
UPGNF66-1-72-152
Circuit Breaker Magnetic 2Pole 1.5A
229-2-1-62-8-8-2
Circuit Breaker Hydraulic Magnetic 2Pole 2A 480VAC
UPGH111-1-66-902-01
Circuit Breaker Magnetic 3Pole 9A
About 209-2-1-61-3-9M-50-AH

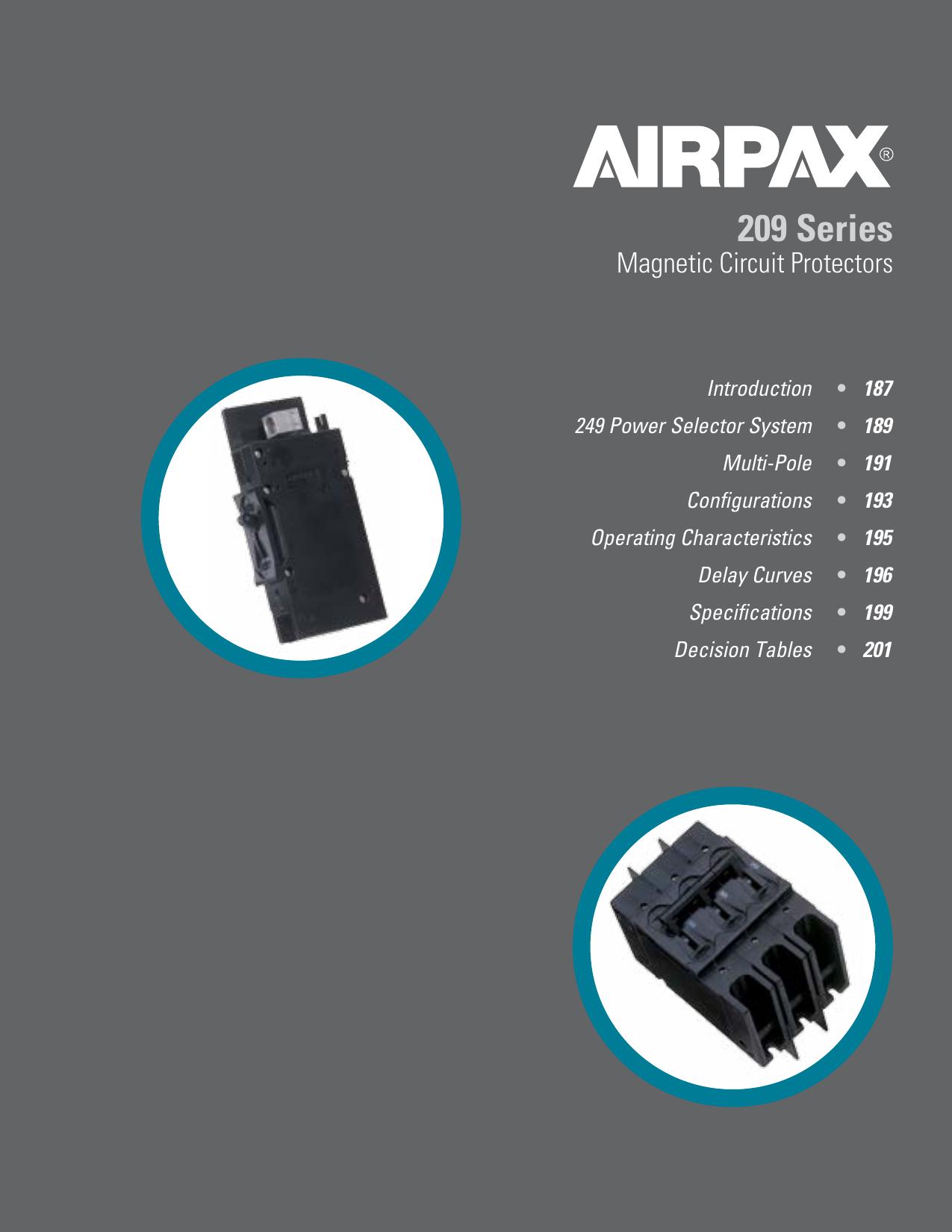

The Sensata 209-2-1-61-3-9M-50-AH Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Hydraulic Magnetic 2Pole 50A 120VAC/240VAC. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 50. 209-2-1-61-3-9M-50-AH is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 209-2-1-61-3-9M-50-AH specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 50 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200040 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
| Terminal Design | Stud |
| Trip Time | 0.1s to 0.8s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 120VAC|240VAC |
