209-2-1-61-3-9M-20-AH
Circuit Breaker Hydraulic Magnetic 2Pole 20A 120VAC/240VAC
Similar Components
219-2-1REC4-63-5-9-60-A-V
Hydraulic Magnetic Relay, 2-Pole, 65A, 480VAC, Panel Mount
CA-8
Circuit Breaker Thermal 8A 120VAC
UPL11-1-65-153-C
Circuit Breaker Magnetic 2Pole 15A
CM-35-I
Circuit Breaker Thermal 35A 120VAC
UPG1-1-51-802-A-91
Hydraulic Magnetic Switch, 8A, 0.1s to 1.2s Trip Time, Panel Mount
PSA-10
Circuit Breaker Thermal 10A 30VDC
About 209-2-1-61-3-9M-20-AH

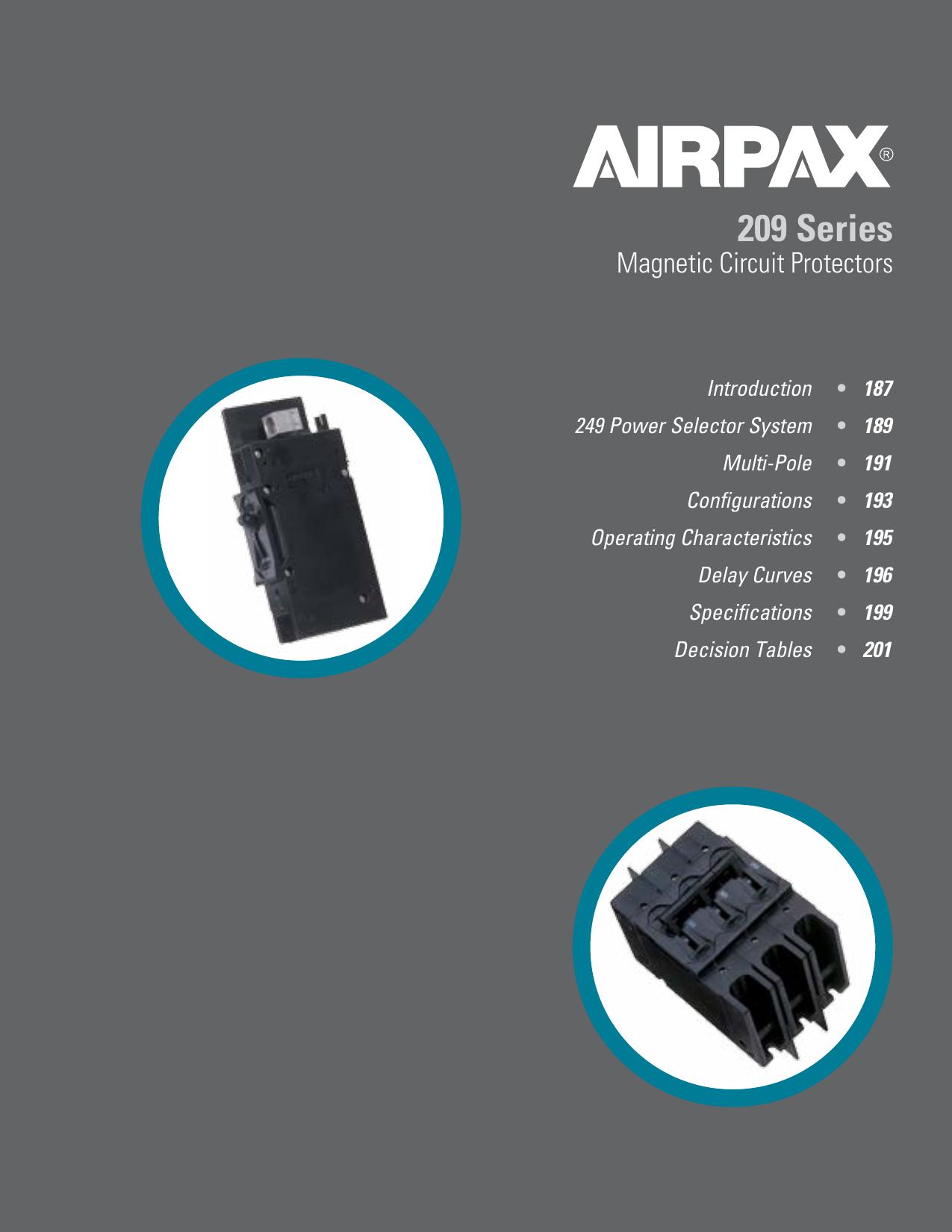

The Sensata 209-2-1-61-3-9M-20-AH Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Hydraulic Magnetic 2Pole 20A 120VAC/240VAC. Key parameters include Actuator Type: Handle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 20. 209-2-1-61-3-9M-20-AH is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 209-2-1-61-3-9M-20-AH specifications
Click to ask a quick question:
Parameters
| Actuator Type | Handle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 20 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200040 |
| Mounting | Panel Mount |
| Number of Poles | 2 |
| Number of Terminals | 4 |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
| Terminal Design | Stud |
| Trip Time | 0.1s to 0.8s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 120VAC|240VAC |
