209-1-1-52-2-2-35
Circuit Breaker Magnetic 1Pole 35A 125VDC
Similar Components
AP12-1-61-751
Circuit Breaker Hydraulic Magnetic 2Pole 0.75A 240VAC
7851-13-15-I
Circuit Breaker Thermal 15A 120VAC
AP7-1-72F-103
Circuit Breaker Hydraulic Magnetic 1Pole 10A 240VAC
209-1-1-64F-4-9-100
240VAC Hydraulic Magnetic Relay, Panel Mount, 100A, 0.1s to 1.5s Trip Time
7851-37-60
Circuit Breaker Thermal 60A 120VAC
219-3-1-62-5-9-40-H-V
Circuit Breaker Magnetic 3Pole 40A 480VAC
About 209-1-1-52-2-2-35

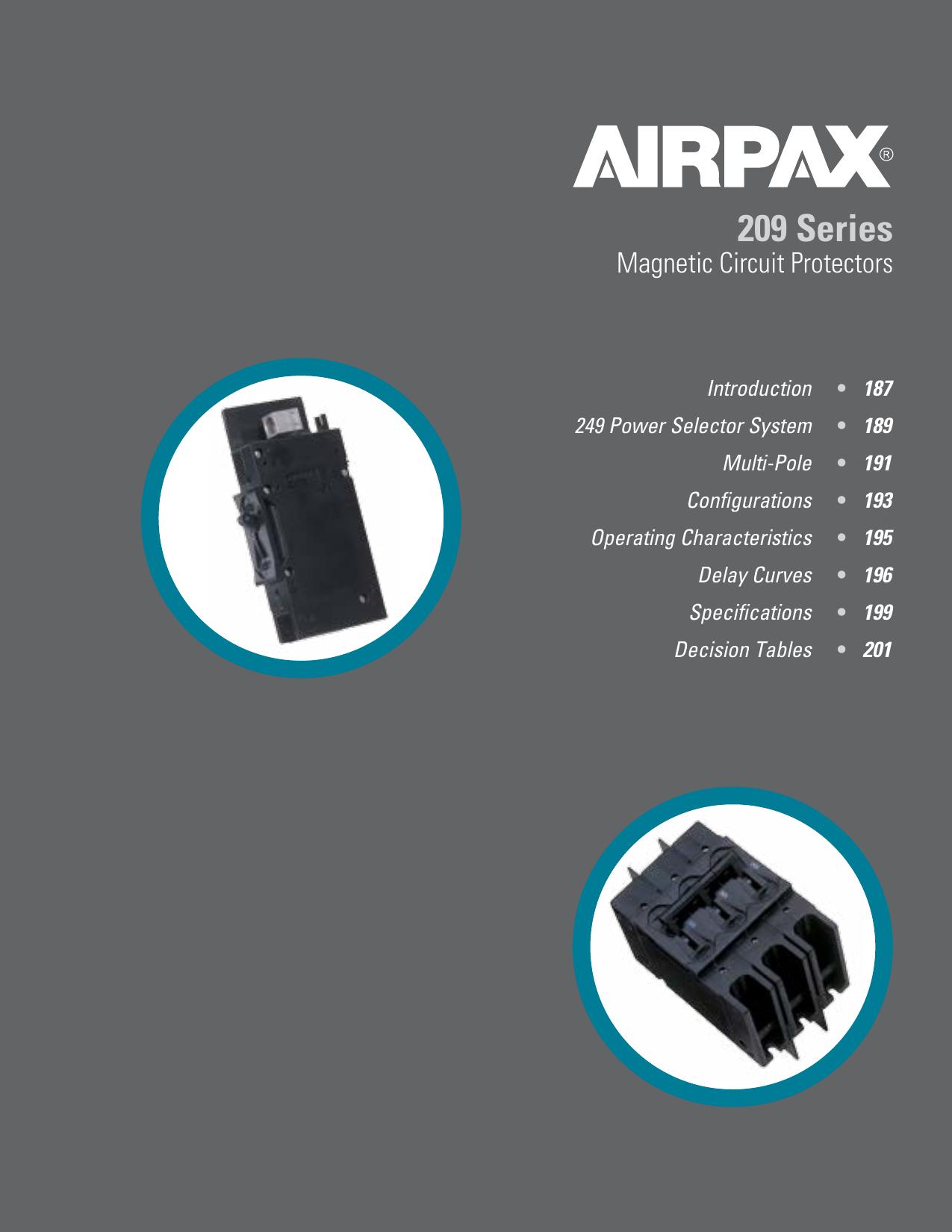

The Sensata 209-1-1-52-2-2-35 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Magnetic 1Pole 35A 125VDC. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 35. 209-1-1-52-2-2-35 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 209-1-1-52-2-2-35 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 35 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Mounting | Panel Mount |
| Number of Poles | 1 |
| Number of Terminals | 2 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
| Schedule B | 8536200020 |
| Terminal Design | Solderless Connector |
| Trip Time | 0.7s to 20s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 125VDC |
