205-111-1-42-4A-752
Circuit Breaker Magnetic 3Pole 7.5A 250VAC
Similar Components
219-3-1-65-5-8-45-AH-V
Circuit Breaker Magnetic 3Pole 45A 480VAC
205-11-1-52-1-302-A
Circuit Breaker Magnetic 2Pole 32VDC
SDLM-100-1
Circuit Breaker Thermal 100A 30VDC
209-3-1REC4-43-3-9-15-A
Circuit Breaker Magnetic 3Pole 15A 240VAC
CA-20
Circuit Breaker Thermal 20A 120VAC
UPG1-1-66F-302-C-09
Circuit Breaker Magnetic 1Pole 3A
About 205-111-1-42-4A-752

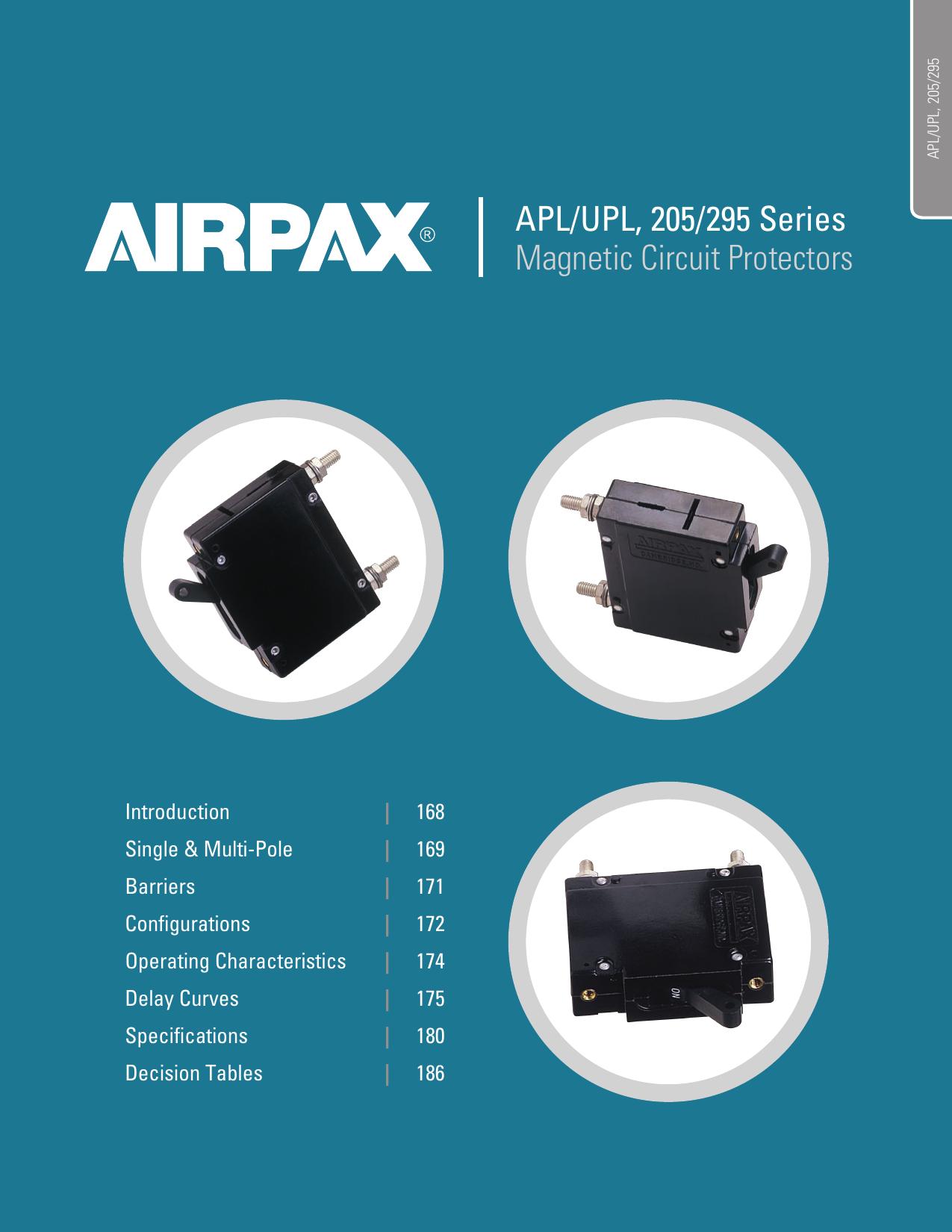

The Sensata 205-111-1-42-4A-752 Hardware datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Circuit Breaker Magnetic 3Pole 7.5A 250VAC. Key parameters include Actuator Type: Toggle, AEC Qualified: No, Automotive: No, Cage Code: 82647, and Current Rating: 7.5. 205-111-1-42-4A-752 is manufactured by Sensata as part of their Hardware product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sensata
- Category
- Hardware
Ask AI Assistant
Ask questions about 205-111-1-42-4A-752 specifications
Click to ask a quick question:
Parameters
| Actuator Type | Toggle |
| AEC Qualified | No |
| Automotive | No |
| Cage Code | 82647 |
| Current Rating | 7.5 |
| ECCN | EAR99 |
| EU RoHS | Yes |
| HTS Code | 8536200020 |
| Max Operating Temperature | 85 |
| Min Operating Temperature | -40 |
| Mounting | Panel Mount |
| Number of Poles | 3 |
| Number of Terminals | 6 |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU |
| Schedule B | 8536200020 |
| Trip Time | 2s to 22s |
| Type | Hydraulic Magnetic |
| Voltage Rating | 250VAC |
