1591XXDFLBK

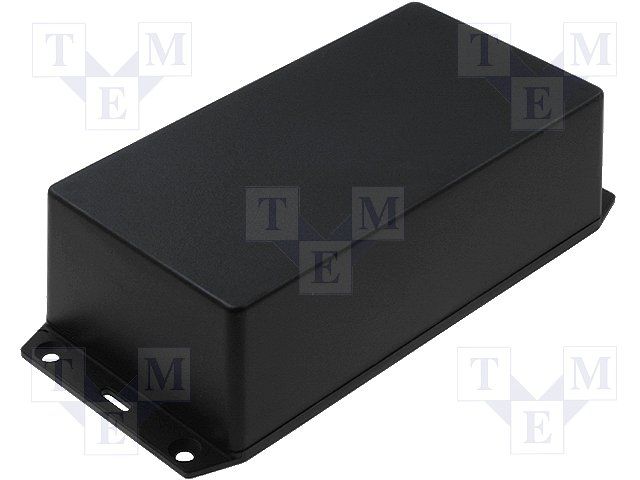

General Purpose ABS Plastic Box, Black, IP54, 6.001inch x 3.245inch x 2.057inch
Similar Components
1447AC10
Electrical Enclosures NEMA12 24X25.5X10
1455D602
Aluminum Enclosure, 60mm Depth, 25mm Height, Anodized Finish, IP54
1418JJ9
Electrical Enclosures LARGE JIC 24HX24WX9D
1459FGY2
OPEN FRAME RELAY RACK, 24.7IN, STEEL - More Details
1414N4PHSSL6LP
Enclosures, Boxes, u0026 Cases 1414N4PH SS
1458E4
General Purpose Metal Enclosure, Black, 101mm Height, 254mm Length, 203mm Width, 3.7lb Weight
About 1591XXDFLBK
The Hammond 1591XXDFLBK Enclosures Boxes Racks datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: General Purpose ABS Plastic Box, Black, IP54, 6.001inch x 3.245inch x 2.057inch. Key parameters include Body Depth: 82mm, Body Material: ABS, Color: Black, Flammability Rating: UL94 V-0, and Height: 2.057inch. 1591XXDFLBK is manufactured by Hammond as part of their Enclosures Boxes Racks product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Hammond
- Category
- Enclosures Boxes Racks
Ask AI Assistant
Ask questions about 1591XXDFLBK specifications
Click to ask a quick question:
Parameters
| Body Depth | 82mm |
| Body Material | ABS |
| Color | Black |
| Flammability Rating | UL94 V-0 |
| Height | 2.057inch |
| Housing Color | Black |
| Length | 6.001inch |
| Material | Plastic, ABS, ACRYLONITRILE BUTADIENE STYRENE |
| Mount | Box |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP54 |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 1591XXFL |
| Thickness | 0.079inch |
| Weight | 0.26lb |
| Width | 3.245inch |
