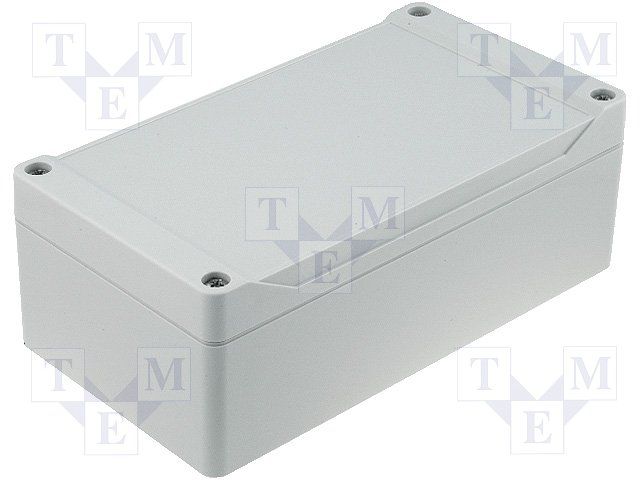

1555JGY
BOX ABS GRAY 6.3L X 3.54W
Similar Components
1590TRPCYL
BOX ALUM PURPLE 5.95L X 3.74W
RP1240
Enclosures, Boxes, u0026 Cases 6.50 x 4.92 x 2.95 Watertight
1457K1201E
Aluminum Shielded Box, Black, Clear, Natural, Beige, IP54, 1.855 x 3.425 x 5.118 inch
1418N4Y24
Electrical Enclosures 1418N4 72X37X24
1416M
Steel Enclosure 8x8x12in Grey, Steel, External Mount
PJU14126CCHF
Grey Enclosure, 7.01 x 14.5 x 12.27 inch, IP66, 8lb, Box Mount
About 1555JGY
The Hammond 1555JGY Enclosures Boxes Racks datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: BOX ABS GRAY 6.3L X 3.54W. Key parameters include Approvals: UL, NEMA, Body Material: ABS, Color: Grey, Depth: 2.4inch, and Flammability Rating: UL94 HB. 1555JGY is manufactured by Hammond as part of their Enclosures Boxes Racks product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Hammond
- Category
- Enclosures Boxes Racks
Ask AI Assistant
Ask questions about 1555JGY specifications
Click to ask a quick question:
Parameters
| Approvals | UL, NEMA |
| Body Material | ABS |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 HB |
| Height | 60mm |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 160mm |
| Material | ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 1555 |
| Weight | 1lb |
| Width | 3.5inch |
