1457J1201
HAMMOND 1457J1201 Enclosure, Watertight, Extruded, EMI / RFI, Anodised, IP54, PCB Box, 31.47 mm, 86.96 mm, 131.15 mm
Similar Components
1427N2
General Purpose Enclosure, Steel Chrome, 3.75inch Length, Screw Mount
1455K1602BK
Aluminum Desktop Enclosure, Black Anodized, IP40, 1.693 x 3.071 x 6.299 inches
1550DBK
Aluminium Metal Enclosure, Black, 115mm x 2.52inch x 54.9mm, IP54
1418U20
Electrical Enclosures NEMA12 PNL 72X30X20
C3R886SC
Electrical Enclosures 8 x 8 x 6\
EN4SD202010LG
Electrical Enclosures NEMA 4 20X20X10\
About 1457J1201

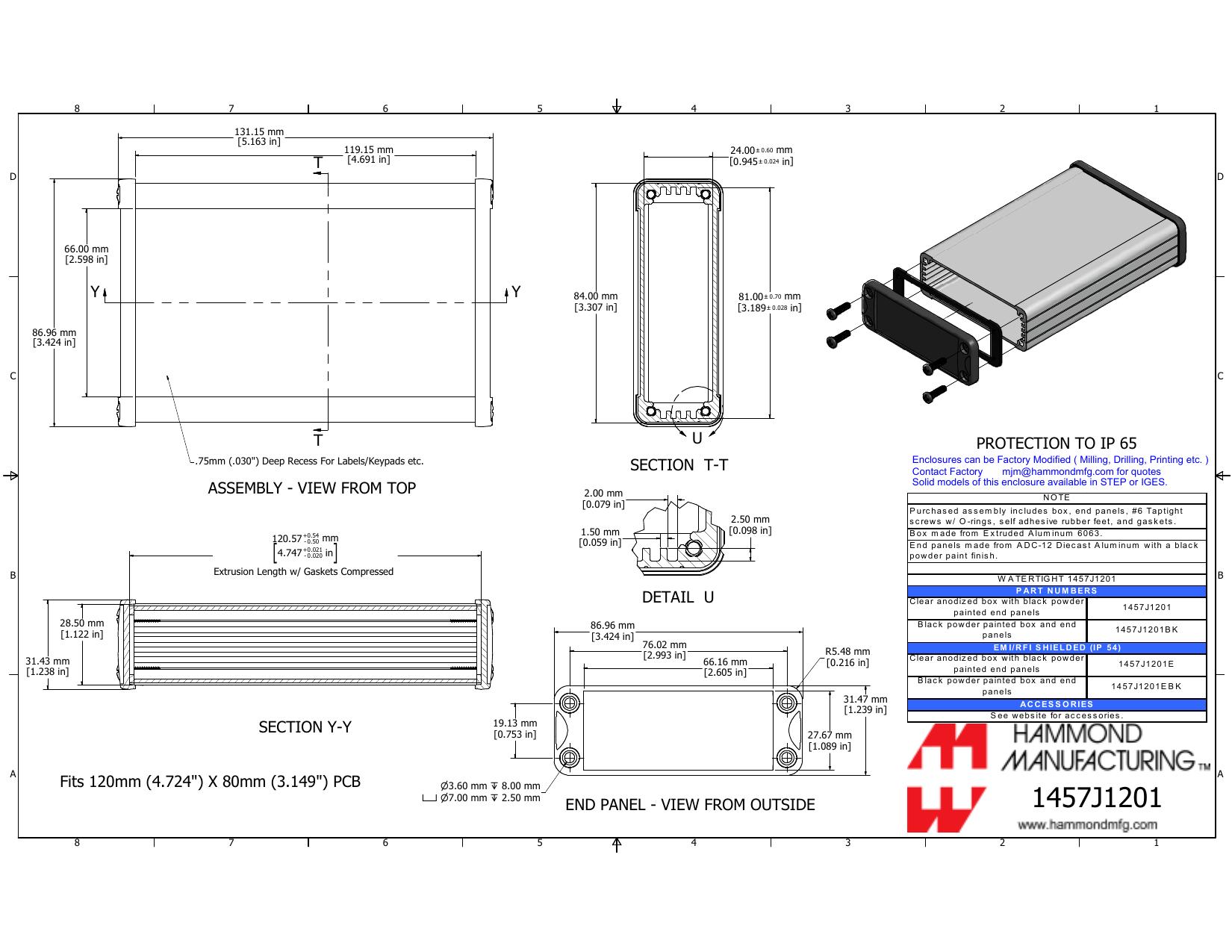

The Hammond 1457J1201 Enclosures Boxes Racks datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: HAMMOND 1457J1201 Enclosure, Watertight, Extruded, EMI / RFI, Anodised, IP54, PCB Box, 31.47 mm, 86.96 mm, 131.15 mm. Key parameters include Body Material: Aluminium, Color: Black, Natural, White, Clear, Depth: 120mm, Height: 1.237inch, and Length: 5.163inch. 1457J1201 is manufactured by Hammond as part of their Enclosures Boxes Racks product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Hammond
- Category
- Enclosures Boxes Racks
Ask AI Assistant
Ask questions about 1457J1201 specifications
Click to ask a quick question:
Parameters
| Body Material | Aluminium |
| Color | Black, Natural, White, Clear |
| Depth | 120mm |
| Height | 1.237inch |
| Length | 5.163inch |
| Material | Aluminium, Metal |
| Mount | External |
| Package/Case | 120 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Series | 1457 |
| Thickness | 0.06inch |
| Weight | 1.102lb |
| Width | 3.424inch |
