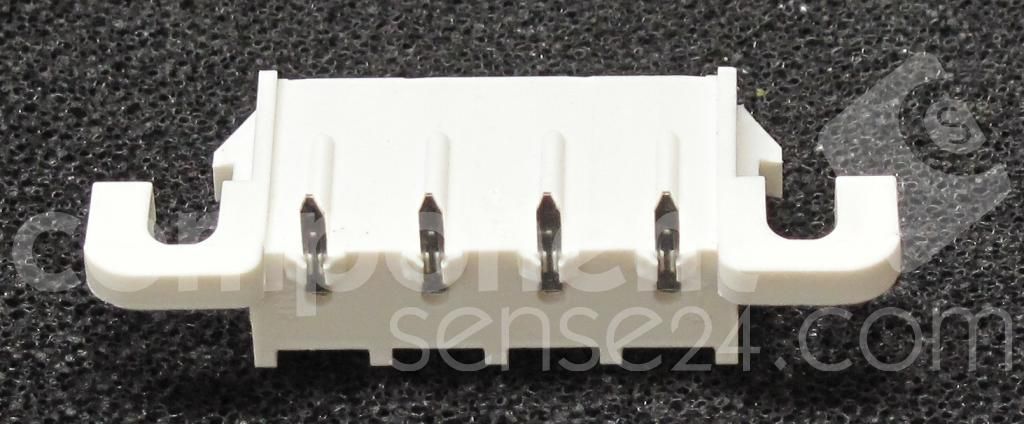

The TE Connectivity 13509440 Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 4 Pos Power Header, 6.35mm Pitch, Solder RA, 19A, 600V. Key parameters include Approvals: CSA, Circuit Application: Power, Color: Beige, Connector System: Wire-to-Board, and Contact Current Rating: 12A. 13509440 is manufactured by TE Connectivity as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer: TE Connectivity
Category: Uncategorized

Ask AI Assistant

Ask questions about 13509440 specifications

AI Powered

Click to ask a quick question:

Parameters

Approvals	CSA
Circuit Application	Power
Color	Beige
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Material	Bronze
Contact Plating	Tin
Contact Retention	No (Without)
Current Rating	19A
Depth	17.27mm
Flammability Rating	UL94 V-0
Height	9.14mm
Length	26.67mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Max Voltage Rating (AC)	600V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	4
Number of Ports	1
Number of Positions	4
Number of Power Positions	4
Number of Rows	1
Orientation	Right Angle
Package Quantity	140
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mounting Orientation	Right Angle
PCB Mount Retention	With
PCB Thickness	0.062mm
Pitch	6.35mm
RoHS	Compliant
Sealable	No (Without)
Series	Universal MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
VDE Tested	Yes
Voltage Rating	600V
Width	17.27mm
