1240900000
Ethernet Switch 8-Port 100Mbps
Similar Components
1240880000
5-Port DIN Rail Managed Switch, 48V, IP30, -10°C to 60°C
8953780000
Network switch, IP 20
8961220000
Network switch, IP 20
8962290000
Network switch, IP 20
8962280000
Network switch, IP 20
1345270000
Ethernet Router 10Mbps/100Mbps/1000Mbps 24VDC
About 1240900000

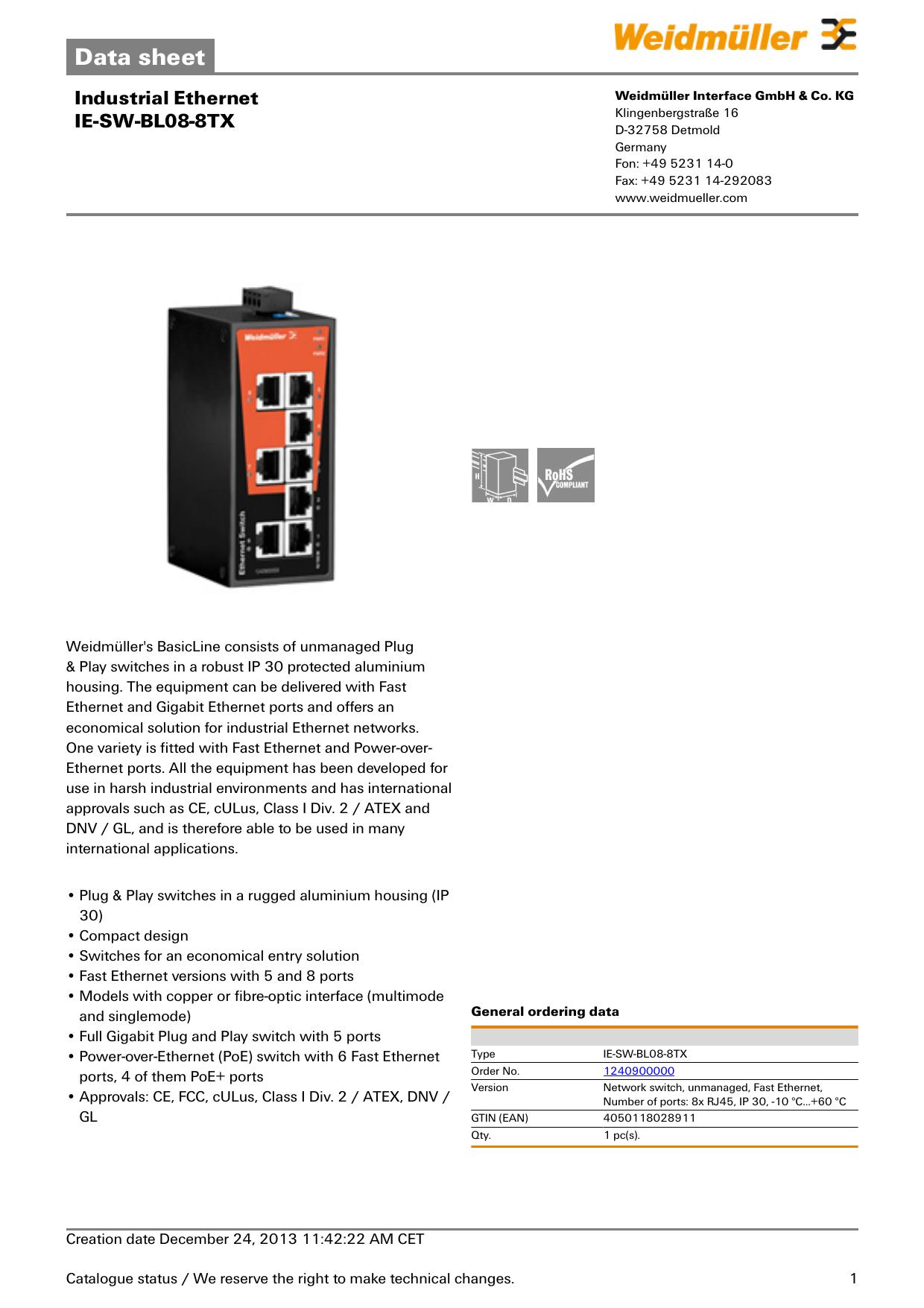

The Weidmuller 1240900000 Networking datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Ethernet Switch 8-Port 100Mbps. Key parameters include Approvals: CE, cULus, Depth: 70mm, Height: 115mm, Max Operating Temperature: 60°C, and Max Supply Voltage: 48V. 1240900000 is manufactured by Weidmuller as part of their Networking product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Weidmuller
- Category
- Networking
Ask AI Assistant
Ask questions about 1240900000 specifications
Click to ask a quick question:
Parameters
| Approvals | CE, cULus |
| Depth | 70mm |
| Height | 115mm |
| Max Operating Temperature | 60°C |
| Max Supply Voltage | 48V |
| Min Operating Temperature | -10°C |
| Mount | DIN Rail |
| Number of Ports | 8 |
| Package Quantity | 1 |
| Ratings | IP30 |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| Weight | 275g |
| Width | 50mm |
