120-904
General Purpose Enclosure, Grey, IP66, 120°C, -35°C, Wall Mount, 3.54inch Depth, 4.33inch Length, 4.09inch Width, 3-Pack
Similar Components
101-503-91
Enclosure; Box-Lid; Desktop; ABS; Gray; 3.31x3.23x3.35 In; IP67; Clear Cover; TG Series
111-001
Enclosure; Box-Lid; Polystyrene; Gray; 2.56x2.56x2.24 In; IP66; NEMA 12K; TK Series
111-012
Enclosure; Box-Lid; Polystyrene; Gray; 14.21x10x4.37 In; IP66; NEMA 12K; TK Series
105-409
Junction Box; Wallmount; Polystyrene; Gray; 5.12x3.7x2.24 In; IP66; NEMA 4X; TK Series
111-007
Enclosure; Box-Lid; Polystyrene; Gray; 7.17x7.09x3.54 In; IP66; NEMA 12K; TK Series
100-908-01
Enclosure; Box-Lid; Desktop; ABS; Gray; 7.95x4.8x3.54 In; NEMA 4X; IP67; TG Series
About 120-904

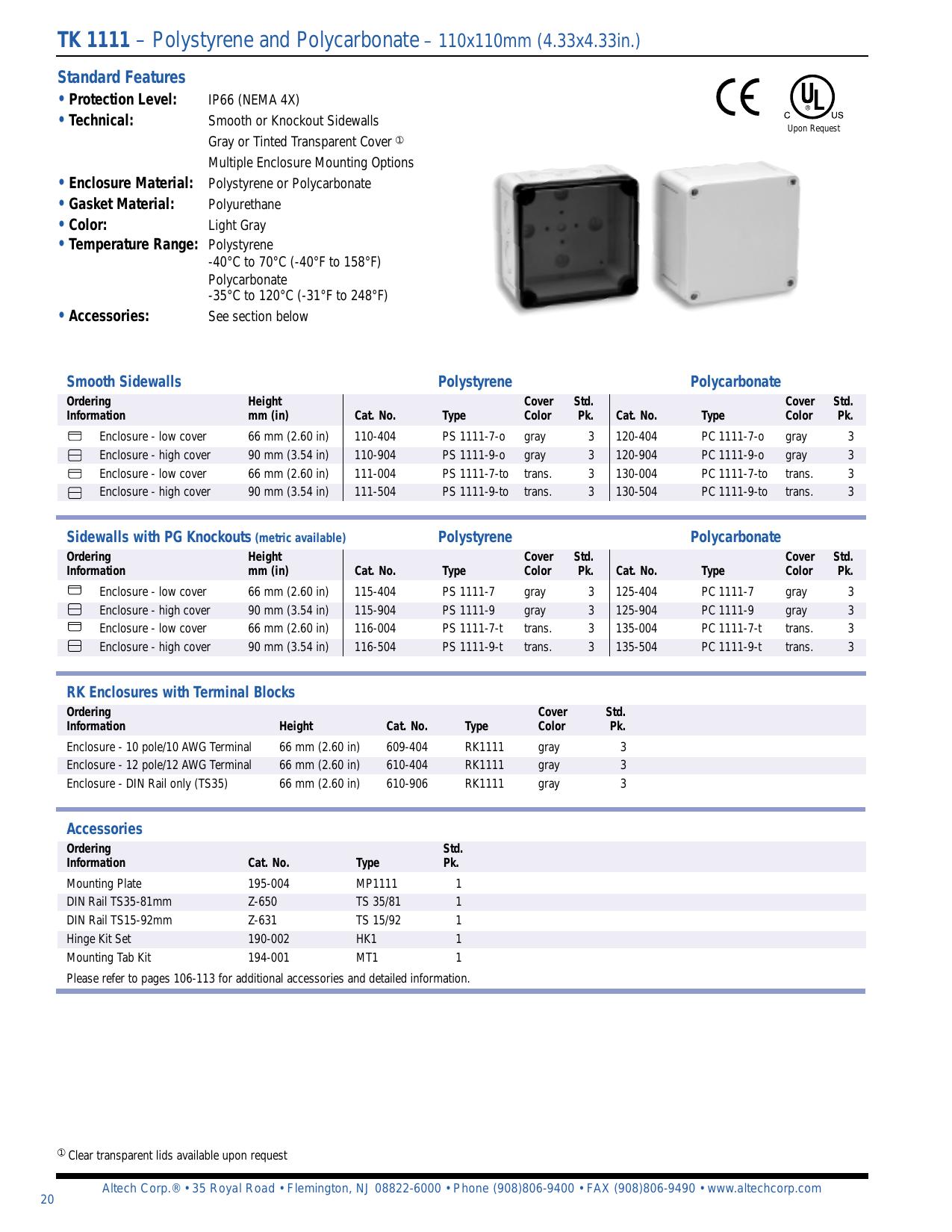

The Altech 120-904 Enclosures Boxes Racks datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: General Purpose Enclosure, Grey, IP66, 120°C, -35°C, Wall Mount, 3.54inch Depth, 4.33inch Length, 4.09inch Width, 3-Pack. Key parameters include Approvals: CE, cULus, Color: Grey, Depth: 3.54inch, Flammability Rating: UL94 V-2, and Lead Free: Lead Free. 120-904 is manufactured by Altech as part of their Enclosures Boxes Racks product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Altech
- Category
- Enclosures Boxes Racks
Ask AI Assistant
Ask questions about 120-904 specifications
Click to ask a quick question:
Parameters
| Approvals | CE, cULus |
| Color | Grey |
| Depth | 3.54inch |
| Flammability Rating | UL94 V-2 |
| Lead Free | Lead Free |
| Length | 4.33inch |
| Material | Plastic, Polycarbonate, PC |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -35°C |
| Mount | Wall |
| Package Quantity | 3 |
| Packaging | Bulk |
| Ratings | IP66 |
| RoHS | Compliant |
| Series | TK |
| Width | 4.09inch |
