0LEB0AJSX
In-Line Watertight Fuse Holder
Similar Components
80813000440
Littelfuse's 80813000440 is a radial fuse with a current rating of 3A and a DC rated voltage of 350V. It is designed to operate within a temperature range of -65°C to 125°C. The fuse has a radial package with a termination of the same type and is available in a bulk packaging quantity of 1000. It meets the requirements of cURus and PSE approvals and is RoHS compliant.
30301250421
The TR3 303 fuse is a radial through hole fuse with a current rating of 125mA and a voltage rating of 125V AC. It has a maximum operating temperature of 70°C and a minimum operating temperature of -25°C. The fuse is lead free and has a flammability rating of UL94 V-0. It is approved by UL and CSA and is packaged in bulk quantities of 300.
SMBJ24CA
Bidirectional TVS Diode, 600W peak pulse power, 24V DC rated voltage, and 26.7V reverse breakdown voltage. Features a 38.9V clamping voltage and 15.5A peak pulse current. This surface mount component, housed in a DO-214AA package, offers 1uA leakage current and operates across a -65°C to 150°C temperature range. RoHS compliant and lead-free.
SMCJ20CA
Bidirectional TVS Diode for surge suppression. Features a 20V DC rated voltage and 22.2V minimum breakdown voltage. Offers a 32.4V clamping voltage and 1.5kW peak pulse power. Packaged in a DO-214AB surface mount case, this component operates from -55°C to 150°C with a 46.3A peak pulse current capability.
37400630000
The TR5 374 fuse is a thermoplastic radial fuse with a current rating of 63mA and a voltage rating of 250V. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The fuse is lead free and RoHS compliant, with a flammability rating of UL94 V-0. It is available in a package quantity of 1000 and is packaged in tape and reel. The fuse has a power dissipation of 50mW and is approved by UL and CSA.
64700001003
FUSE BLOCK CART 250V 6.3A PCB
About 0LEB0AJSX

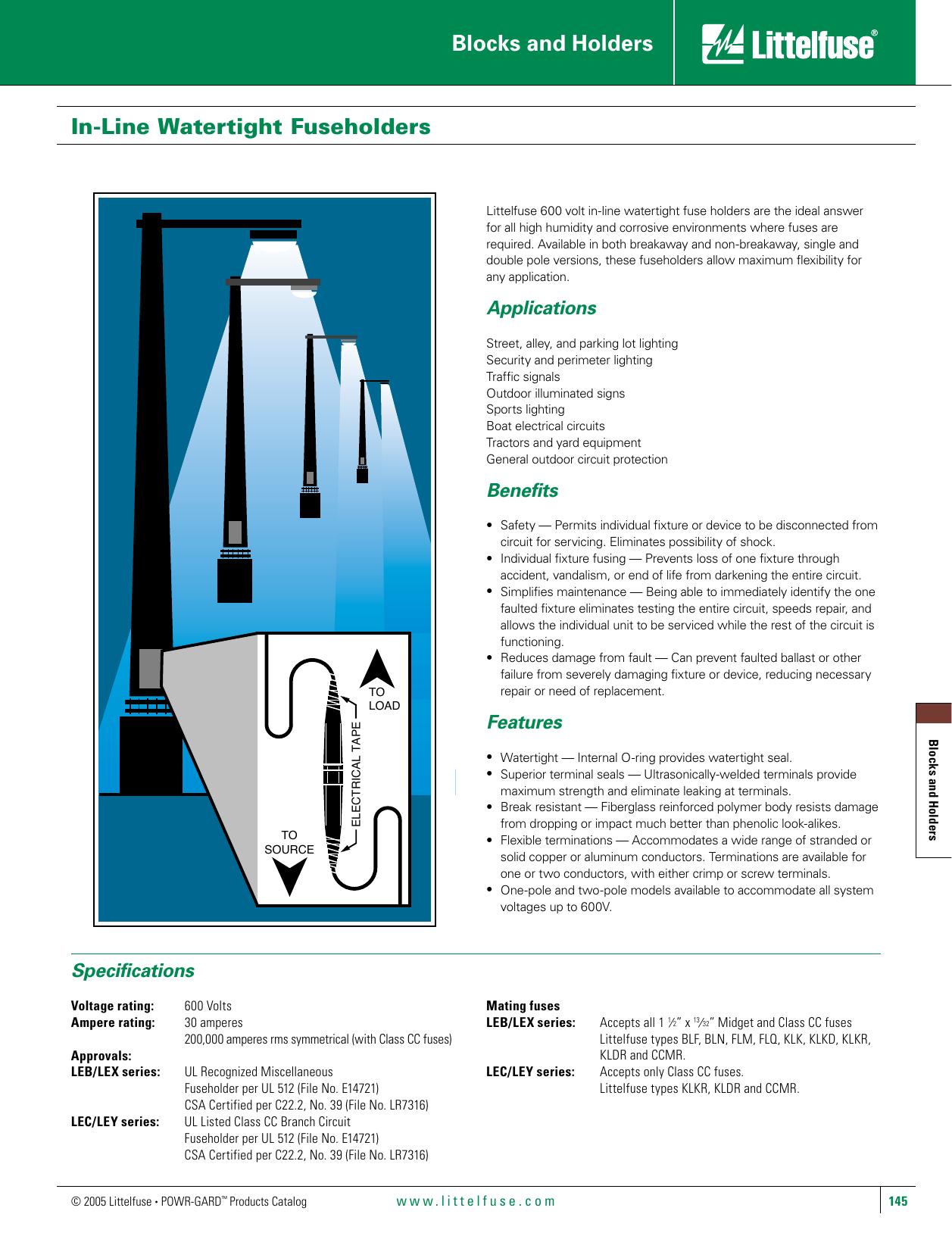

The Littelfuse 0LEB0AJSX Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: In-Line Watertight Fuse Holder. Key parameters include Color: Black, Contact Material: Copper, Current Rating: 30A, DC Rated Voltage: 600V, and Fuse Size: 0.394 Dia x 1.496 L (10mm x 38mm). 0LEB0AJSX is manufactured by Littelfuse as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Littelfuse
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 0LEB0AJSX specifications
Click to ask a quick question:
Parameters
| Color | Black |
| Contact Material | Copper |
| Current Rating | 30A |
| DC Rated Voltage | 600V |
| Fuse Size | 0.394 Dia x 1.496 L (10mm x 38mm) |
| Illumination Type | Illuminated |
| Mount | Free Hanging |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 10 |
| RoHS | Compliant |
| Series | LEB |
| Termination | Crimp |
| Voltage | 600V |
| Voltage Rating | 600V |
