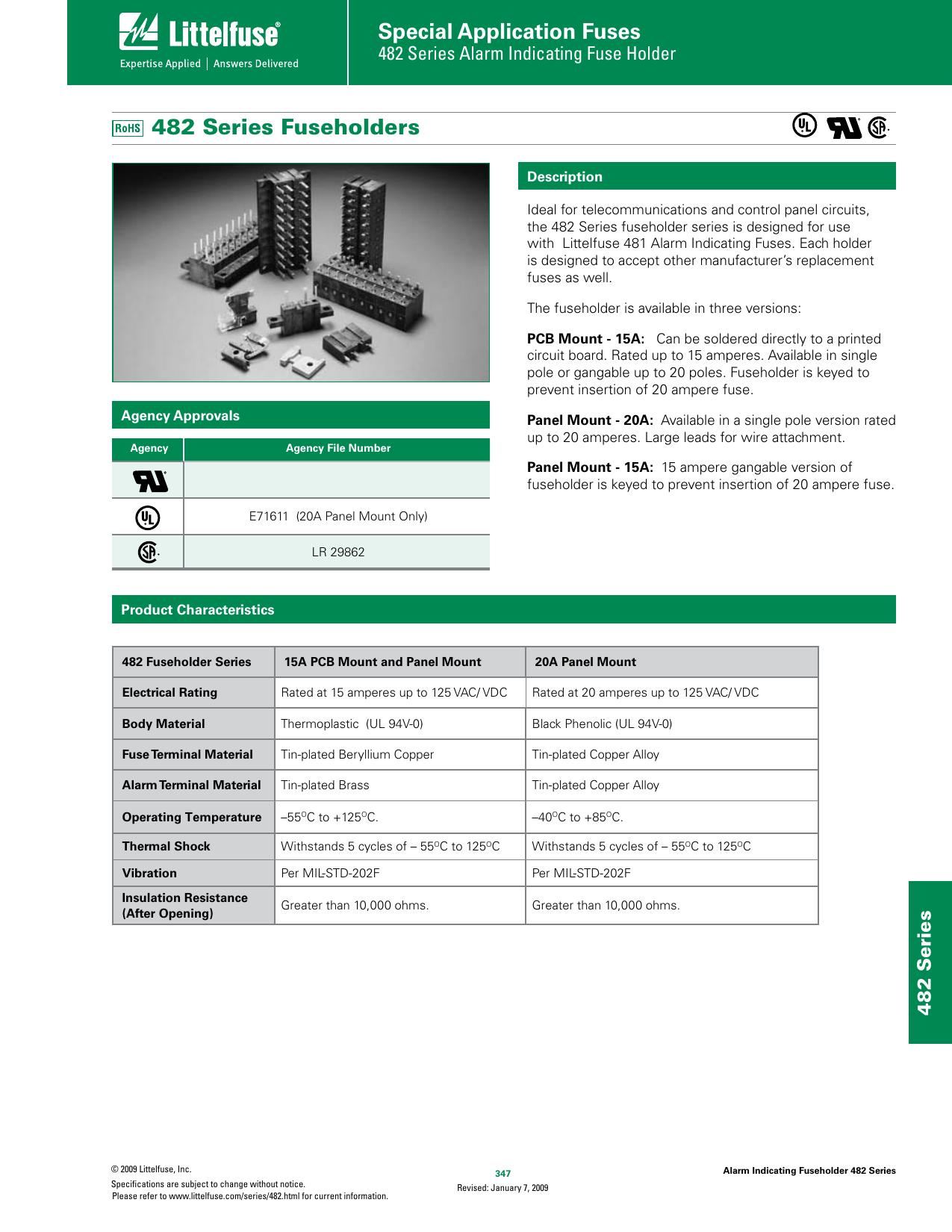

The Littelfuse 04820004ZXP Fuses Fuse Holders datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 15A 125V 4-Pole Fuse Holder, Panel Mount, Illuminated, PC Pin. Key parameters include Color: Black, Contact Material: Copper, Contact Plating: Tin, Current Rating: 15A, and DC Rated Voltage: 125V. 04820004ZXP is manufactured by Littelfuse as part of their Fuses Fuse Holders product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer: Littelfuse
Category: Fuses Fuse Holders

Ask AI Assistant

Ask questions about 04820004ZXP specifications

AI Powered

Click to ask a quick question:

Parameters

Color	Black
Contact Material	Copper
Contact Plating	Tin
Current Rating	15A
DC Rated Voltage	125V
Flammability Rating	UL94 V-0
Fuse Current	15A
Fuse Size	0.665 L x 0.315 W x 0.772 H (16.9mm x 8mm x 19.6mm)
Height	15.8mm
Illumination Type	Illuminated
Lead Free	Lead Free
Length	21.3mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Panel
Number of Circuits	4
Number of Poles	4
Package/Case	482
Package Quantity	20
Packaging	Bulk
Reach SVHC Compliant	No
RoHS	Compliant
RoHS Compliant	Yes
Series	482
Termination	PC Pin
Voltage	125V
Voltage Rating	125V
Voltage Rating (AC)	125V
